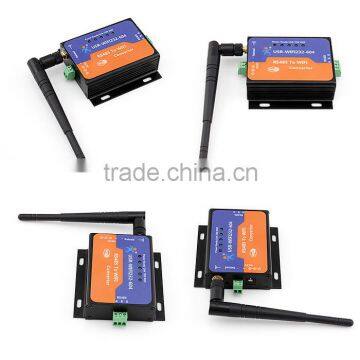

USR-WIFI232-604 High Performance Serial Wifi Converter RS485 to Wireless Server

Introduction

USR-WIFI232-604 is used to transmit data between RS485 and WIFI TCPIP transparently. User can update the product to WIFI control without knowing the WIFI and TCPIP detail. All the converting work is done by the module. For users, the RS485 side is only as a serial device,the WIFI side is TCPIP Socket data. User can setup the work detail by simple settings which can setup via built-in webpages or RS485 port. The setup only needs do once, then it will save the setting forever.

Feature

• Support IEEE802.11b/g/n wireless standards
• Support TCP/IP/UDP network protocols
• Support RS485 data interface
• Support work as STA/AP/AP+STA mode
• Support router/bridge mode networking
• Support external antenna
• Support transparent transmission mode
• Support AT+ instruction set for configuration
• Support friendly web configuration page
• Support palmodic signal
• Single 5-9V power supply
• Small Size: 84 x 84x25mm
• FCC/CE/RoHS/TELEC certificated

Parameter

• Input Voltage: DC 5 ~ 9 V
• Current: 170 ~ 350 mA @ 5V
• Size: 84 x 84 x 25 mm
• Operating Temp: -40 ~ 85°C
• Storage Temp: -40 ~ 125°C, 5 ~ 95% RH (no condensation)
• Interface: RS-485
• Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, Httpd client

Application

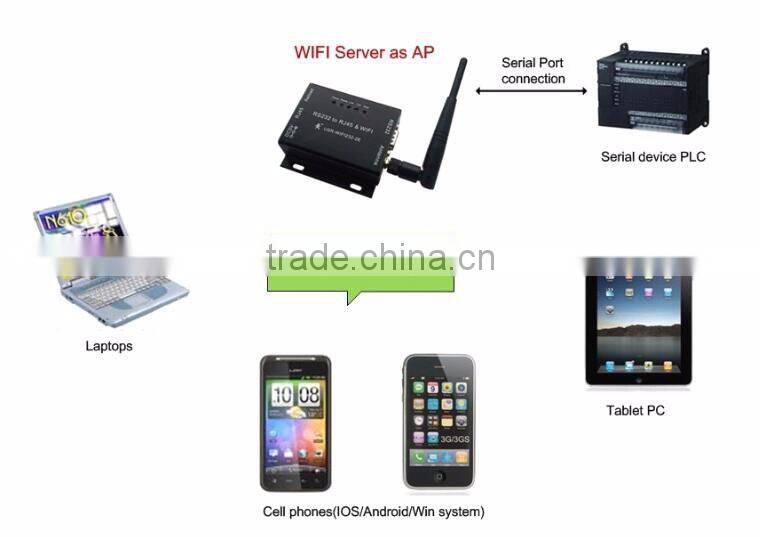

1.Application of AP

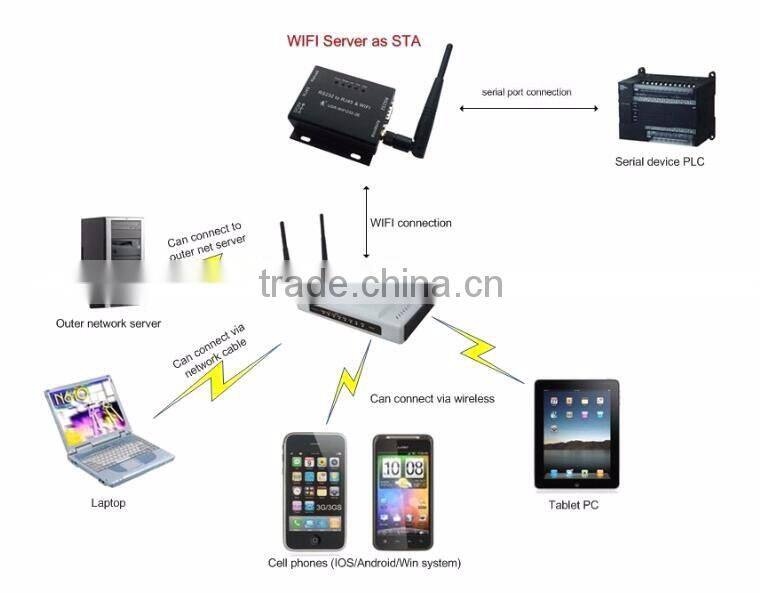

2.Application of STA

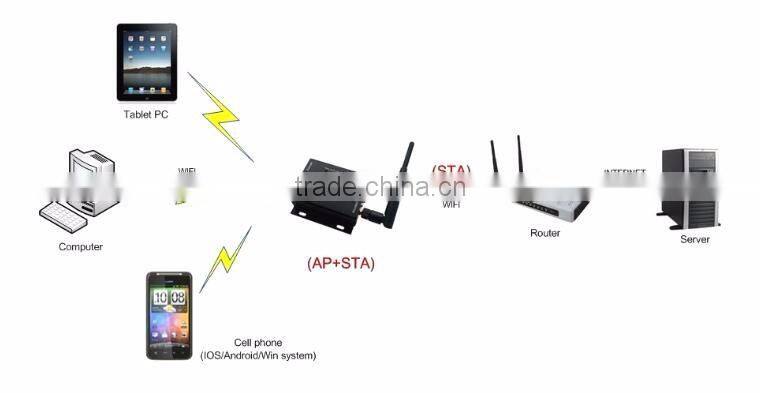

3.Application of AP+STA

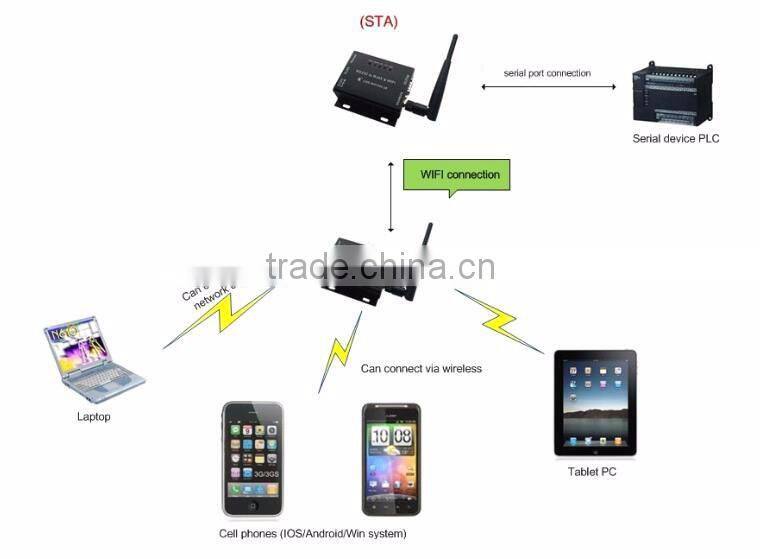

4.Application of one AP and one STA
