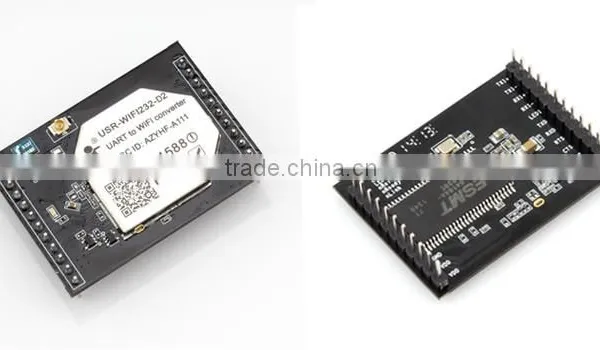

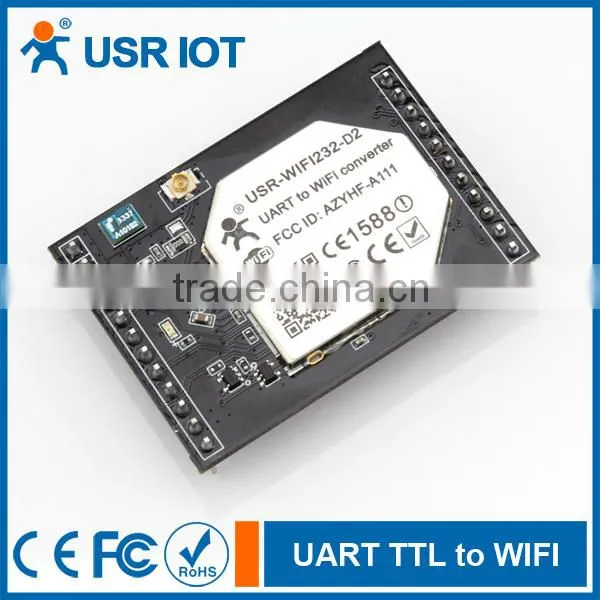

USR-WIFI232-D2 Serial UART TTL to Wifi/Wireless Module Converter
US$ 15.60 - 15.60
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
USR
Model Number:
USR-WIFI232-D2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
USR-WIFI232-A Serial Wifi Module UART to Wireless ConverterUS$ 15.60 - 15.60MOQ: 1 Piece -
USR-WIFI232-A UART to Wireless 802.11 Converter Wifi ModuleUS$ 15.60 - 15.60MOQ: 1 Piece
-
USR-WIFI232-B Wifi Module GPIO UART to Wireless 802.11 Converter Wifi Module Quality ChoiceUS$ 15.60 - 15.60MOQ: 1 Piece
-
USR-WIFI232-Ca UART to Wireless 802.11 Converter Wifi ModuleUS$ 15.60 - 15.60MOQ: 1 Unit
-
USR-WIFI232-A UART TTL to Wifi 802.11 Module Serial to Wifi Converter Support IEEE802.11b/g/n Wireless StandardsUS$ 15.60 - 15.60MOQ: 1 Piece
Place of Origin
Shandong, China
Brand Name
USR
Model Number
USR-WIFI232-D2
Product Description
Introduction
USR-WIFI232-D2 Wi-Fi Module is an embedded 802.11 b/g/n Wi-Fi module, which supports serial to LAN/Wi-Fi, LAN to Wi-Fi or LAN to LAN transmission. The module can realize bidirectional transparent data transmission between COM and TCP/IP network interface.
Feature
- Support IEEE802.11b/g/n wireless standards
- Support TCP/IP/UDP network protocols
- Support UART/GPIO/Ethernet data interface
- Support work as STA/AP/AP+STA mode
- Support router/bridge mode networking
- Support external/internal antenna
- Support transparent transmission mode
- Support AT+ instruction set for configuration
- Support friendly web configuration page
- Support palmodic signal
- Support UART auto-frame function
- Single +3.3V power supply
- Small Size: 32 x 45 x 8 mm
- FCC/CE/RoHS/TELEC certificated
Parameter
Category |
Parameter |
Value |
| Wireless Parameters | Certification |
FCC/CE/ROHS/TELEC |
Wireless Standard |
802.11 b/g/n | |
Frequency Range |
2.412GHz-2.484GHz | |
Transmit Power |
802.11b: +20dBm (Max.) | |
| 802.11g: +18dBm (Max.) | ||
| 802.11n: +15dBm (Max.) | ||
| Configurable | ||
Receive Sensitivity |
802.11b: -89 dBm | |
| 802.11g: -81dBm | ||
| 802.11n: -71dBm | ||
Antenna |
External: I-PEX connector Internal: on-board antenna |
|
| Hardware Parameters | Data Interface |
UART: 300bps~460800bps |
| Ethernet: 100Mpbs | ||
| GPIOs | ||
Operating Voltage |
3.3V(+/-5%) | |
Operating Current |
AP: 226mA (average), 346mA (peak) STA: 218mA (average), 320mA (peak) |
|
Operating Temp. |
-40°C~ 85°C | |
Storage Temp. |
-40°C- 125°C | |
Size |
32mm x 45mm x8mm | |
| Software Parameters | Wireless Network Type |
Station/AP Mode/AP+STA |
Security Mechanism |
WEP/WPA-PSK/WPA2-PSK | |
Encryption Type |
WEP64/WEP128/TKIP/AES | |
Work Mode |
Transparent Transmission, serial command | |
Setting Command |
AT+instruction set | |
Network Protocol |
TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP | |
Max. TCP Connection |
32 | |
User Configuration |
Web Server+AT command config. |

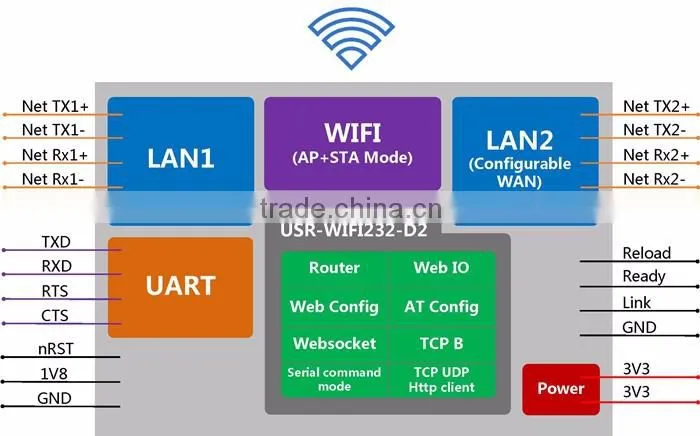

Structure

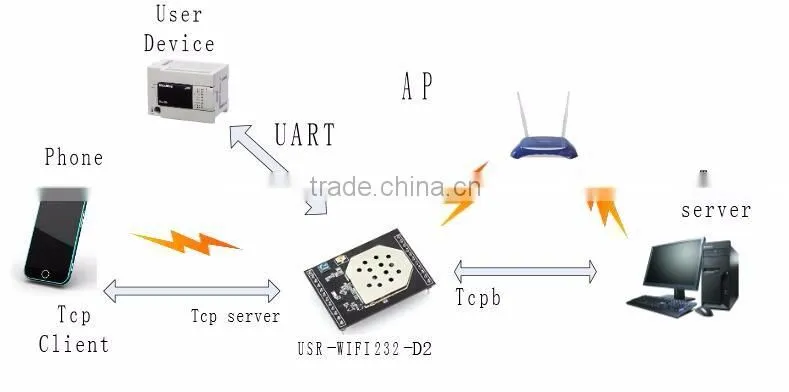

Networking Mode

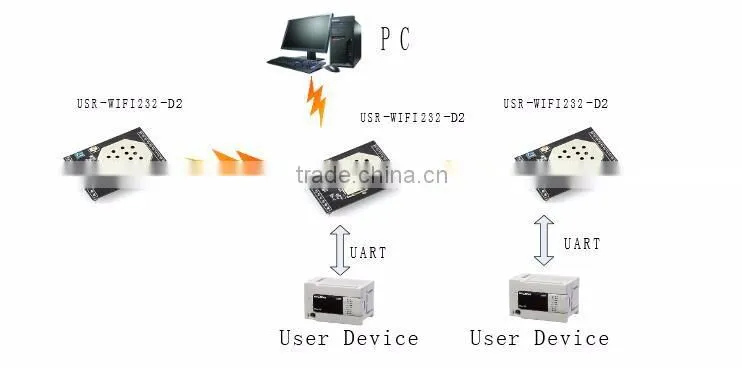

1.AP Mode
2.STA Mode
3.AP+STA Mode
