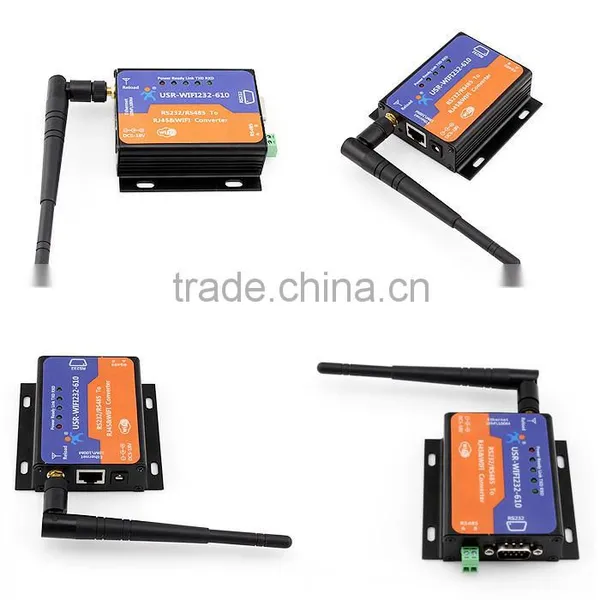

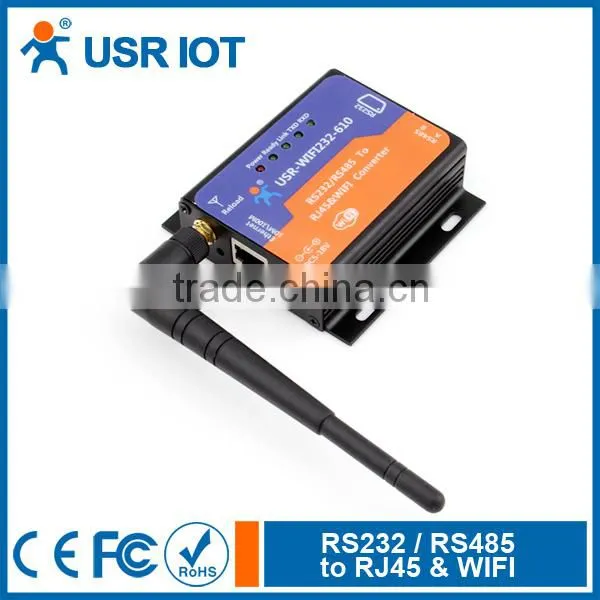

USR-WIFI232-610 Serial RS232/RS485 to Wifi 802.11b/g/n Server
US$ 59.60 - 59.60
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
USR
Model Number:
USR-WIFI232-610
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
USR-WIFI232-604 Serial RS485 to Wifi 802.11b/g/n ConverterUS$ 39.60 - 39.60MOQ: 1 Unit -
USR-WIFI232-T Serial TTL to Wifi Module Low Price and Tiny SizeUS$ 7.98 - 7.98MOQ: 1 Piece
-
USR-WIFI232-Sa Low Power Consumption Wifi Module UART TTL to Wireless ConverterUS$ 7.98 - 7.98MOQ: 1 Piece
-
USR-WIFI232-200 Serial RS232 to Wireless ServerUS$ 31.80 - 31.80MOQ: 1 Unit
-
USR-WIFI232-Sa WPS Smart Link Wifi Module UART TTL to WirelessUS$ 7.98 - 7.98MOQ: 1 Piece
Place of Origin
Shandong, China
Brand Name
USR
Model Number
USR-WIFI232-610
Product Description
Introduction
USR-WIFI232-610 RS232/RS485 to WIFI & RJ45 serial server is a wireless networking server, which is used for project of RS232/RS485 serial equipment to WIFI or Ethernet networking. It can be controlled by mobile phone or laptops, also can be connected to the remote server.
Feature
- Support hardware flow control (RTS/CTS) RS232 interface, male mouth(needle) consistent with computer pin definition
- DC5~18V wide voltage input, can provide 2A current MP1482DS DCDC power supply chip, keep system reliability.
- RS232 RS485 automatic switching
- RJ45 network connection, support wired Ethernet transmission
- Reload button, do not worry incorrect settings (in working status, press the button 3-5s then it load to default settings and automatic restart)
- Rich status indicator light: Power Ready Link RXD TXD
- Support IEEE802.11b/g/n wireless standards
- Support TCP/IP/UDP network protocols
- Support RS232 RS384 data interface
- Support work as STA/AP/AP+STA mode
- Support router/bridge Mode networking
- Support external antenna
- Support transparent transmission mode
- Support AT+ instruction set for configuration
- Support friendly web configuration page
- Support palmodic signal
- Single 5-18V power supply
- Small size: 84 x 84x25mm
- FCC/CE/RoHS/TELEC certificated
Parameter
- Input Voltage: DC 5 ~ 18 V
- Current: 140 ~ 350 mA @ 5V
- Size: 84 x 84 x 25 mm
- Operating Temp: -40 ~ 85°C
- Storage Temp: -40 ~ 125°C, 5 ~ 95% RH (no condensation)
- Interface: RS-232, RS-485
- Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, Httpd client
Application
1.Application of AP
2.Application of STA
3.Application of AP+STA
4.Wired and Wireless Application
5.Application of one AP and one STA
Certificate
