Specifications
frp fiberglass aquaculture tank for sale1.Various size
2.Top,bottom&side opening
3.With distributors

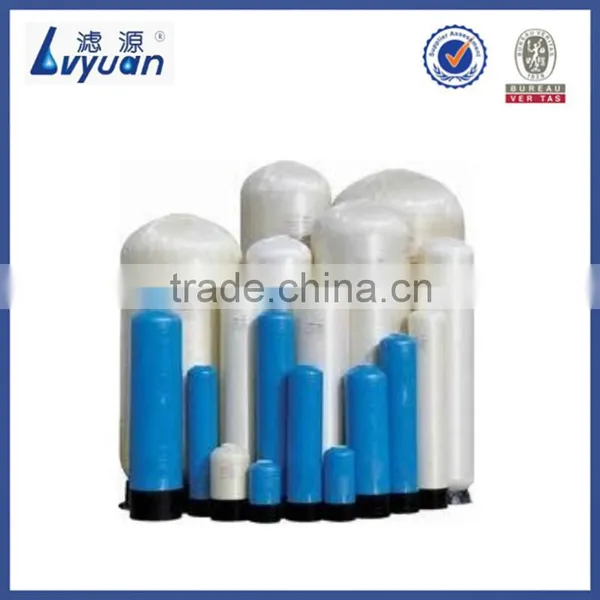

frp fiberglass aquaculture tank for sale
Diameter dimension: From 8" to 83" (200mm to 2100mm)
Specification:
A)Material
a)inner shell – Polyethylene (PE) seamless one-piece tank liner
b)Outer shell – Continuous strands of fiber-glass with high strength epoxy resin
c)Bottom base – FRP reinforced tripod base
d)Opening – 4” precision injected model with threaded opening for 21 ", 24", 30 ", 36" diameter tanks
e)Opening – 6 "Aluminum flange (anti-corrosion coating) opening for 36”, 42” ,48”, 63” diameter tanks
B) Parameter
a)Working Pressure:≤1.0MPa(150PSI)
b)Working Temperature :≤49°C
c)Maximum Vacuum :127mmHg(5"Hg).
d)Maximum Temperature :40C (104F)
e)Certificates:CE ;NSF ; ISO9001 etc.
f) Media : water
g)Warranty: 3 years
C)Application
All feed water and waste water treatment application, included multi-media filter and softener.
Model No. | Specification (mm) | Top Opening | Bottom Opening | Recommended flux (T/H) |
818 | 200×450 | 2.5"Thread | N/A | 0.2~0.3 |
835 | 200×890 | 2.5"Thread | N/A | 0.5 |
844 | 200×1100 | 2.5"Thread | N/A | 0.5 |
1035 | 250×890 | 2.5"Thread | N/A | 0.5 |
1054 | 250×1450 | 2.5"Thread | N/A | 0.5~1 |
1252 | 300×1400 | 2.5"Thread | N/A | 0.5~2 |
1265 | 300×1650 | 2.5"Thread | N/A | 2.0~2.5 |
1454 | 350×1450 | 2.5"Thread | N/A | 2.5~3.0 |
1465 | 350×1650 | 2.5"Thread | N/A | 2.5~3.5 |
1665 | 400×1650 | 2.5"Thread | N/A | 2.0~4.0 |
1665 | 460×1650 | 4"Thread | N/A | 2.0-4.0 |
2069 | 500×1750 | 4"Thread | N/A | 5-6 |
2075 | 500×1900 | 4"Thread | 4"Thread | 5-6 |
2475 | 600×1900 | 4"Thread | 4"Thread | 6-8 |
3075 | 750×1900 | 4"Thread | 4"Thread | 8-10 |
3675 | 900×1900 | 4"Thread | 4"Thread | 13-15 |
4075 | 1000×1950 | 4"Thread | 4"Thread | 15-20 |
4087 | 1000×2200 | 4"Thread | 4"Thread | 25-30 |
4890 | 1200×2500 | 4"Thread | 4"Thread | 25-35 |
8096 | 2000×2600 | 6"Flange | 6"Flange | 80-100 |
Company Information:
Guangzhou Lvyuan Water Purification Equipment Co.,Ltd. is a comprehensive enterprise, specializing in water treatment technology development, equipment manufacturing, installation, technical support and after-sales service.
Our main products are including all kinds of domestic&industrial filter cartridges, RO&UF water purifier and equipment, FRP tank, water filter housing, stainless steel cartridge filter housing, central water purifier, water softeners ect.
It also introduces the world most advanced water treatment technology and arranges for a group of
professional engineers to handle all kinds of water treatment such as project design, manufacturing,
installation, training, and testing. Our company takes the technology as the forerunner, the quality as
the prerequisite. The products win excellent satisfaction of our clients by its advanced technology,
quality assuranced, a high degree of automation and convenient installation.
