Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Diesel Engine Water Pump Set

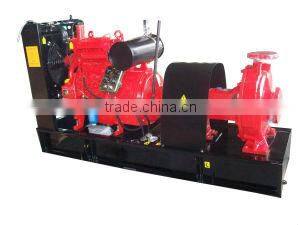

Diesel Engine Water Pump Set
US$ 1,800 - 13,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SUPERMALY
Model Number:
SPW
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Pressure Water Pump Powered by Diesel EngineUS$ 1,800 - 13,500MOQ: 1 Set -
CE Approved High Pressure Water PumpUS$ 1,800 - 13,500MOQ: 1 Set
-
High Pressure Water Pump Powered by DieselUS$ 1,800 - 13,500MOQ: 1 Set
-
CE Water Pump Set by Diesel !!good QualityUS$ 1,800 - 13,500MOQ: 1 Set
-
High Pressure Water Pump Powered With Cheap PriceUS$ 1,800 - 13,500MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
SUPERMALY
Model Number
SPW
Theory
Axial Flow Pump
Structure
Single-stage Pump
Usage
Water
Power
Other, 4kw-200kw
Standard or Nonstandard
Standard
Fuel
Diesel
Pressure
High Pressure
Application
Fire
Specifications
1)diesel engine water pump set2)high pressure
3)low vibration
4)long working life
5)CE,ISO,SGS,SONCAP,OEM
Diesel Engine Water Pump Set
Diesel water pump specification:
Usage: Farm irrigation,fire fighting,industrial water supply system and sewage project etc.
Treated Water: Fresh water,River water
Outflow:30-5000m³/h
Head Lift:7-342m
Example one--30DPR01 (Q=240m3/h,H=29m)
Diesel engine of diesl water pump parameters:
| Model | K4100D |
| Rated output/Max output(KW) | 30/33KW |
| Rated speed(r/min) | 1500 |
| Starting method | Electric motor 24V DC |
| Cooling method | Closed water cooling |
| Governing method | Mechanical/Electronic governing(Optional) |
| Intake method | Natural |
| Cylinders | 4 |
| Bore/Stroke | 105/125mm |
| Type | in line,4 stroke, humid liner, direct injection |
Water pump of diesel water pump parameters:
| Model | IS150-125-315 |
| Type | Single grade, single suction,centrifugal |
| Outflow | 240m3/h |
| Head | 29m |
| Shaft power | 23.7kw |
| Inlet diameter | 150mm(6inch) |
| Outlet diameter | 125mm(5inch) |
| Casing material | cast iron |
| Shaft material | cast iron |
| Impeller material | cast iron |
| Sealing method | Stuffing sealing/Mechanical sealing(Optional) |
Control system of diesel water pump(OPTIONAL):
1) ATS/AMF function
2)Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc
3)Display functions with warning ,start and stop
Diesel water pump Standard equipment:
| Diesel engine | 1 set |
| Water pump | 1 set |
| control panel | 1 set |
| Flexible shaft joint | 1 pc |
| Common base with 8hrs fuel tank | 1 set |
| Accessory spare parts | 1 set |
| Technical file | 1 set |
| With affiliated sensors and sensor wires | |
| Inlet/outlet flange,bolt&screws,bottom valve and filters (OPTIONAL) |
diesel water pump Quality Gurantee:1year/1500working hours(the first reach is valid )
