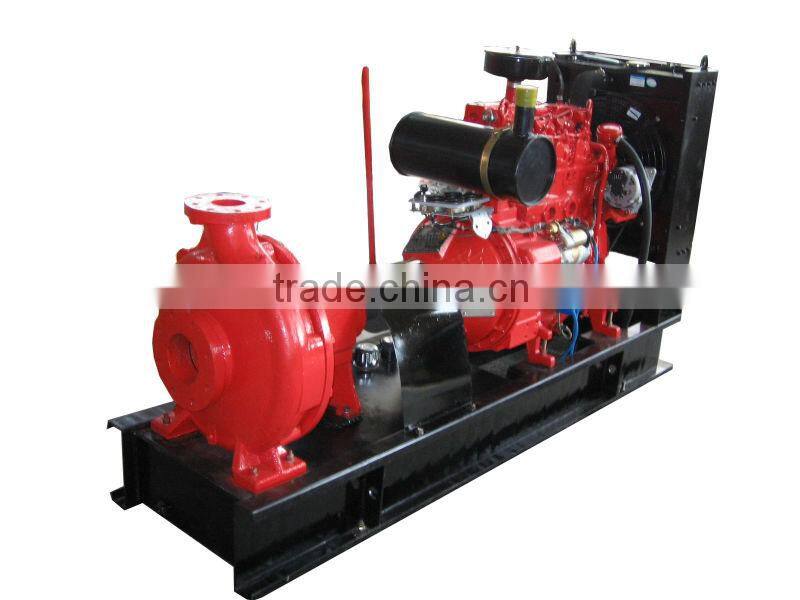

High Pressure Water Pump Powered by Diesel

Name: High Pressure Water Pump Powered by Diesel
Brand: Supermaly
SKU: 109313259
Availability: InStock

US$ 1,800 - 13,500 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Supermaly

Model Number:

SPW

Shandong Supermaly Generating Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Supermaly

Model Number SPW

Theory Axial Flow Pump

Structure Single-stage Pump

Usage Water

Power Other, 4kW-200kW

Standard or Nonstandard Standard

Fuel Diesel

Pressure High Pressure

Application Fire

Specifications

1) water pump
2) high pressure
3) low vibration
4) long working life
5) CE,ISO,SGS,SONCAP,OEM

high pressure water pump powered by diesel

high pressure water pump specification:

Usage: Farm irrigation,fire fighting,industrial water supply system and sewage project etc.

Treated Water: Fresh water,River water

Outflow:30-5000m³/h

Head Lift:7-342m

Diesel engine parameters:

Model	K4100D
Rated output/Max output(KW)	30/33KW
Rated speed(r/min)	1500
Starting method	Electric motor 24V DC
Cooling method	Closed water cooling
Governing method	Mechanical/Electronic governing(Optional)
Intake method	Natural
Cylinders	4
Bore/Stroke	105/125mm
Type	in line,4 stroke, humid liner, direct injection

Water pump parameters:

Model	IS150-125-315
Type	Single grade, single suction,centrifugal
Outflow	240m³/h
Head	29m
Shaft power	23.7kw
Inlet diameter	150mm(6inch)
Outlet diameter	125mm(5inch)
Casing material	cast iron
Shaft material	cast iron
Impeller material	cast iron
Sealing method	Stuffing sealing/Mechanical sealing(Optional)

high pressure water pump Standard equipment:

Diesel engine	1 set
Water pump	1 set
control panel	1 set
Flexible shaft joint	1 pc
Common base with 8hrs fuel tank	1 set
Accessory spare parts	1 set
Technical file	1 set
With affiliated sensors and sensor wires
Inlet/outlet flange,bolt&screws,bottom valve and filters (OPTIONAL)
