CE diesel water pump

Specifications

1)diesel water pump
2)high pressure
3)low vibration
4)long working life
5)CE,ISO,SGS,SONCAP,OEM

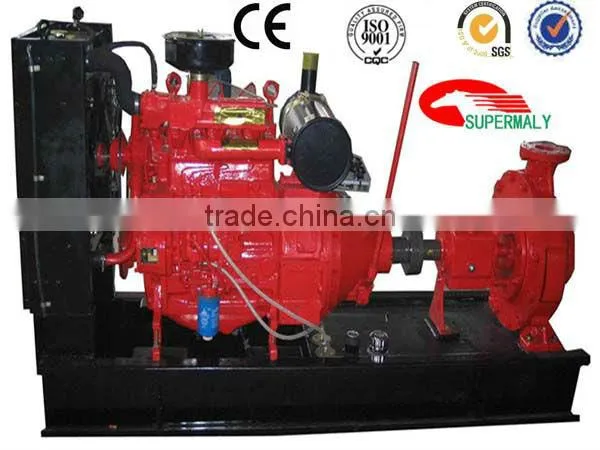

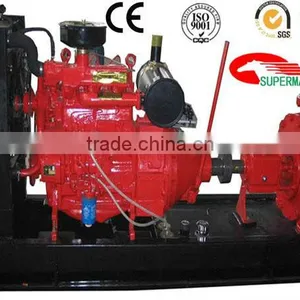

Diesel Water Pump















































Diesel water pump specification:



Usage: Farm irrigation,fire fighting,industrial water supply system and sewage project etc.

Treated Water: Fresh water,River water

Outflow:30-5000m³/h

Head Lift:7-342m



Example one--30DPR01 (Q=240m³/h,H=29m)



































Diesel engine of diesl water pump parameters:



Model	K4100D
Rated output/Max output(KW)	30/33KW
Rated speed(r/min)	1500
Starting method	Electric motor 24V DC
Cooling method	Closed water cooling
Governing method	Mechanical/Electronic governing(Optional)
Intake method	Natural
Cylinders	4
Bore/Stroke	105/125mm
Type	in line,4 stroke, humid liner, direct injection







Water pump of diesel water pump parameters:





Model	IS150-125-315
Type	Single grade, single suction,centrifugal
Outflow	240m3/h
Head	29m
Shaft power	23.7kw
Inlet diameter	150mm(6inch)
Outlet diameter	125mm(5inch)
Casing material	cast iron
Shaft material	cast iron
Impeller material	cast iron
Sealing method	Stuffing sealing/Mechanical sealing(Optional)













Control system of diesel water pump(OPTIONAL):

1) ATS/AMF function

2)Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc

3)Display functions with warning ,start and stop





Diesel water pump Standard equipment:





Diesel engine	1 set
Water pump	1 set
control panel	1 set
Flexible shaft joint	1 pc
Common base with 8hrs fuel tank	1 set
Accessory spare parts	1 set
Technical file	1 set
With affiliated sensors and sensor wires
Inlet/outlet flange,bolt&screws,bottom valve and filters (OPTIONAL)













diesel water pump Quality Gurantee:1year/1500working hours(the first reach is valid )
