QB Series Peripheral Pump Garden Water Pump China Supplier Factory

APPLICATION:

Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous, noncorrosive, non-crystallizable,

chemically neutral and close to water. Such as:

1.  Tank filling

2.  Domestic water supply

3.  Water transfer

4.  Pressure boosting

5.  Irrigation

FEATURES:

1. 100% copper wire, brass impeller and automatic wiring

2. Cold-rolled silicon steel sheet, with high-speed punching, improving the efficiency and precision

3. Demagnetization of stainless steel nuts

4. Anti-rust treatment castings and electrophoresis

5. New testing equipment

6. Certificate: ISO9001, CE, SONCAP, SASO, VOC, EMC,etc

CONSTRUCTION:

Pump Body: Cast Iron/Stainless Steel/Brass
Front Cover: Cast Iron/Cast Iron with brass insert / Aluminum

Impeller: Brass/Aluminum/PPO
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

With thermal overload protector in single phase motor

OPERATION CONDITIONS:

Suction head up to 9M
Liquid temperature up to 60C
Ambient temperature up to 40C
Max.Pressure:10Bar

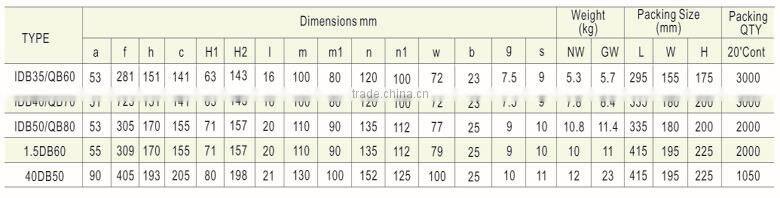

TECHNICAL DATA:

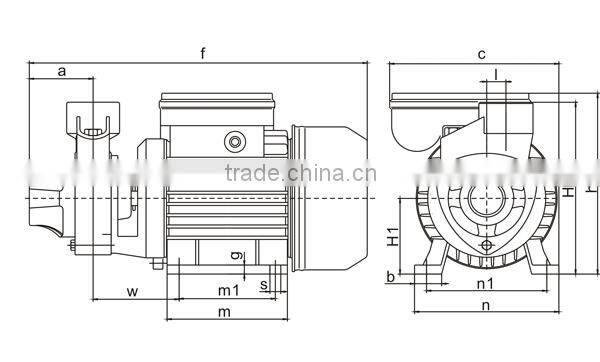

DEMENSIONS:
