CPM Series Micro Single-stage Centrifugal Pump

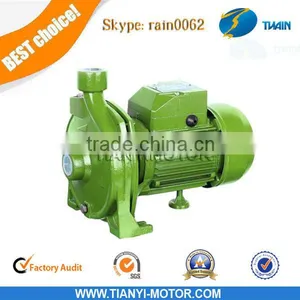

CPM Series Micro Single-stage Centrifugal Pump thumbnail-1
CPM Series Micro Single-stage Centrifugal Pump photo-1
US$ 18 - 35 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Twain
Model Number:
CPM
Contact Supplier Request Quote Chat Now
Fujian Tianyi Motor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Twain
Model Number CPM
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Other, Water, Water Pump
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electric
Pressure High Pressure
Application Other, Pumping Water

Specifications

CPM Series Micro Single-stage Centrifugal Pump
1)Fast delivery
2)OEM service
3)High efficiency
4)1 year warranty

CPM Series Micro Single-stage Centrifugal Pump

1.Product Overview



INTRODUCTION:

The pump is suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.



APPLICATION:

Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous, noncorrosive, non-crystallizable, chemically neutral and close to water. Such as:

1.  Tank filling

2.  Domestic water supply

3.  Water transfer

4.  Pressure boosting

5.  Irrigation



FEATURES:

1. 100% copper wire, brass impeller and automatic wiring

2. Cold-rolled silicon steel sheet, with high-speed punching, improving the efficiency and precision

3. Demagnetization of stainless steel nuts

4. Anti-rust treatment castings and electrophoresis

5. New testing equipment

6. Certificate: ISO9001, CE, SONCAP, SASO, VOC, EMC,etc



CONSTRUCTION:

Pump body: Cast Iron

Housing: Alloy Aluminum

Impeller: Brass/Plastic/SS

Motor: Electric Motor

Shaft: Stainless Steel/Carbon Steel

Insulation : Class B ( Class F if you required)

Protection : IP44/IP54

Cooling: External Ventilation

Mechanical Seal: Carbon/Ceramic/Stainless Steel



OPERATION CONDITIONS:

Suction head up to 9M
Liquid temperature up to 60C
Ambient temperature up to 40C
Max.Pressure:10Bar



TECHNICAL DATA:

model POWER MAX.FLOW
(l/min)		 MAX.HEAD
(m)		 MAX.SUCT
(m)		 INLET/OUTLET
(inch)		 N.W
(kg)		 PACKING
DIMENSION(mm)
(kw) (hp)
CPM130 0.37 0.5 90 22 9 1"x1" 8.9 280x190x240
CPM146 0.55 0.75 100 25 9 1"x1" 12.5 320x200x255
CPM158 0.75 1 120 33 9 1"x1" 14 320x210x270
CPM180 1.1 1.5 130 38 9 1"x1" 20 360x260x325
CPM200 1.5 2 150 42 9 1"x1" 21 360x260x325
