1. methane gas generator superiority
superiority 1. low running cost.
superiority 2. we install the generator on your site.
superiority 3. we supply spare parts during the whole service.
superiority 4. one year warranty.
| Gas gen-set Model | 50HZ, 1500rpm,400/230V, 3P 4W | Rated Current (A) | Gas-Engine | Alternator | ||||
| Rated Power (kW/kVA) | Standby Power (kW/kVA) | Model | Type | Rated Power (kW) | Model | Rated Power (kW/kVA) | ||
| SPT10GF | 10/12.5 | 11/13.75 | 18 | SP2100DT | four stroke, water cooled, wet cylinder liner | 14 | 164C | 10.8 |
| SPT20GF | 20/25 | 22/27.5 | 36 | SP4100DT | 23 | 184EF | 20 | |
| SPT30GF | 30/37.5 | 33/41.25 | 54 | SP4105DT | 38 | 184H | 30 | |
| SPT40GF | 40/50 | 44/55 | 72 | SP6105DT | 60 | 224D | 40 | |
| SPT50GF | 50/62.5 | 55/68.75 | 90 | SP6105DT | 60 | 224E | 50 | |
| SPT70GF | 70/87.5 | 77/96.25 | 126 | SP6135DT | 82 | 224G | 70 | |
| SPT90GF | 90/112.5 | 99/123.75 | 162 | SP6135ADT | 100 | 274D | 90 | |
| SPT120GF | 120/150 | 132/165 | 216 | SP6140ADT | 130 | 274F | 120 | |
| SPT160GF | 160/200 | 176/220 | 288 | SP12V135DT | 175 | 274H | 160 | |
| SPT200GF | 200/250 | 220/275 | 360 | SP12V138DT | 220 | 4C | 200 | |
| SPT400GF | 400/500 | 440/550 | 720 | SP12V190DT | 450 | 1FC | 400 | |
| SPT500GF | 500/625 | 550/687.5 | 900 | SP12V190ZDT | 550 | 1FC | 500 | |
| SPT700GF | 700/875 | 770/962.5 | 1260 | SPG12V190ZLDT | 750 | 1FC | 700 | |
| SPT800GF | 800/1000 | 880/1100 | 1440 | SPA12V190ZLDT | 850 | 1FC | 800 | |
| SPT1000GF | 1000/1250 | 1100/1375 | 1800 | SPAD12V192ZLT2 | 1100 | 1FC | 1000 | |
2. Our advantage of biogas generator
1)Professional biogas generator manufacturer, not trader
2) Decades’ years of manufacturing and exporting experience
3) Adopt International quality standards, to meet high quality requirement
4) Good reputation for Reliable quality & Reasonable price
5) Strong technical support
6) Advanced production line with skilled workers

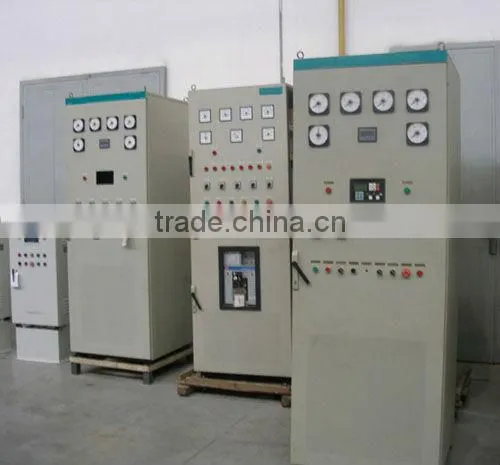

3. Control system of biogas generator:
a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2) Starting system: start motor is used to start engine
3) Short circuit protection: MCCB air switch
4) Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
5) Filter system: oil filter and air filter
6) Accessories: exhaust elbow, bellow, muffler
Standard Supply Scope of methane gas generator:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional Supply Scope of methane gas generator:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Packed with wrapped film as standard,plywooden case for options
When we finished the test of diesel generator,our transporation department then will take charge
of sending the generator to the container at port of loading,with help of our excellent forwarder,
we send our generators to our customers successfully without any damage.
Warranty policy of methane gas generator:
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
OEM Service of methane gas generator:
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers.

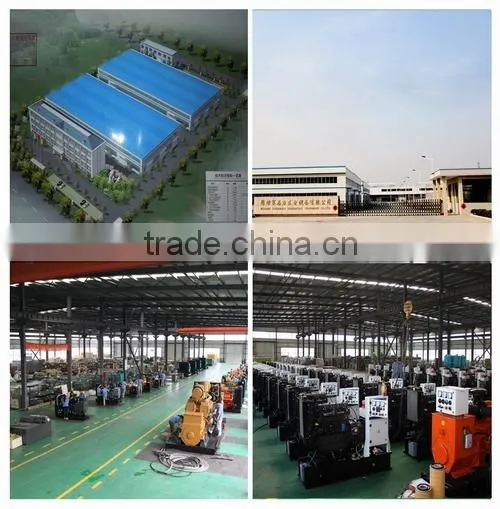

Supermaly Factory:
Supermaly Exhibition:
Supermaly Certificate:
FAQ(Frequently Asked Question):
1. What is your warranty period?
Our payment terms is 1 year or 1500 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2. Does your generator have global warranty?
Yes, most of our products like Cummins, Perkins, Doosan, Yuchai, Deutz, Volvo power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3. Can you accept OEM?
Yes, we can accept OEM.
4. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
5. What is your delivery time?
Our normal delivery time is 15-20 days. But if your order is some special engine and alternator, then the delivery time is longer.
