Solid Float PVC Boom
- Shanghai
You May Like
Product Details
| Place of Origin | China | Brand Name | JXY |
Product Description
Specifications

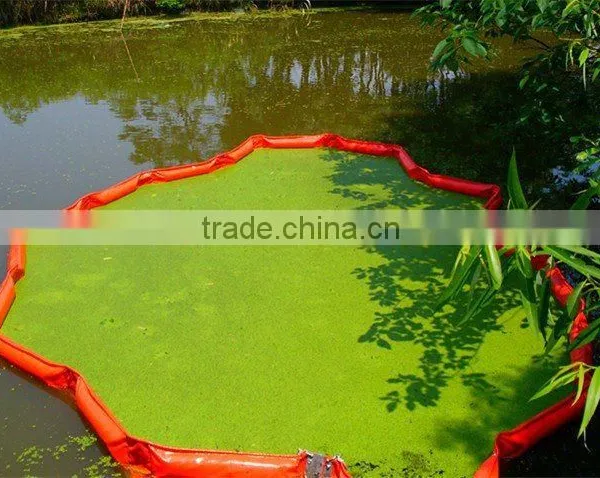

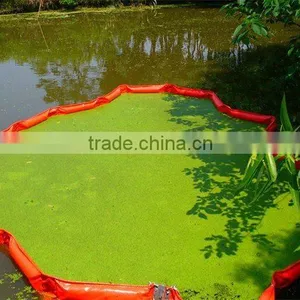

The solid float PVC boom is an economical, universal boom for intercepting oil spill and other floats on waters.The solid float PVC boom is an economical, universal boom for intercepting oil spill and other floats on waters. It is suitable for the permanent, stationary deployment on waters. Thanks to its fast deployment and easy operation, it is widely used on rivers, harbours, lakes, offshore oil platforms and other waters.
Features:
·Made of the high strength fabric coated with orange PVC on its two sides, having excellent resistance to oil and ageing.
·The solid float have a large capacity of buoyancy and excellent wave riding and steadiness.
·The boom body is provided with a pulling rope, a strengthening ribbon and tensile ballast chains serving as elements to withstand forces and has high tensile strength.
Technical Data:
Model | JXY- WGV | JXY- WGV | JXY- WGV | JXY- WGV | JXY- WGV | JXY- WGV | JXY- WGV | JXY- WGV |
Overall Height(mm) | 600 | 700 | 750 | 800 | 900 | 1000 | 1100 | 1500 |
Freeboard | 150 | 210 | 260 | 280 | 320 | 340 | 270 | 520 |
Draft | 380 | 390 | 400 | 420 | 490 | 540 | 560 | 760 |
Length Per | 20 | |||||||
Max, working Tensile Strength (KN)
|
20 |
25 |
30 |
45 |
55 |
75 |
85 |
130 |
Max, wave Height to withstand (m) |
0.5 |
0.5 |
1 |
1.5 |
1.8 |
2 |
2 |
3 |
Max, wind Speed to Withstand (m/s) |
8 |
10 |
10 |
15 |
15 |
18 |
20 |
20 |
Max, current Speed to Withstand (Kn) |
1 |
1
|
1.5 |
1.5 |
2 |
2.5 |
2.5 |
3 |
Packing dimensions for 20m | 1*1*0.6 | 1.2*1*1 | 1.2*1*1 | 1.3*1.1 *1.1 | 1.4*1.5 | 1.4*1.6 | 1.4*1.7 *1.4 | 1.6*1.9 *1.8 |
Note: The technical data are subject to change without notice due to modifications to the product and shall be confirmed by the manufacture and the customer.
