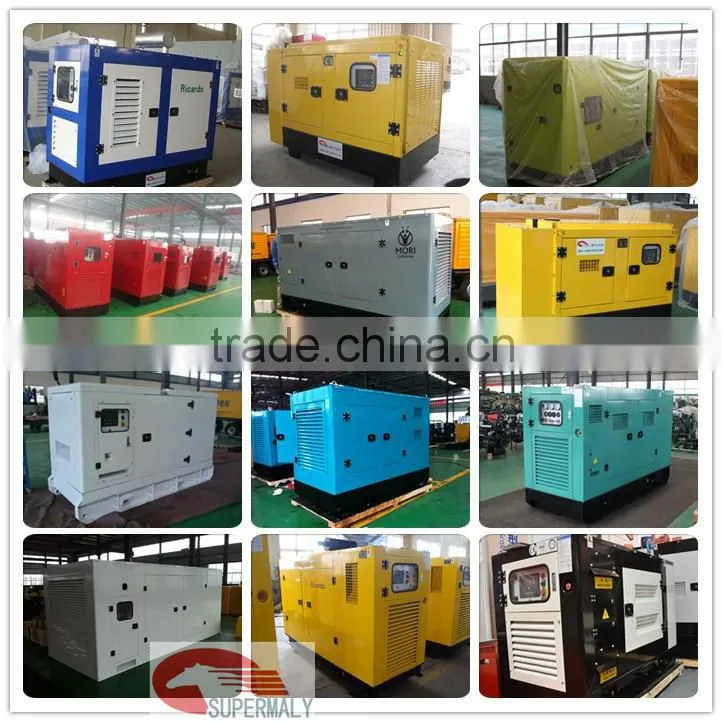

Picture of 100kw diesel generator with Canopy DCEC Factory engine :

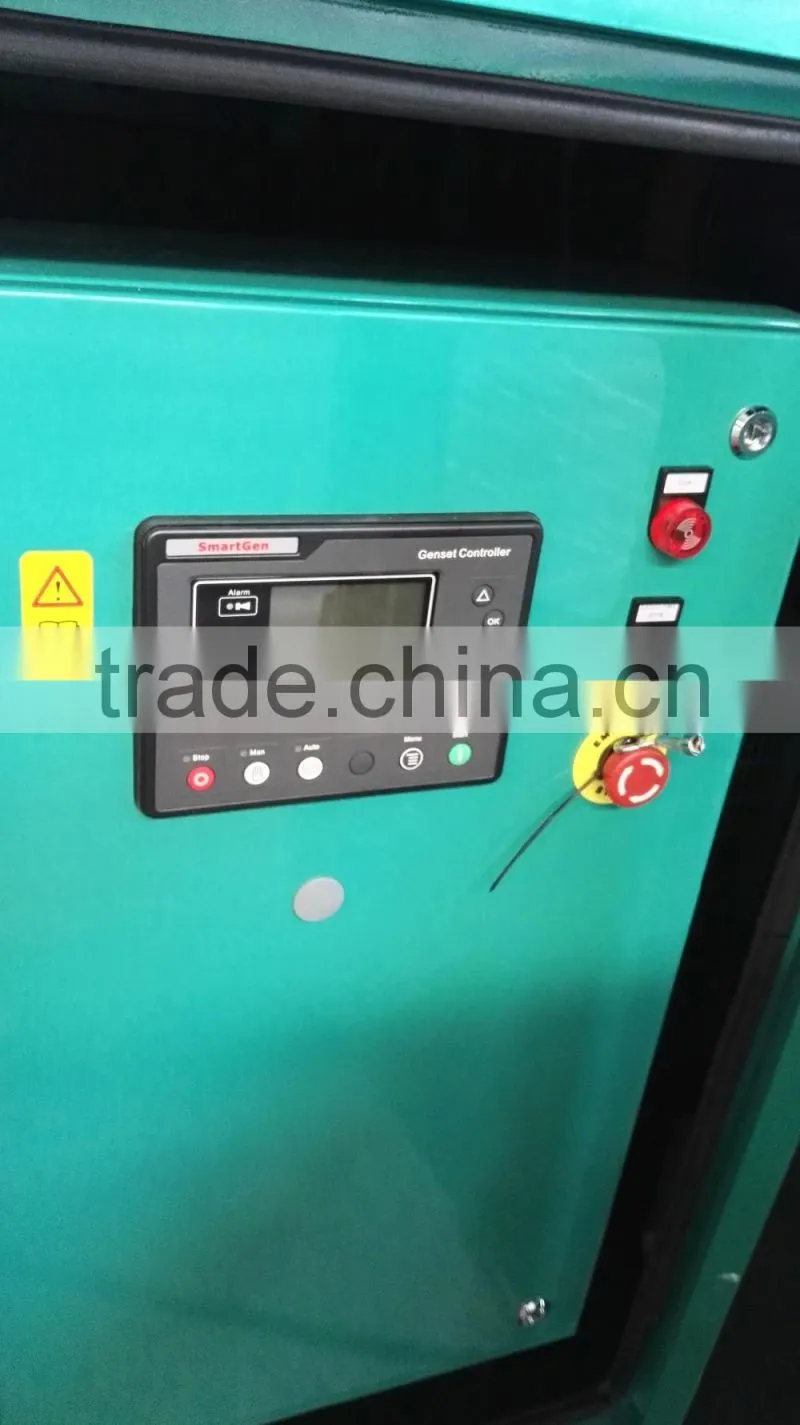

Automatic Control Panel is the basic configuration for nobody on duty controlling generator. This kind of panel can accept the remote Start/Stop signals.
(Controlled by ATS)
Features: adopted Chinese producing,
Auto control system, with large LCD,
Display in English (or CHINESE) to show the menu. With Auto Control Panel .generator are of various functions such as auto/manual stop (Emergency Stop), programmable plugs for input and output detected data, symbols diagram will show in the LCD, etc.
Parameter of 100kw diesel generator with Canopy DCEC Factory engine :
General feature:
Engine(Cummins6BTA5.9-G2)
Radiator 40°C max, fans are driven by belt ,with safety guard
24V charge alternator
Alternator (XN274DS), single bearing alternator IP23, insulation class H/H
Absorber
Dry type air filter ,fuel filter ,oil filter, coolant filter
Main line circuit breaker
Standard control panel
Two 12V batteries ,rack and cable
Ripple flex exhaust pipe ,exhaust siphone, flange, muffler.
User manual
Supermaly provides a full line of brand new and high quality products .Each and every unit is strictly factory tested.
Warranty is according to our standard conditions: 12 months or 1000 running hour’s, subject to the earlier one.
Service and parts are available from our factory or distribution in your location.
Genset model : SC100GFS
Frequency :50HZ
Phase:3
Rpm:1500
Size: 2800*1000*1630mm
Gross weight (kg):1500
Diesel Generator:
Model:6BTA5.9-G2
Type:Water-cooled ,inline ,4 stroke,direction,wet cylinder liner,1500rpm
Rated power(kw):106
Intake type:Turbocharged
No.of Cylinder:6.L
Bore*Stroke mm:102*120
Compression ratio:16.8:1
Displacement (L):5.88
Mechanical Governor Rate:5%
Electronic Governor Rate :1%
Noise level (dba):within 96
Exhaust temperature:601
Lub oil capacity (L):16.4
Rated fuel consumption(g/kw.h):27.5
Alternator:
Rated power(kw/kva):100kw/125kva
Power effiency:90.8%
Voltage regulation:within 1.5 or -1.5
Excitation type:Brushless
Insulation Class:H
Exhaust system:
Exhaust Gas Flow (after turbo): 17.6m3/min
Exhaust Temperature: 570℃
Max Back Pressure: 10kPa
Air intake system:
Max Intake Restriction: 6.35kPa
Consumption: 8.2m3/min
Air Flow: 190m3/min
Fuel system :
100%(Prime Power) Load: 211g/Kwh
75%(Prime Power) Load: 212g/Kwh
50%(Prime Power) Load: 219 g/Kwh
100%(Prime Power) Load: 25.2 L/h
Oil system:
Oil Consumption: ≤4g/KWhr
Engine Oil Tank Capacity: 14.2L
Min Oil Pressure at Rated RPM: 345kPa
Cooling System:
Total Coolant Capacity: 29L
Thermostat: 82-95℃
Max top tank Temperature:104℃
Generating set data:
Voltage Regulation: ³±5%
Voltage Regulation, Stead State: £±1%
Sudden Voltage Warp (100% Sudden Reduce) : £+25%
Sudden Voltage Warp (sudden Increase): £-20%
Voltage Stable Time (100% sudden Reduce): £6s
Voltage Stable Time (Sudden Increase): £6s
Frequency Reduce: £5% adjustable
Frequency Regulation, Stead State: £1.5%
Frequency waving: £0.8 %
Sudden Frequency Warp (100% Sudden Reduce) : £+12%
Sudden Frequency Warp (Sudden Increase): £-10%
Frequency Recovery Time (100% sudden Reduce): £5s
Frequency Recovery Time (Sudden Increase): £5s
Advantage of 100kw diesel generator with Canopy DCEC Factory engine :
1.Supermaly is the famous factory to product diesel and natural gas generator set in China.We have 8 years to product.And we are the OEM of Cummins,Wudong,Yuchai,Lovol. So we will be preferential prices.
2.with famous brand engine and alternator,low fuel consumption and low speed,saftety and reliable.
| A. Supermaly advantage: |
| 1. Professional diesel generator manufacturer, not trader |
| 2. Decades’ years of manufacturing and exporting experience |
| 3. Adopt International quality standards, to meet high quality requirement |
| 4. Good reputation for Reliable quality & Reasonable price |
| 5. Strong technical support ,quality checking strictly and 24hrs service team |
| 6. Advanced production line with skilled workers |
| 7.Some in stock and quick delivery |
| 8.Choosing the reliable quality and famous brand for each parts |
