0-50A DC Ammeter With Shunt Resistor Mini Panel Amp Meters Red/Blue/Green LED
US$ 4.00 - 4.00
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
TOWON
Model Number:
C27D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LED DC0-100A Digital Panel Ammeter AMP Ampere Meter With 100A/75mV ShuntUS$ 5.00 - 5.00MOQ: 100 Pieces -
LED DC0-9.99A Digital Panel Ammeter AMP Ampere Meter With Internal ShuntUS$ 5.00 - 5.00MOQ: 100 Pieces
-
Dual LED Digital DC100V 10A Voltmeter Ammeter Voltage Amps Meter Power DC4.5~30VUS$ 4.00 - 4.00MOQ: 100 Pieces
-
YB27VA DC 4.5-30V/10A Red LED Dual Display Volt Amp Meter 2in1 Three Wires Voltage Current Monitor MeterUS$ 3.50 - 3.50MOQ: 100 Pieces
-
YB27VA Dual Display Meter Red Blue LED Car 0-300V/10A Motorcycle DC Amp Meter Volt Gauge Voltmeter Ampere 2-in-1US$ 3.50 - 3.50MOQ: 100 Pieces
Place of Origin
China
Brand Name
TOWON
Model Number
C27D
Display Type
Digital Only
Measuring Range
0-50A
Accuracy Class
1%
Supply Voltage
DC5V or DC12V
Operating Temperature
-10 ~+55
Dimensions
4.8 X 2.9 X 3.6 cm

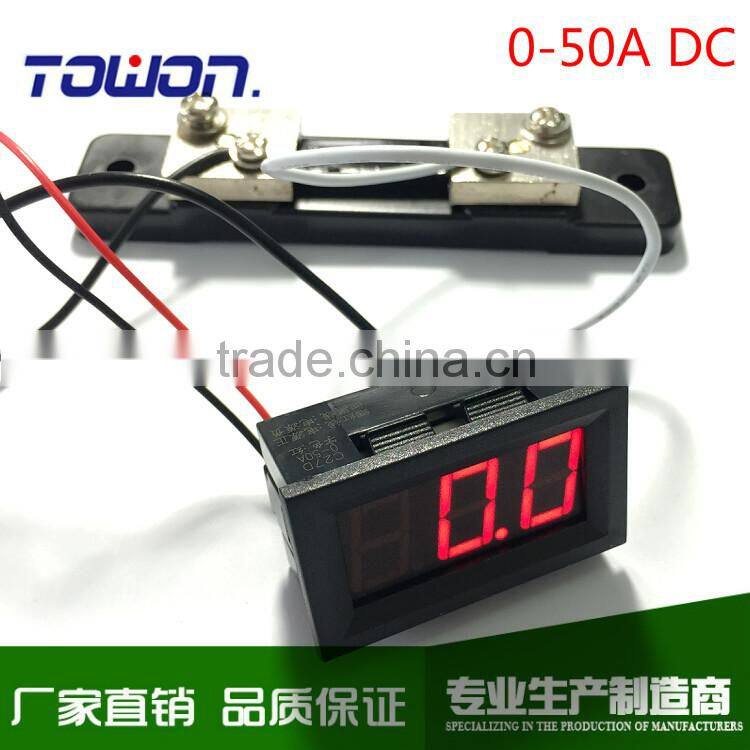

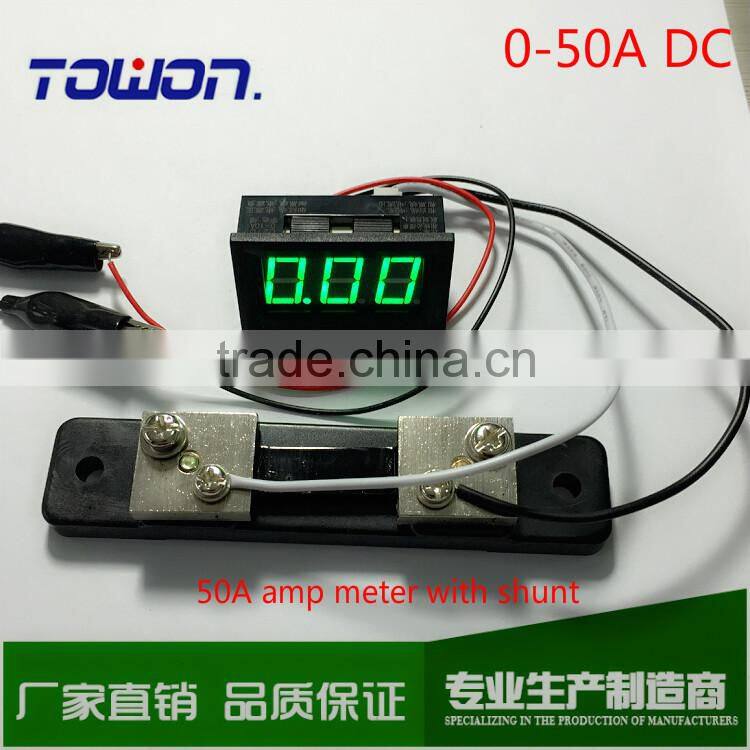

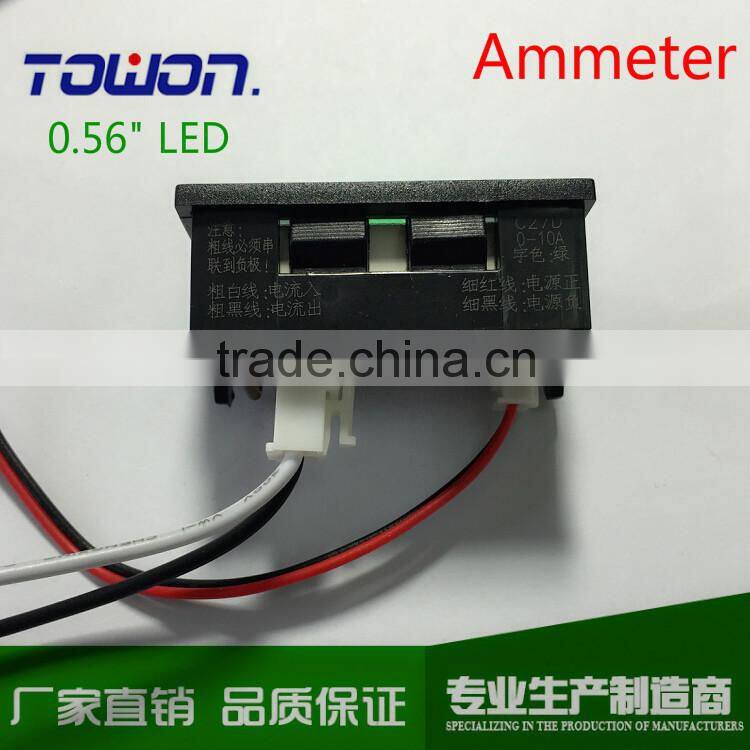

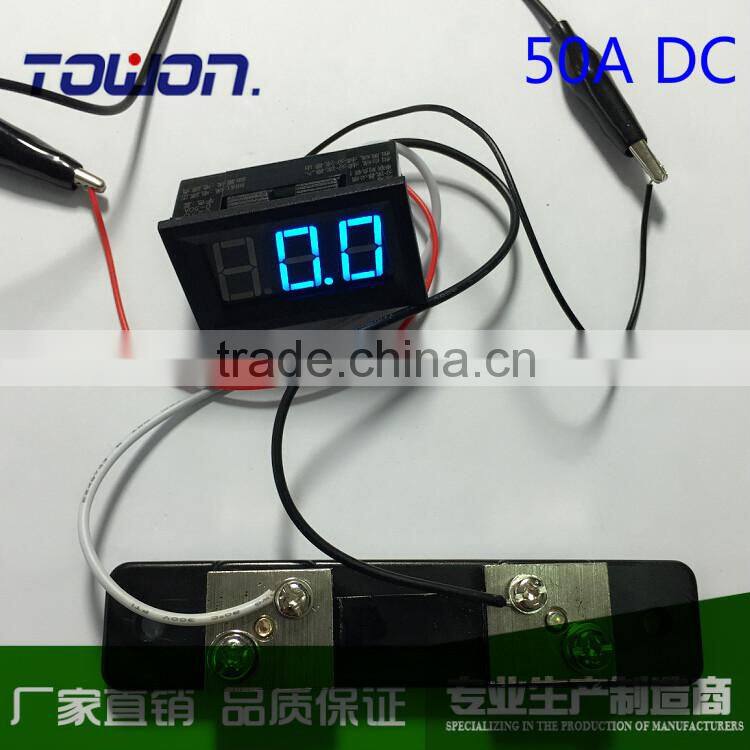

DC Ammeter 0-50A with Shunt resistor Mini Panel Amp Meters Red/Blue/Green LED
Feature:
- Brand new and high quality.
- PWR: Power supply DC4.5-28V,
- IN: test current 0 ~ 50A,
- The power supply can reversed,withou burn ,reverse protect
Range: DC0-5A (need external power supply, DC4.5-28V) .
-
1. Size: 4.8 X 2.9 X 3.6 cm
2. open pore size: 4.6 X 2.7 cm
3. lead wire length:15cm
4. net weight: 30g
5. Measuring Range: DC0-50A(connect with 50A/75mV shunt)
6. Maximum Input: DC50A
7. Display: three 0.56″LED digital tube
8. Display colors: red,green or blue
9. Refresh speed: about 500ms/each time
10. Allowable error: 1% (+ /-1)
11. Power supply for Ammeter: DC4-30V
12. Current consumption: Less than 20 mA, general 5-15 mA
