Supermaly manufacturer supply best price 25kva diesel generator Features:
Lovol brand power engine has absorbed British Perkins’ 70 years power manufacturing experience and leading world’s advanced technology.For the needs of global power, with the famous internal combustion engine research and development institutions in Germany BOSCH, Austria AVL, SwRI and China Automotive Technology and Research Institute, Tianjin University, to establish a research and development project as a carrier partnerships.It has became the classic power after absorbing power from the introduction of technology into the classic, digestion and innovation of the design and development of European origin and modern leading technology.
ENGINE DATA |
Manufacturer /Model: LOVOL
Air intake System:Water Cooling ,inline ,4 stroke ,direct injection
Fuel System : A type fuel Pump
Cylinder Arrangement: 3.L
Bore and Stroke: 100*127 (MM)
Compression Ratio: 16:1
Rated RPM: 1500rpm
Max standby Power at Rated RPM:27.5KW
Governor Type: Mechanical
Frequency Regulation ,Steady State : <±0.5%
ALTERNATOR DATA
Model:PI144G
Rated power(KW/KVA):25/31.3
Power Efficiency:88.6%
Excitation Type:Brushless
Insulation Class:H
Genset :
Genset Model :SL20GF
Frequency:50HZ
Voltage:400/230V
Phase:3P 4W
Prime power(kw/kva):20/25
Standby power (kw/kva):22/27.5
Overall size(mm):1900x800x1500
Gross weight(kg):690
Diesel Engine :
Diesel Model:1003G
Type:Water-cooled,in line, 4 stroke,direct injection, 1500rpm
Rated power(kw):28
Intake type:Natural
No.of Cylinder:3.L
Bore*Stroke mm:100x127
Compression Ratio:16.5:1
Exhaust Temperature:600
Lub oil capacity(L):6.9
Rated fuel consumption(L/h):6.7
Alternator:
Alternator model :XN184EF
Rated power (kw/kva):20/25
Power effiency: 90.6%
Voltage regulation:within 1 or -1
Excitation type :Brushless
Insulation Class:H

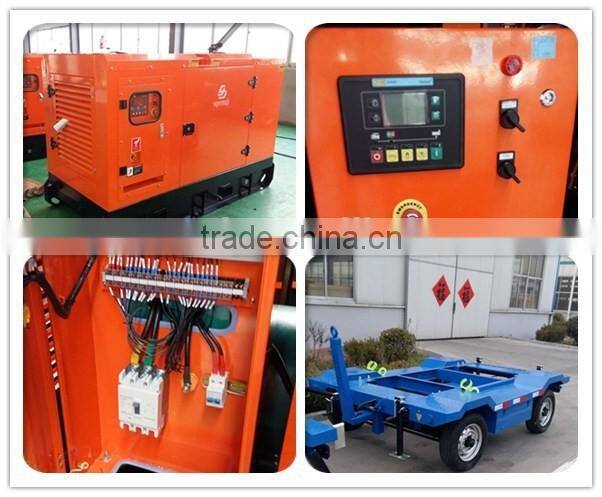

Generator with Trailer type

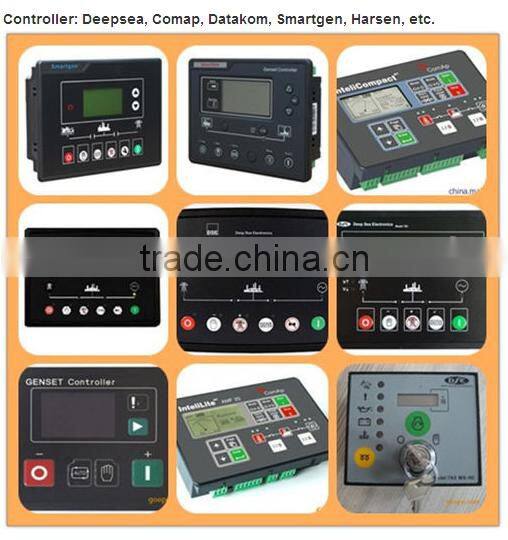

Control Module :

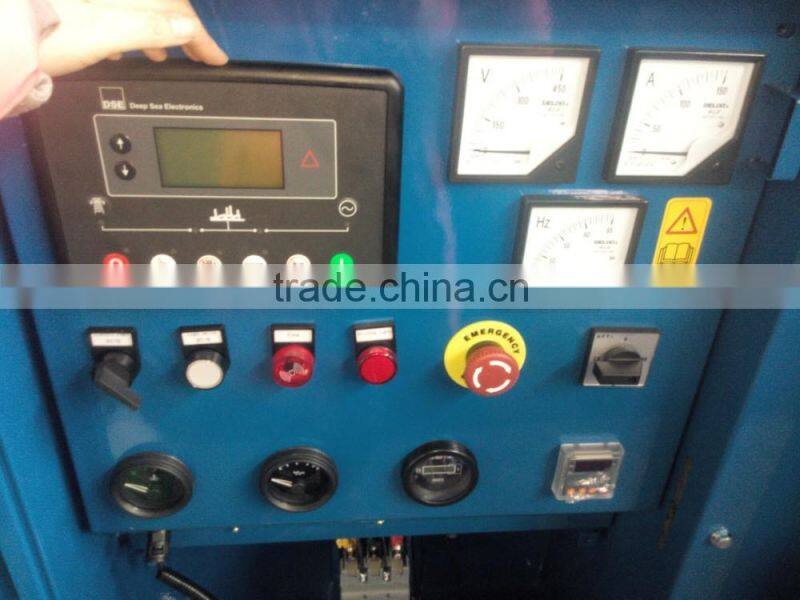

Generator Diesel for emergency .In the control panel, Ampere meter, Hetzmeter , voltmeter and switch for exchange .Button emergency .If you choose module ,these elements can as optional.Waterthermometer ,oil temperature gauge and oil presussure gauge,hourmeter or amperemeter for charging.They can test data and supply all the key informations to user .Then user can analysis them ,operate generate correctly .
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyer freely;
4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;
5.Problems caused by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhual and ordinary maintanence will be offered by us in factory price;
7.Skillful engineers of us are available dispatched to customers place for training and service
