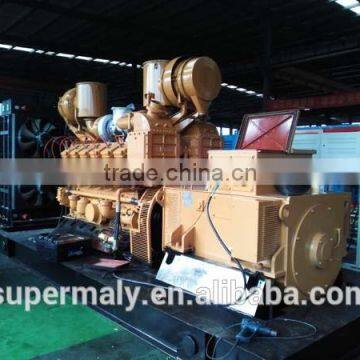

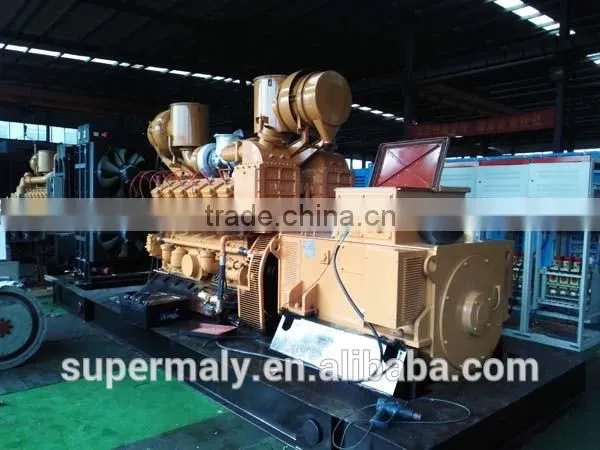

Help CenterSupermaly Water Cooled 1500Kw Diesel Generator Powered by Jichai Engine
Related Products
-
380v 50Hz Water Cooled 1250Kva Diesel Generator by Jichai EngineUS$ 136,000 - 145,000MOQ: 1 Set -
Supermaly Water Cooled Small Yangdong Generator by Yangdong EngineUS$ 1,700 - 3,000MOQ: 1 Set
-
Water Cooled 60Hz Open Type Diesel Generator With KTA38-G2US$ 50,000 - 56,000MOQ: 1 Set
-
Supermaly 50Kva Silent Diesel Generator Powered by K4100ZD EngineUS$ 4,500 - 6,000MOQ: 1 Set
-
Supermaly Manufacturer Supply Best Price 25kva Diesel GeneratorUS$ 5,000 - 10,000MOQ: 1 Set
SPECIFICITION OF GENERATOR 1.5MW WITH JICHAI ENGINE
Generator Set Model |
SP1875GF |
Type |
OPEN TYPE |
Genset Output Power |
1500KW/1875KVA |
Rated Voltage |
400/230V |
Frequency |
50/60HZ |
Power factor |
0.8 |
Rated speed |
1500/1800rpm |
Output type |
AC three phase/single phase |
Motor |
brushless |
Frequency |
<3% |
Frequency at stable state: |
<0.5% |
Frequency deviation at instantaneous state |
≤+10% |
Frequency return time |
≤3s |
Voltage deviation at stable state |
≤±1% |
Voltage deviation at instantaneous state |
≤+20% |
Voltage return time |
≤4s |
Voltage modulation |
≤0.3% |
SPECIFICATION OF JICHAI ENGINE FOR GENERATOR 1.5MW
Model |
H12V190PZL |
Rated Power |
1740KW |
Cooling Method |
water cooled |
Rotating Speed |
1500/1800rpm |
Governor System |
electrical or mechanical governor |
Aspiration Mode |
turbocharged and inter-cooling |
Starting Method |
12DC electric starting |
Stroke |
4 stroke |

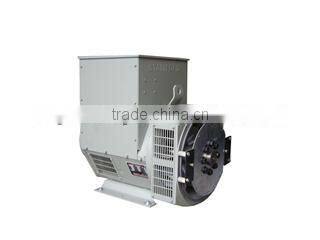

SPECIFICATION OF ALTERNATOR FOR GENERATOR 1.5MW
Brand |
STANMFORD |
Rated Power |
1500KW/1875KVA |
Regulator |
AVR Automatic Voltage Regulating |
Excite Type |
pret or shunt |
Connecting Type |
3PH star, 3PH-DELTA |
Steady Frequency Change |
0-5% |
No Load Voltage |
≥95%-105 |
Steady Voltage |
≤±1 |
Insulation Degree |
H degree |
Exclosure Degree |
IP23 |
Generator set Features:
1. Jichai industrial diesel engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Choice of manual/auto and AMF control panels and protection systems
4. Digital auto-start panel
5. Anti Vibration Suspension Absorber
6. Dry type air filter, fuel filter, oil filter
7. Mould case circuit breaker
8. 24V DC start motor and storage battery
9. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
Packed with wrapped film as standard,plywooden case for options
When we finished the test of diesel generator,our transporation department then will take charge
of sending the generator to the container at port of loading,with help of our excellent forwarder,
we send our generators to our customers successfully without any damage.
Warranty policy of power generator set:
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
OEM Service of power generator set:
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers
1. What is your warranty period?
Our payment terms is 1 year or 1500 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2. Does your generator have global warranty?
Yes, most of our products like Cummins, Perkins, Doosan, Yuchai, Deutz, Volvo power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3. Can you accept OEM?
Yes, we can accept OEM.
4. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
5. What is your delivery time?
Our normal delivery time is 15-20 days. But if your order is some special engine and alternator, then the delivery time is longer.
