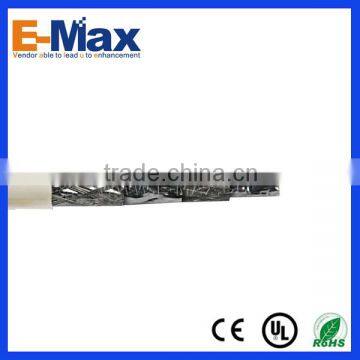

Coax Cable RG59 CCS For Broadcast TV Trunking Coaxial Cable
- Shanghai Shenzhen or China Main Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Coaxial Type 21VATC Coaxial Cable CE ETL UL Approvel TV Satellite Coaxial Cable
-
Coaxial Type 21VATC Coaxial Cable CE ETL UL Approvel Indoor Cable Coaxial
-
Coaxial Type 21VATC Coaxial Cable CE ETL UL Approvel Coaxial Cable for Elevator
-
Coax Cable RG59 CCS For Broadcast Rg6 Coaxial Cable Price
-
Coaxial Type 21VATC Coaxial Cable CE ETL UL Approvel Coaxial Cable Manufacturer
-
Coaxial Type 21VATC Coaxial Cable CE ETL UL Approvel 5d-fb Coaxial Cable
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM,or E-Max | |
| Model Number | EC-C151-025 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Coax Cable RG59 CCS For Broadcast TV trunking Coaxial Cable
Specifications | |||
Type | Composite Cable /Hybrid Cable | Issue No. | 25 |
Date of Issue | 02-23-2012 | Page | 1 |
Application:
Used as a distribution or connection cable for
- low-power video and RF signal connections
- indoor CATV, CCTV systems
- satellite systems
Component | Material | Diameter(mm) |
Inner Conductor | BC | 0.81 |
Dielectric | FPE | 3.66 |
Shield | Al foil+85%CCA Braid | 4.24 |
Jacket | PVC,black/white, or customized | 6.1 |
Power Wire | 2*0.8mm2 BC, PE insulation |
|
Electrical Properties
Impedance(ohm) | 75±5 | ||
Capacitance(pF/m) | 52±3 | ||
Nominal Velocity of Propagation (%) | 82 | ||
Inner Conductor Resistance(ohm/Km) | 35 | ||
SRL(dB) | VHF | 20 | |
UHF | 18 | ||
Attenuation @68℉(20℃) | Frequency(MHz) | Attenuation(dB/100FT) | Attenuation(dB/100m) |
5 | 0.86 | 2.82 | |
55 | 2.05 | 6.73 | |
187 | 3.60 | 11.81 | |
300 | 4.45 | 14.60 | |
450 | 5.40 | 17.72 | |
600 | 6.20 | 20.34 | |
750 | 6.92 | 22.87 | |
865 | 7.57 | 24.67 | |
1000 | 8.12 | 26.64 | |
1200 | 8.97 | 29.40 | |
1450 | 9.88 | 32.41 | |
1800 | 10.90 | 35.60 | |
2200 | 12.60 | 41.20 | |
3000 | 13.80 | 45.20 | |
Note: Customized Specifications are also welcome.
Coax Cable RG59 CCS For Broadcast TV trunking Coaxial Cable
- Inter packing: wooden reel,plastic reel or paper reel.
- Outer packing: carton box,pull out box.
- Delivery time is about 30 days after receivd the deposit.
Hangzhou E-Max Industry Co., Ltd is specialized in wires & cables and related products. With our sophisticated supply chainmanagement, industry insights and expertise, we provide our customers with total solution for the wires and cable industry, including:
- Qualified wires & cables, tools and accessories for wiring &cabling
- Raw materials, machineries and testing equipments & facilities for wires and cables manufacturing
- Solutions and consultation for cabling, cable factory set up,upgrade, expansion, etc.
We stick to our mission as the Vendor Able to Lead U to Enhancement, and this is what we call “VALUE”.
OUR WORKSHOP
Coax Cable RG59 CCS For Broadcast TV trunking Coaxial Cable
If you have any question about the products pls feel free contact us !
Contact person :Ada
QQ: 3362679467
WhatsApp:008618967189724
Wechat: 18967189724
