0.56 Inch 7 Segment 6 Digits LED Digital Display

Aite Aiko Technology (Shenzhen) Co., Ltd.
0.56 Inch 7 Segment 6 Digits LED Digital Display thumbnail-1
0.56 Inch 7 Segment 6 Digits LED Digital Display thumbnail-2
0.56 Inch 7 Segment 6 Digits LED Digital Display thumbnail-3
0.56 Inch 7 Segment 6 Digits LED Digital Display thumbnail-4
0.56 Inch 7 Segment 6 Digits LED Digital Display thumbnail-5
0.56 Inch 7 Segment 6 Digits LED Digital Display thumbnail-6
0.56 Inch 7 Segment 6 Digits LED Digital Display photo-1
0.56 Inch 7 Segment 6 Digits LED Digital Display photo-2
0.56 Inch 7 Segment 6 Digits LED Digital Display photo-3
0.56 Inch 7 Segment 6 Digits LED Digital Display photo-4
0.56 Inch 7 Segment 6 Digits LED Digital Display photo-5
0.56 Inch 7 Segment 6 Digits LED Digital Display photo-6
US$ 0.1 - 0.3 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ATA
Model Number:
ATA5661
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ATA
Model Number ATA5661
Usage Indoor
Tube Chip Color Other, 6 colors for option
Display Function Other, household appliance display
Pixels 20mm
Screen Dimension 73.8*24.9mm



0.56 inch 7 segment 6 digits LED digital display

0.56 inch 7 segment 6 digits LED digital display

Product Description

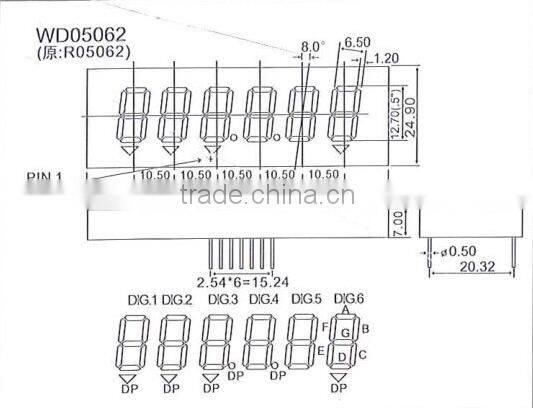

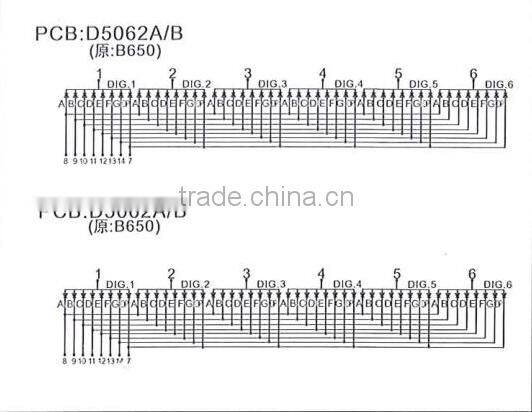

Dimension and internal circuit

Specification for different colors

Type  YELLOW

Parameter

Symbol

Maximum Rating

Unit

Power Dissipation

Pd

40

mW

Peak Forward Current

Ifp

60

mA

Continuous Forward Current(Forward )Current

Ifm

30

mA

Reverse Voltage

VR

5

V

Operating Temperature Range

Topr

-20→ +65

°C

Storage Temperature Range

Tstg

 -20→ +70

°C

Static Voltage

Var

500

V



Type GREEN

Parameter

Symbol

Maximum Rating

Unit

Power Dissipation

Pd

46

mW

Peak Forward Current

Ifp

60

mA

Continuous Forward Current( Forward )Current

Ifm

30

mA

Reverse Voltage

VR

5

V

Operating Temperature Range

Topr

-20→ +65

°C

Storage Temperature Range

Tstg

 -20→ +70

°C

Static Voltage

Var

500

V



Type RED

Parameter

Symbol

Maximum Rating

Unit

Power Dissipation

Pd

38

mW

Peak Forward Current

Ifp

60

mA

Continuous Forward Current( Forward )Current

Ifm

30

mA

Reverse Voltage

VR

5

V

Operating Temperature Range

Topr

-20→ +65

°C

Storage Temperature Range

Tstg

 -20→ +70

°C

Static Voltage

Var

500

V



Type AMBLE

Parameter

Symbol

Maximum Rating

Unit

Power Dissipation

Pd

38

mW

Peak Forward Current

Ifp

60

mA

Continuous Forward Current( Forward )Current

Ifm

20

mA

Reverse Voltage

VR

5

V

Operating Temperature Range

Topr

-20→ +65

°C

Storage Temperature Range

Tstg

 -20→ +70

°C

Static Voltage

Var

1000

V



Type BLUE

Parameter

Symbol

Maximum Rating

Unit

Power Dissipation

Pd

68

mW

Peak Forward Current

Ifp

60

mA

Continuous Forward Current( Forward )Current

Ifm

20

mA

Reverse Voltage

VR

5

V

Operating Temperature Range

Topr

-20→ +65

°C

Storage Temperature Range

Tstg

 -20→ +70

°C

Static Voltage

Var

1000

V

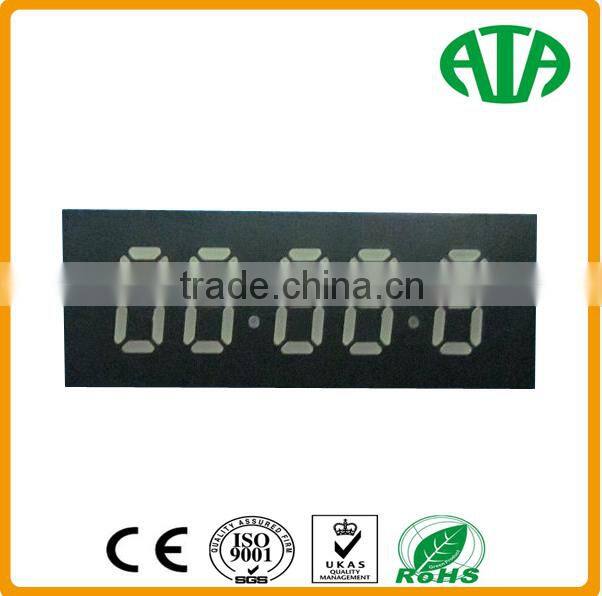

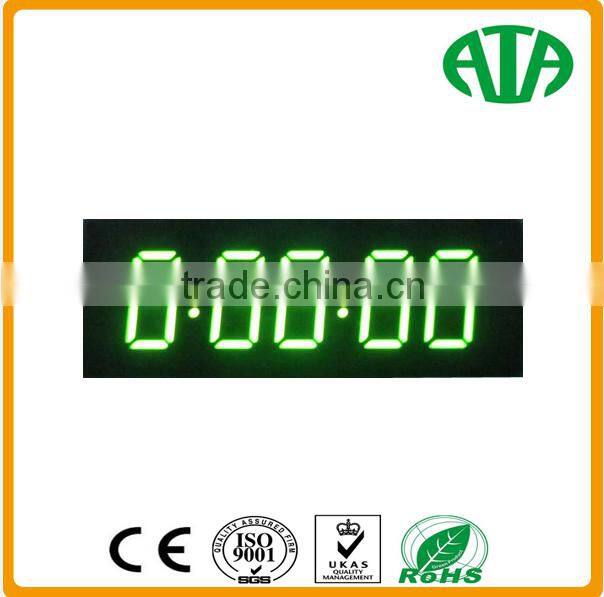

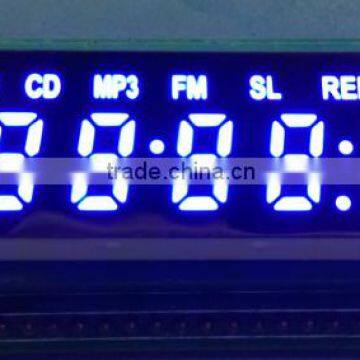

Products show

 0.56 inch 7 segment 6 digits LED digital display0.56 inch 7 segment 6 digits LED digital display

Similiar products



 0.56 inch 7 segment 6 digits LED digital display

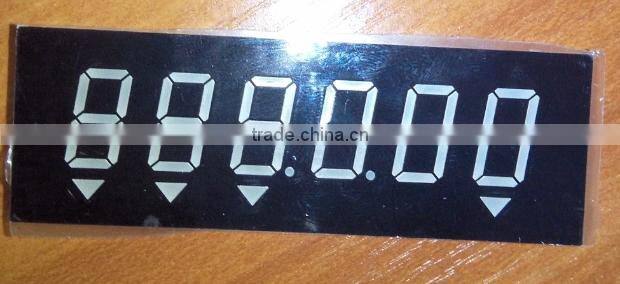

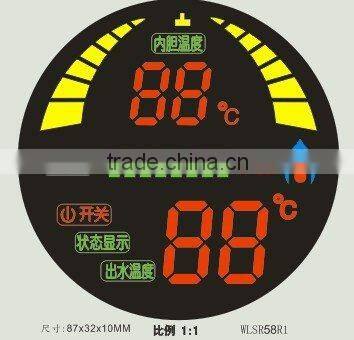

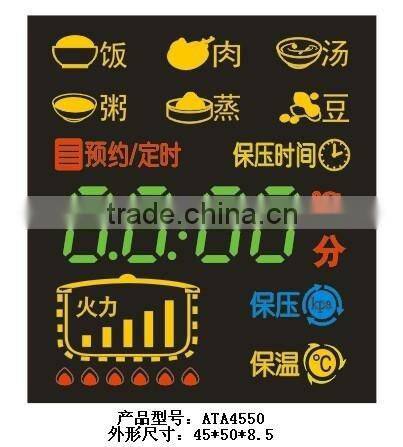

customized products



0.56 inch 7 segment 6 digits LED digital display0.56 inch 7 segment 6 digits LED digital display

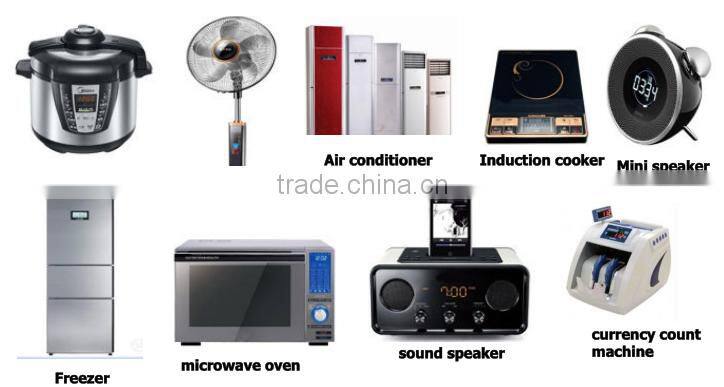

Application







Company Information







Introduction of Our Company



SHENZHEN AITEAI TECHNOLOGY CO.,LTD.



     Our company is specialized in LED diode, nixie tubes, dot matrix modules, clock plate, back plate, and all kinds of indoor and outdoor LED display screen with single or dual color etc.Our products sells well for uniform brightness and enjoys a great reputation in China . Our products decease less than 1% brightness within 1 year. With many years experience in production and management, we can offer customers with reliable quality, favorable price of LED display.



Our belief is "to pursuit excellence on the basis of good faith". Our purpose is to  provide our customers the best quality and service. Besides, we have rich experience in cooperating with some big companies such as TCL, Desay etc.



1. We can supply you all kinds of 7 segment LED display:



---Digit size: from 0.25" to 16"



---Digit Numer: 1, 2, 3, 4, 5 and 6 digits



2. Segment : 7 segment and 14 segment both are available



3. Available Emitting color: red, green, blue, yellow, amber, white, bi-color



4. Available surface color: black and grey



5. Lens color: milky white or same with emitting color

0.56 inch 7 segment 6 digits LED digital display0.56 inch 7 segment 6 digits LED digital display
