Gabion Machine
- 200 Set / Sets per Month
- Shanghai
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Jinlida | Model Number: | LNWL43-100-2ZX |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.Automatic Gabion Machine
Descrition:
Gabion machine JINLIDA brand
1. Invented first double twist gabion machine in China
2. Apply for national patents, number is ZL99229381.2 and ZL00267066.5
3. SGS,TUV certificate
Gabion machine
JINLIDA series machine is designed to make hexagonal wire mesh of various widths and mesh sizes.
We have 15 years export experience establishing trade with more than 30 countries, and Maccaferri,
DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.
Advantages:
1. New type double rack drive gabion machine
2.High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6.Automatic oil system
7. The equipment is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.

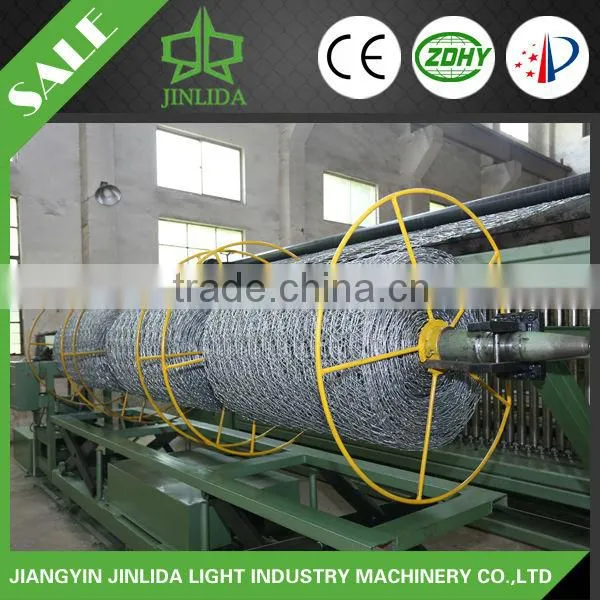

Pic 1 Mesh Weaving Machine
Specifications:
Style | Mesh size | Width | Wire diamater | Spindle Speed | Twist | power of motor | Theoretic output |
(mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
LNWL23-60-2ZX | 60X80 | 2300 | 1.6-3.2 | 25 | 3 | 11 | 165 |
LNWL23-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
LNWL23-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
LNWL23-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
LNWL33-60-2ZX | 60X80 | 3300 | 1.6-3.2 | 25 | 3 | 15 | 165 |
LNWL33-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
LNWL33-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
LNWL33-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
LNWL43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
LNWL43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
LNWL43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
LNWL43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
LNWL43-60-3ZX | 60X80 | 1.6-3.2 | 25 | 5 | 165 | ||
LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 | |||
LNWL43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 | |||
LNWL43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Pic 2&3 Wire tension device&Netting winding machine
Pic 4 Spring coiling machine
JINLIDA Series Prduction Line
Application
Competitive Advantage:
1. All the parts of netting sheet cutting machine are processed by our own factory, no parts were send to
outside to process, so the quality can be ensured.
2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
