22Kw Mesh Size Gabion Box Making Machine For 4.2mm Wire

Specifications

The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.

22Kw Mesh Size Gabion Box Making Machine For 4.2mm Wire



Advantages:

1. New type double rack drive gabion machine

2. High efficiency: theoretic output=4.25m/min

3. PLC control system touch screen(Option)

4. Infrared ray safety(Option)

5. Automatic stop system (Option)

6. Automatic oil system

7. The equipment is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.

8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.





Descrition:



Gabion machine JINLIDA brand

1. Invented first double twist gabion machine in China

2. Apply for national patents, number is ZL99229381.2 and ZL00267066.5

3. SGS,TUV certificate



Gabion machine

JINLIDA series machine is designed to make hexagonal wire mesh of various widths and mesh sizes.

We have 15 years export experience establishing trade with more than 30 countries, and Maccaferri,

DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.

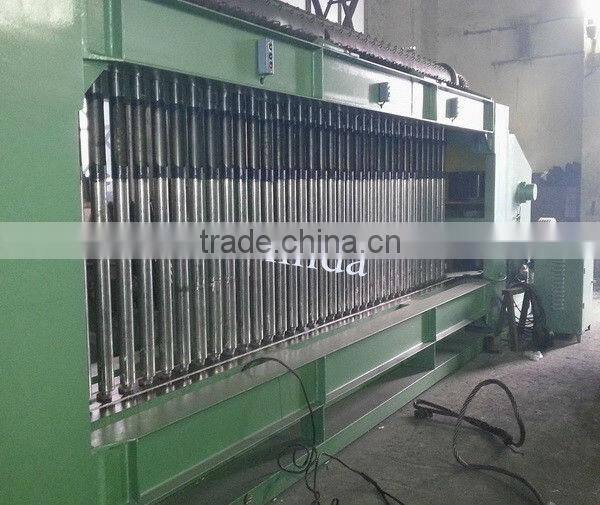

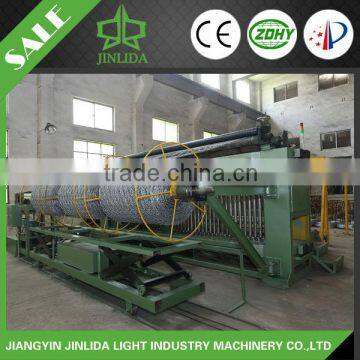

Pic 1 Mesh Weaving Machine





Specifications:

Style	Mesh size	Width	Wire diamater	Spindle Speed	Twist	power of motor	Theoretic output
	(mm)	(mm)	(mm)	(r/min)	(r )	(kw)	(m/h)
LNWL23-60-2ZX	60X80	2300	1.6-3.2	25	3	11	165
LNWL23-80-2ZX	80X100		1.6-4.0		3		195
LNWL23-100-2ZX	100X120		1.6-4.0		3		225
LNWL23-120-2ZX	120X150		1.6-4.2	20	3		255
LNWL33-60-2ZX	60X80	3300	1.6-3.2	25	3	15	165
LNWL33-80-2ZX	80X100		1.6-4.0		3		195
LNWL33-100-2ZX	100X120		1.6-4.0		3		225
LNWL33-120-2ZX	120X150		1.6-4.2	20	3		255
LNWL43-60-2ZX	60X80	4300	1.6-3.2	25	3	22	165
LNWL43-80-2ZX	80X100		1.6-4.0		3		195
LNWL43-100-2ZX	100X120		1.6-4.0		3		225
LNWL43-120-2ZX	120X150		1.6-4.2	20	3		255
LNWL43-60-3ZX	60X80		1.6-3.2	25	5		165
LNWL43-80-3ZX	80X100		1.6-4.0		5		195
LNWL43-100-3ZX	100X120		1.6-4.0		5		225
LNWL43-120-3ZX	120X150		1.6-4.2	20	5		255



















































Pic 2&3 Wire tension device&Netting winding machine





Pic 4 Spring coiling machine



JINLIDA Series Prduction Line

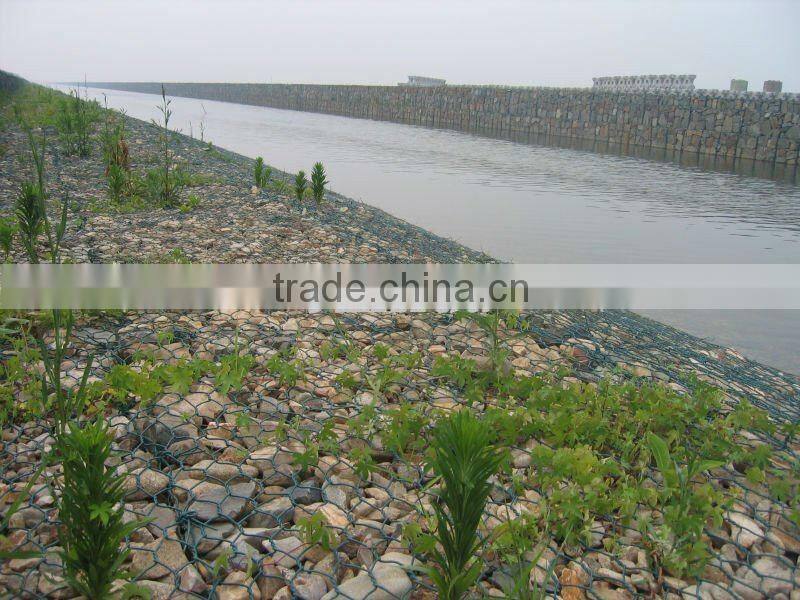

Application







Competitive Advantage:

 1. All the parts of netting sheet cutting machine are processed by our own factory, no parts were send to

outside to process, so the quality can be ensured.

 2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
