Specifications
This machine is our new style, it can weave double twist and three twist gabion mesh on the same machine.
Max 4.0mm Diameter Three Twist Hexagonal Wire Netting Machine With Automatic PLC Control System
Our New Type Gabion Mesh Machine---LNWL-3ZX
This machine is our new style, it can weave double twist and three twist gabion mesh on the same machine and also can weave the mesh that 4.0mm diameter.
This type machine is using spiral coil. And the twist could be double twisted and three twisted as
below picture.
Pic 1:double twist mesh Pic 2: three twist mesh Pic 3: Gabion box application
Advantages:
1. The LNWL-3 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes; we can produce the machne as your size.
2. This new 3 series gabion mesh machines structure is simpleness, it can make the machine weaving mesh more easier.
3. The capability is stabilization, all the points of iunction have bearing to fix, the parts will hard-wearing, lengthen machine life.
4. The mesh that 3 series machine weave, the part of twist will be longer that 2 series mchine, so when the mesh need edge curl that using the selvedge machine, it will going easily and smoothly.

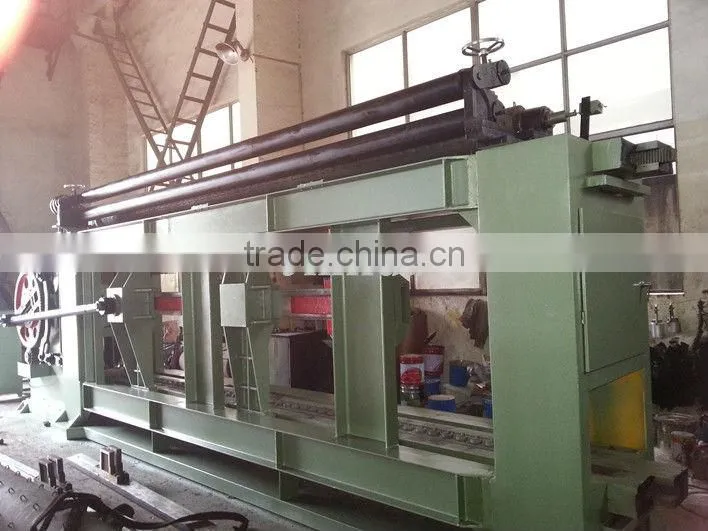

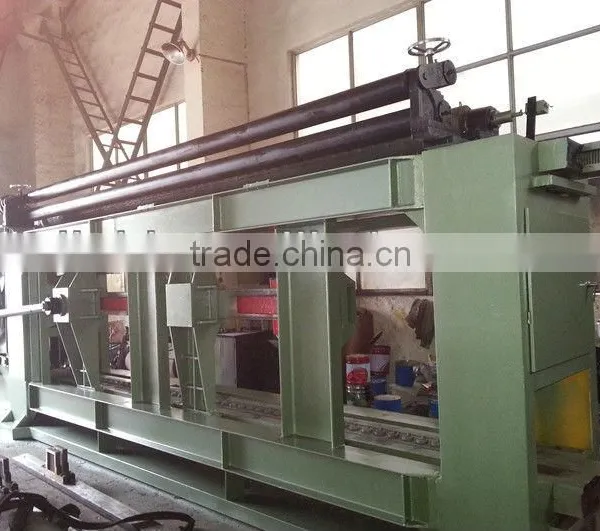

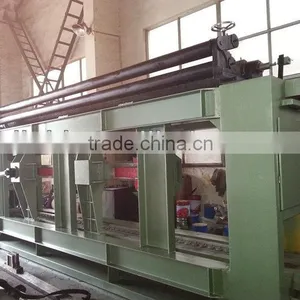

Pic 1 Mesh Weaving Machine
Specification:
| Style | Mesh size | Width | Wire diamater | Spindle Speed | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) | |
| LNWL43-60-3ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 22 | 165 |
| LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 195 | |||
| LNWL43-100-3ZX | 100X120 | 225 | ||||
| LNWL43-120-3ZX | 120X150 | 1.6-4.0 | 20 | 255 |
Competitive Advantage:
1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area
of gabion machine making for 15 years.
2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
