P20 Outdoor Signal Indicator Led Displays

Name: P20 Outdoor Signal Indicator Led Displays
Brand: DFB Electronic
SKU: 109246301
Availability: InStock

US$ 800 - 1,400 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DFB Electronic

Model Number:

OLD-View Series-P20

Sichuan Dongfang Bros Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DFB Electronic

Model Number OLD-View Series-P20

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 20mm

Outdoor Full Color LED Display

(Solution for Outdoor Long Viewing Distance)

OLD-View Series

Viewing distance: 20-500m

Recommend Minimum Screen size: 24-32 M²

Features:

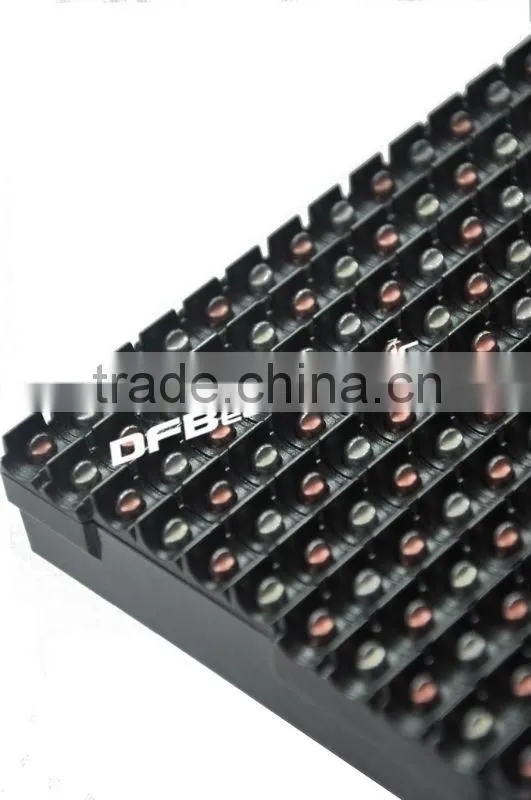

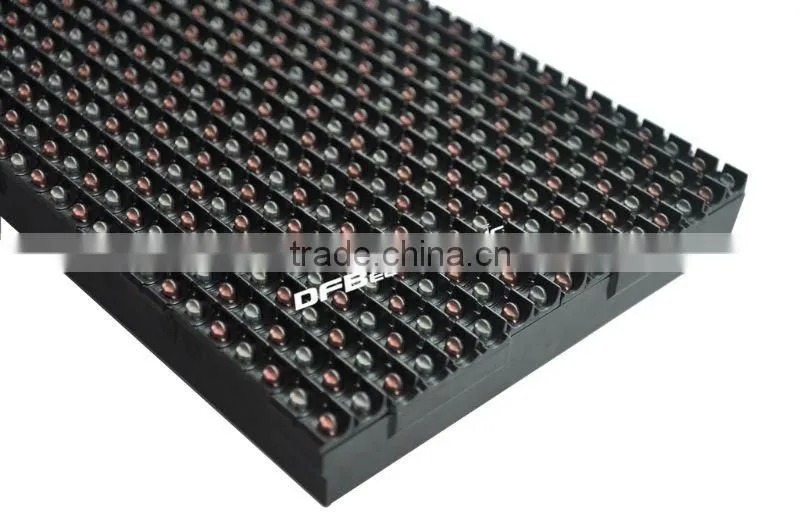

Pixel pitch 20mm, led density 2500pixels/square meter
Applicable in rental business and fixed installation business.
High standard in base material selection, to reach up best cost/performance ratio
Good quality, high brightness oval outdoor leds, brightness up to 8000nits.
IP65 Rating to insure the good working even if under the fierce environment with strong wind, sandstorm, rainstorm…etc.
Professional Color calibration system to make sure the color and brightness uniformity, no “mosaic” “glare” “splash” symptom in white balance.
Energy saving design is available, power saving 10-30%.

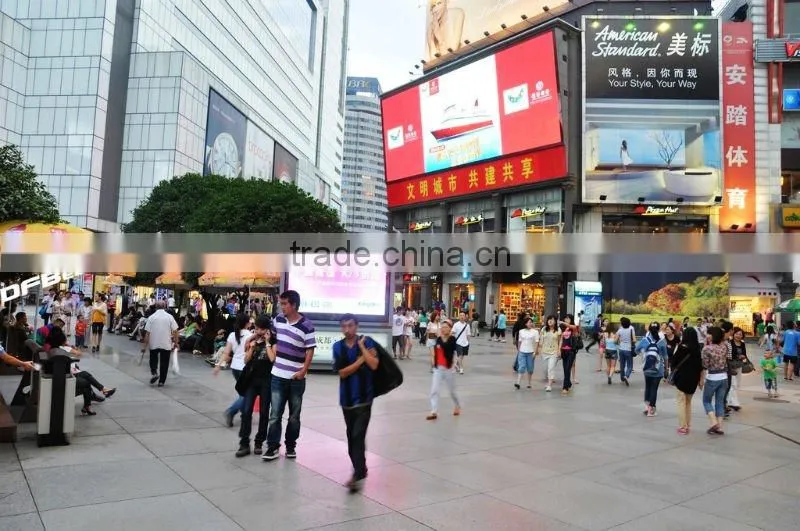

Applications:

1. Outdoor rental (super slim, light weight rental panel)

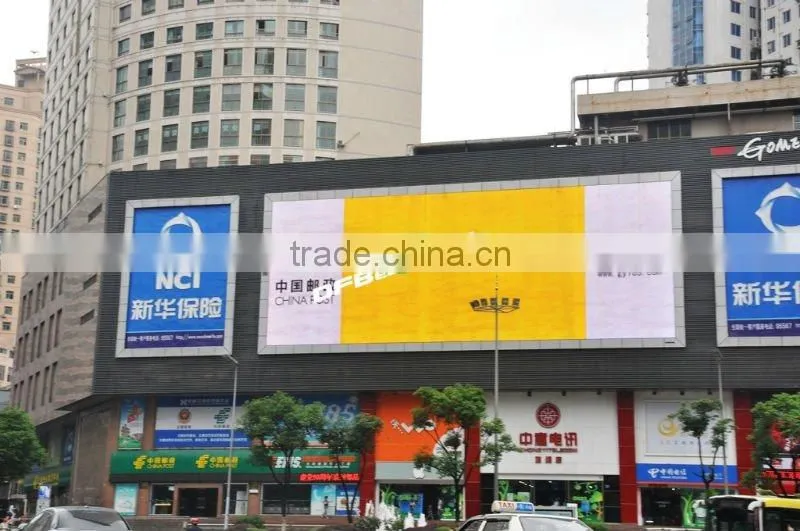

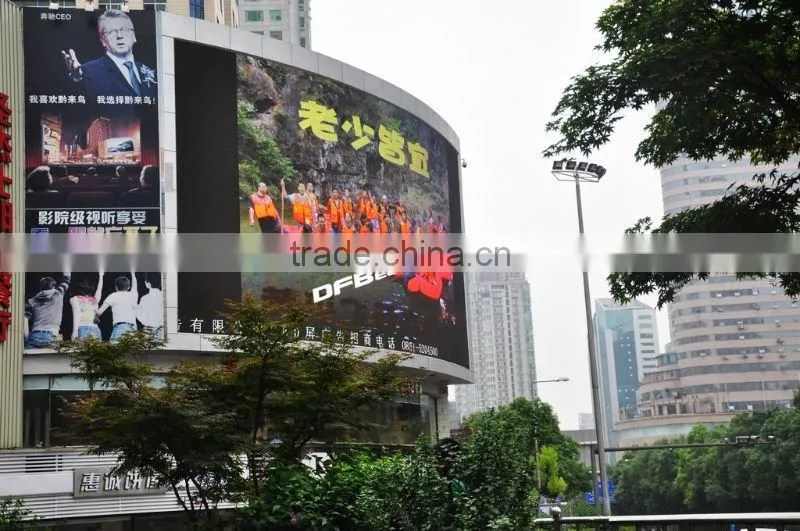

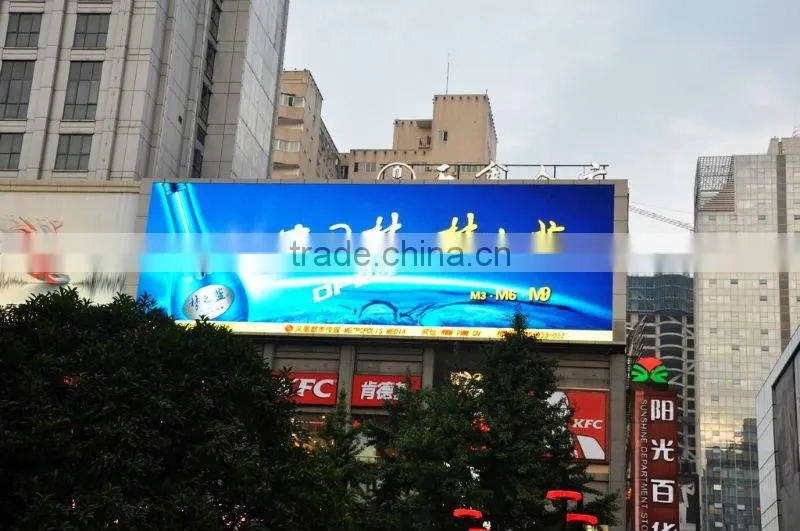

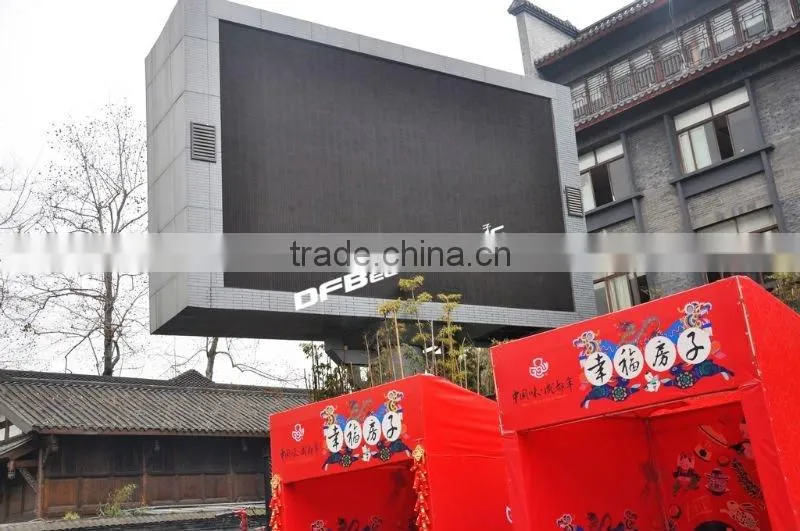

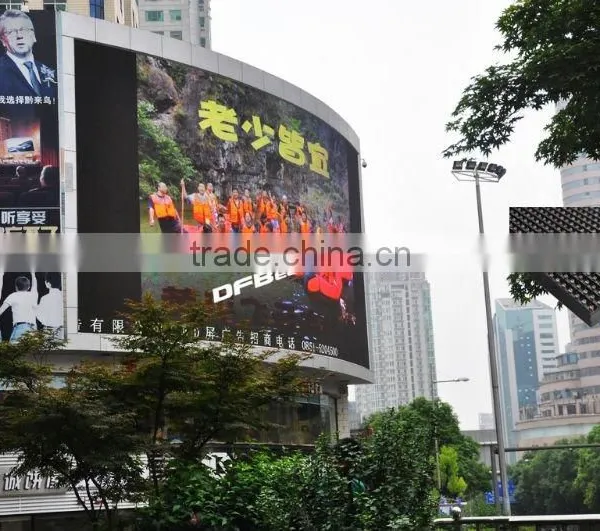

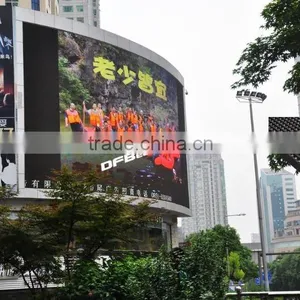

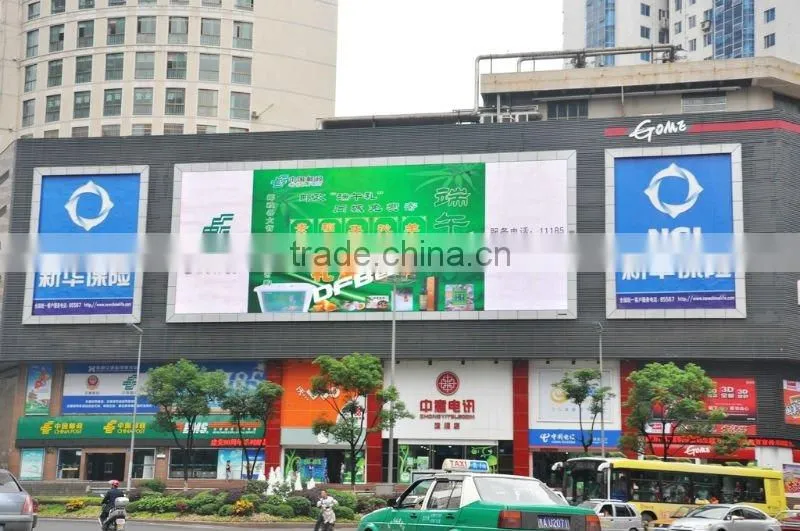

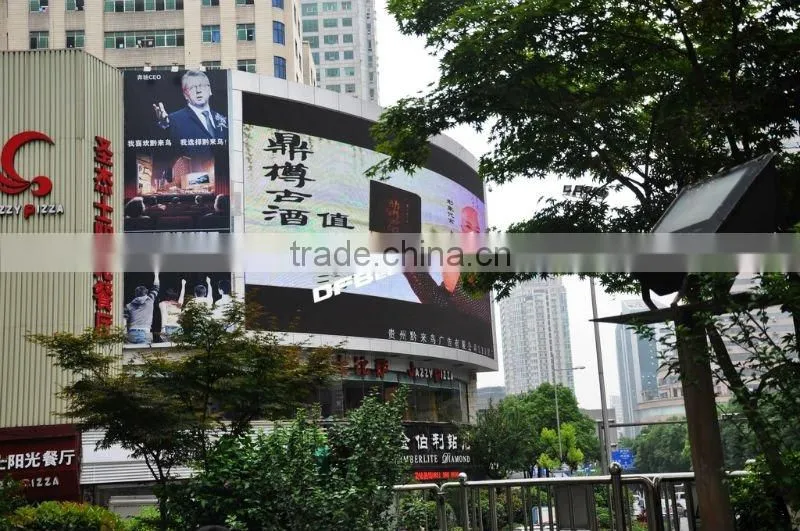

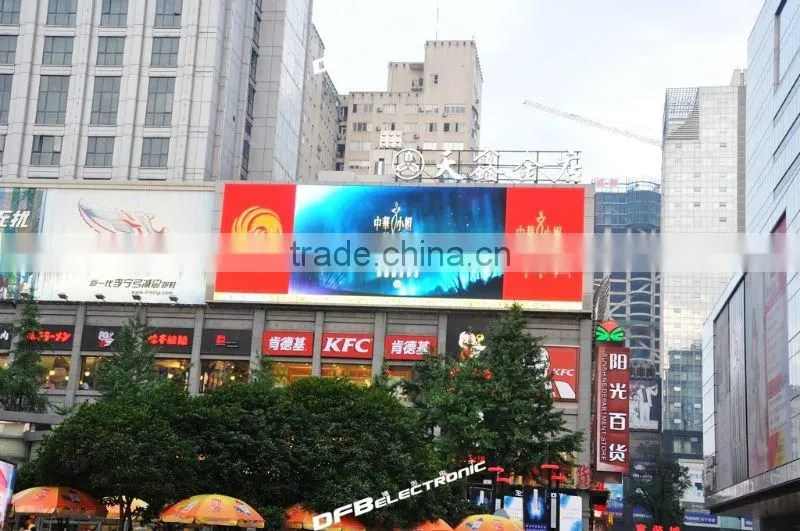

2. Outdoor fixed installation (wall mount, pole stand…)

3. Outdoor perimeter screen

4. Outdoor truck/trailer display

5. Others….

Specifications:

	Spec
Pitch	PH20mm	PH20mm
LED Lamp Model Type	Oval led	Oval led
Pixel Config	1R1G1B	2R1G1B
Brightness (6500Kelvin)	6500 Nits	6500 Nits

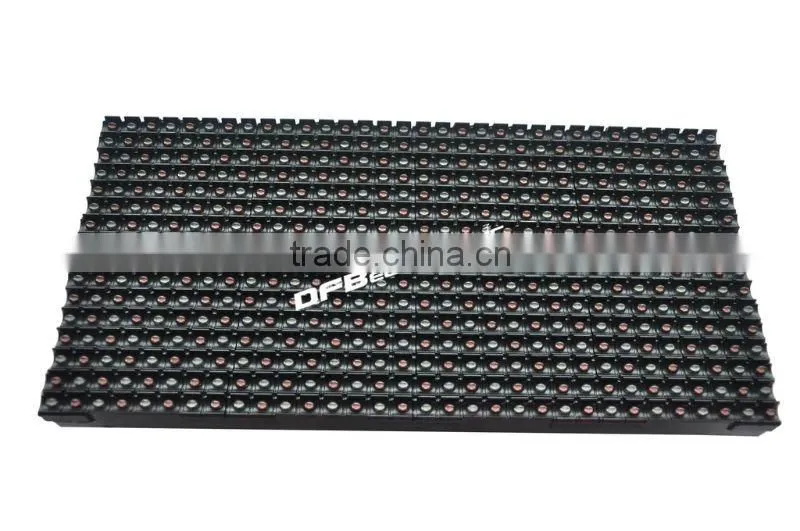

Panel Size	1280×960	1280×960
Panel Resolution	64×48	64×48
IP Rating	IP65/IP54	IP65/IP54
Panel Net Weight(Steel)	70 kgs	70 kgs
Pixel Density (/sqm)	2500	2500
Horizontal Viewing Angle (dgr.)	110	110
Vertical Viewing Angle (dgr.)	60	60
Best Viewing Distance	20m	20m
Recommend Min Screen Size	15 m²	15m²
Input Voltage	AC110V/220, 60/50Hz
Power Consumption -Max (/Sqm)	0.75 kw	1 kw
Power Consumption -Ave. (/Sqm)	0.25 kw	0.35 kw
Driving Mode	Constant Static Current	Constant Static Current
Communication Profile	RS232/WIFI/Network/USB
Gray Scale	16384
Brightness Level	16 Ranks
Refesh Frequency	400-1200Hz Adjustable
Pixels Lost Control	<300ppm
Colors	4.4 Trillion Colors
Operate Temperature	-20°C~70°C
Operate Humidity	10%~95%RH
