P9 led electronic rolling display for stage
Solution for fast install/dismantle rental led display
P9 led electronic rolling display for stagespecifications
Viewing distance: 25-500m
Recommend Minimum Screen size: 18-32 M2
| P9 led electronic rolling display for stage Pixel pitch | 4.5mm | 5.14mm | 6mm | 7.2mm | 9mm |
| P9 led electronic rolling display for stage LED Configuration | SMD2020 | SMD3528 | SMD3528 | SMD3528 | SMD3528 |
| P9 led electronic rolling display for stage LED density/sqm | 49380pixel | 37850pixel | 27777pixel | 19290pixel | 12345pixel |
| P9 led electronic rolling display for stage Module Size | 288*288mm | 288*288mm | 288*288mm | 288*288mm | 288*288mm |
| P9 led electronic rolling display for stage Module Resolution | 64*64pixels | 56*56pixels | 48*48pixels | 40*40pixels | 32*32pixels |
| P9 led electronic rolling display for stage LED cabinet size | 576*576mm | 576*576mm | 576*576mm | 576*576mm | 576*576mm |
| P9 led electronic rolling display for stage LED cabinet Resolutions | 128*128 | 112*112 | 96*96 | 80*80 | 64*64 |
| P9 led electronic rolling display for stage Brightness | 2800nits | 2500nits | 2300nits | 2000nits | 1800nits |
| P9 led electronic rolling display for stage Weight | 10KG/cabinet | 9KG/cabinet | 8.5KG/cabinet | 8KG/cabinet | 7KG/cabinet |
| P9 led electronic rolling display for stage Scan Mode | 1/8 | 1/7 | 1/8 | 1/10 | 1/8 |
| P9 led electronic rolling display for stage LEDs Source | Epistar/CREE | ||||
| P9 led electronic rolling display for stage Freq. | ≥1200Hz | ||||
| P9 led electronic rolling display for stage Grey Scale | ≥12bits | ||||
P9 led electronic rolling display for stage features
1. CNC+Die Casting Aluminum cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Wide range pixel pitch avaible
We designed this renT series display to be full pixel, available pitch 4.5mm, pitch 5.14mm, pitch 6mm, pitch 7.2mm, pitch 9mm, so to satify the your different Class level with just one STYLE!
3. Super Slim
the thickness is 100mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
4. Light Weight
The weight of full panel is only 13.5KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.
5. Convenient and fast installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
6. Super wide viewing angle (140 Degree)
The SMT technology and one line chip encapsulation optimized the viewing performance even at wide viewing angle up to 120-140 degree, the gorgeous color uniform will satisfy the nitpicker's eyes.
7. Easy maintenance
All electrical parts was connected by a driving board inside the aluminum panel, it helps to decide which part faults when problem comes out and can be replaced quickly.
8. High refresh rates and color contrast(16bits original)
In consider of the full range rental application even for the high end TV shows or Talks, we improved the base material supplying with all pure black color ones, it enhances the white/black color contrast greatly, further and more, we raise the refresh rates up to 2000Hz, you'll not worry about the scanning lines be watched by your living camera.
P9 led electronic rolling display for stage module

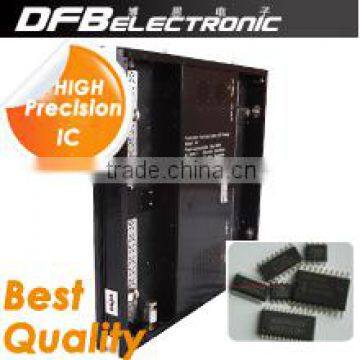

P9 led electronic rolling display for stage cabinets
P9 led electronic rolling display for stage raw martrials
P9 led electronic rolling display for stage Installation
P9 led electronic rolling display for stage Control system
P9 led electronic rolling display for stage projects viewing
P9 led electronic rolling display for stage
Solution for fast install/dismantle rental led display
