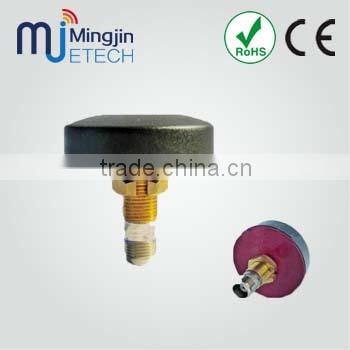

Screw mount Dual frequency GPS GlONASS Antenna
Frequency(MHz):1575/1602
Center Frequency(MHz):1590
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane
Gain Coverage >-4dBi at –90°<0 <+ 90°(over 75% Volume)
Polarization:RHCP
(ii)LNA/Filter
LNA Gain (Without cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1595 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz ;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V):2.7/3.0/3.3/3.0 to 5.0 etc.
DC Current(mA):11 Max
(iii)Mechanical
Weight(gram)<100
Size(mm): Φ46 ×15
Cable Length (m):2,3 etc.
Connector:TNC or others
Mounting:Screw mount
Housing:Black
(iv)Environmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof
