Help CenterSMA/FAKRA Connector Gps Glonass Tracker Gps Glonass Antenna
Related Products
-
Screw Dual Frequency GPS GlONASS AntennaUS$ 2 - 3MOQ: 50 Pieces -
IP67 Rated Antenna GPS/Glonass Puck 3M Sma MaleUS$ 2 - 3MOQ: 50 Pieces
-
High Gain Gps Glonass Antenna AdhesiveUS$ 1.8 - 2.8MOQ: 50 Pieces
-
2015 NEW Free Sample Magnetic Mount Gsm Antenna With Sma Male ConnectorUS$ 1 - 1.5MOQ: 50 Pieces
-
High Gain 850-1900/900-1800 MHz Magnetic Base Gsm Antenna With SMA Male Plug Connector 3m RG174 CableUS$ 1 - 1.5MOQ: 50 Pieces
Specification:

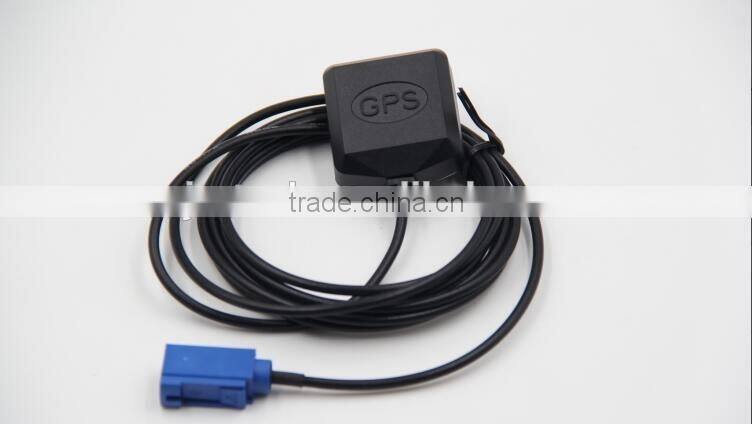

SMA/FAKRA connector gps glonass tracker gps glonass antenna
Frequency(MHz):1575/1602
Center Frequency(MHz):1590
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane
Gain Coverage >-4dBi at –90°<0 <+ 90°(over 75% Volume)
Polarization:RHCP
(ii)LNA/Filter
LNA Gain (Without cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz ;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V):2.7/3.0/3.3/3.0 to 5.0 etc.
DC Current(mA):11 Max
(iii)Mechanical
Weight(gram)<100
Size(mm):37.2×34×11
Cable Length (m):2,3 etc.
Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:Magnetic base
Housing:Black
(iv)Environmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof
More pictures:
gps glonass antenna
