  Industrial Process Control Training Equipment(XK-GK1)for School Lab

(Process control training equipment/School lab equipment)

Industrial Process Control Training Equipment(XK-GK1)for School Lab









Product Overviews

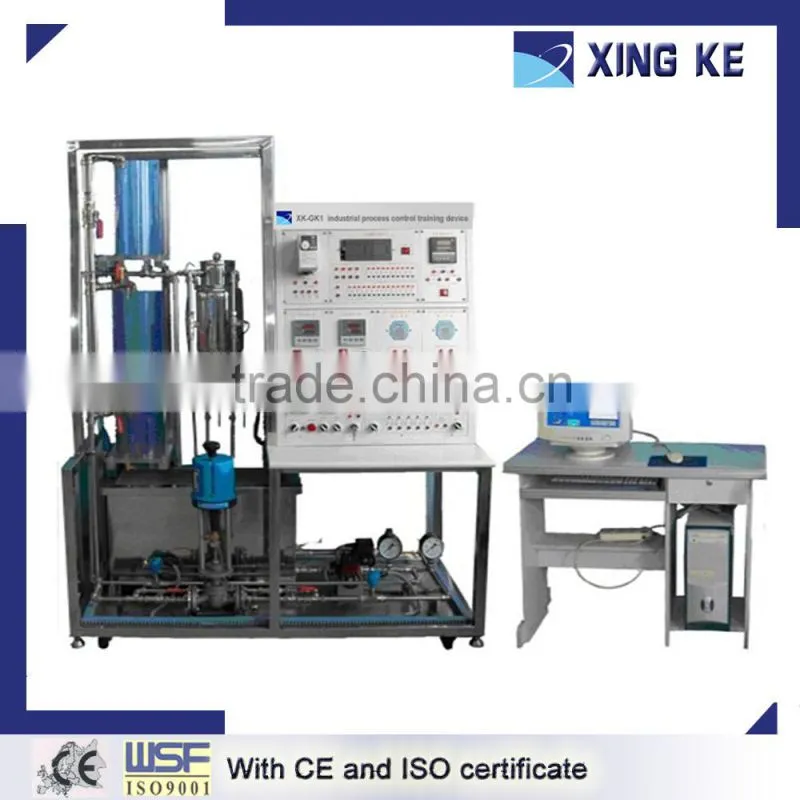

The whole system consists of the experimental object device, instrument control panel, the software system, covers the industry commonly used parameter: temperature, pressure, and flow, liquid level, can realize from single loop, cascade, feed forward-feedback, ratio, lag behind, and the composite control experiment, practice.



This experiment device includes a group organic glass three tank water, each water tank has liquid sensor transmission; at same time with two way water supply system, one way constitutes with three phase stainless steel water pump, control valve, turbine flow meter, another way constitutes with three phase stainless steel water pump, turbine flow meter, by switch valve, any group power supply can reach any water tank. Beside, can realize temperature control.



Technical index

1. Size: 1500 mm x 700 mm x 2000 mm;

2. The power supply: the three-phase AC380V, power < 3000 VA.

3. PLC main computer:Siemens CPU224 CN AC/DC/RLY,14DI/10DO

4. PLC simulate quantity expand module: EM235, 4AI/1AO

5. Converter: Mitsubishi FR-D720S-0.75K

6 .Remote data acquisition module-analog quantity input: ICP-7017, 8 ways analog input

7. Remote data acquisition module-analog quantity output: ICP-7024, 4 ways analog output

8. Intelligent accommodometer: AI-719

9. Stainless steel water pump: power supply AC380V, power: 0.55KW, lift 13m, flow 6m3/h

10. Automatic control valve: power supply AC220V±10%, 50Hz, input signal 4~20mA, input signal 4~20mA

11. Transmission parameter:

(1) Liquid transmission (2pcs): range:0~35cm, signal: 4~20mA

(2) Liquid transmission (1pcs): range: 0~25cm, signal: 4~20mA

(3) Pressure transmission (1pcs) : range : 0~200Kpa, signal : 4~20mA

(4) Turbine flow meter (2pcs) : range :0~5.5m3/h, signal: 4~20mA

(5) Temperature transmission (2pcs): range: 0~1000C, signal: 4~20mA

Experiment list



1) Single tank water level mathematical model test experimental and training



2) Pairs of tank water level mathematical model test experimental and training



3) Single tank water level setpoint control 15 of the experiment and training



4) Pairs of tank water level setpoint control 18 of the experiment and training



5) Boiler interior water temperature-controlled experiments



6) Boiler interior water temperature setpoint control experiment and training



7) Single closed-loop flow control experiment and training



8) Experimental flow ratio control experiment



9) Single closed-loop pressure setpoint control experiment



10) On a water tank water tank level cascade control experiment and training



11) Tank level and the inlet flow cascade control experiment and training



12) The boiler interior water temperature and flow feed forward - feedback control experiment and training



13) DDC control system for single-capacity water tank level mathematical model-based testing laboratory



14) Smart meter AI-719 introduced
