Sensor Practical Training kit ( XK-ESPX )/Didactic Equipment for Teaching Aid
(Sensor kit/Didactic equipment/Teaching aid equipment)
This type of device adopts AC380V/50Hz, three phase five wires connecting, has standard signal source. The equipment is also provided with the typical detecting instrumentation. Power main switch on the table adopts three-pole breaker with leakage protection, also has power source indication,power supply indication, and adopts frame ground protection,emergency button,insulation rubber pad and other safety precautions.
1. Power Supply:
Three Phase Five Wire AC Power
Three phase supply main switch with leakage protection ,Time≤0.1s
Power source indication,Power supply indication
Single-phase source output, with automatic air-break switch
Emergency Button
Ground Protection
Leakage Protection
Over current Protection
2.Experiment Power Supply
±5V,±12V,+30V DC adjustable voltage
0~4~20mA current source (Load resistance≤300Ω)
Each power source has independent control switch and indicating light.
Strong current power supply and control area,output area.
Strong current wiring area
Multi-wiring transit interface
DC display instrument area: DC Ammeter,DC voltmeter
Practice instrument area: Each of Thermal resistance temperature digital display meter,Thermocouple temperature digital display meter,Counter,Time relay.
Signal source area: ±5V,±12V,+30V DC adjustable voltage,5V adjustable voltage,0~4~20mA current source(Load resistance ≤300Ω),each voltage source has independent control switch and indicating light.
Bridge and balance adjustment circuit
1. Thermal resistance PT100
2. Thermocouple
3. Pressure Transmitter
4.Flow Transmitter

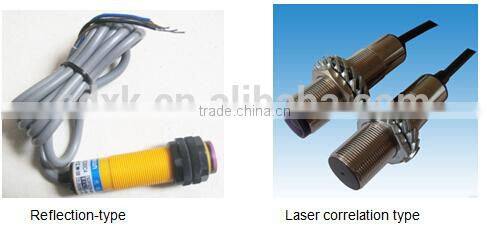

5. Photoelectric Switch

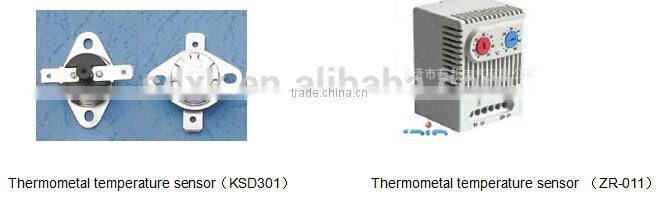

6. Thermometal temperature sensor

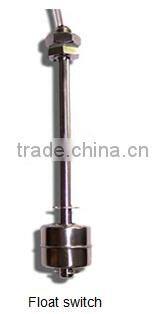

7. Float switch

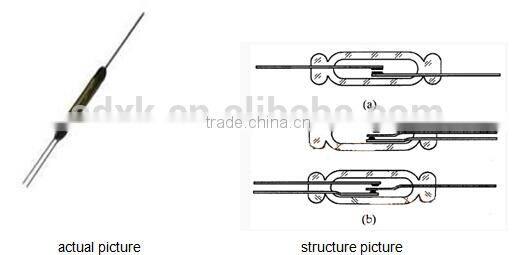

8. Plastic package reed switch
9. Gate Magnet Switch
10. Linear displacement sensor
11. Fiber optic sensor (distinguish black and white color)
12. Ultrasonic ranging module
