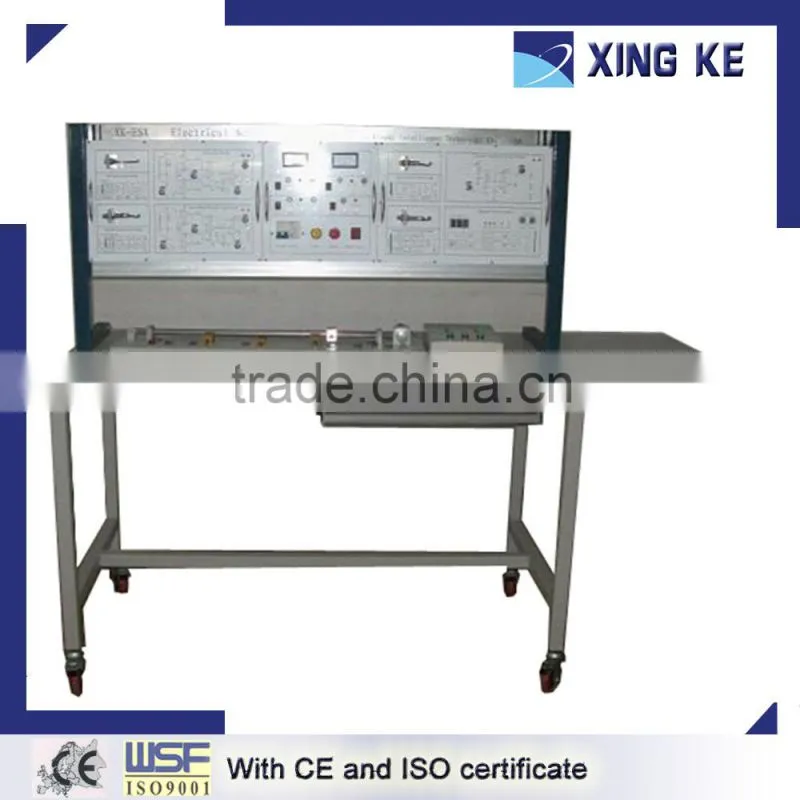

Electrical Sensor Trainer(XK-ESX)/Training kit for School Lab
(Sensor Training Kit/Sensor Trainer/School Lab Training kit)
XK-ESX electrical sensor trainer adopts the modularized design concept and makes experiments run through the whole teaching process. It truly realizes the organic combination of theory and practice. The join of standard signal card and control function expands the experiment range and improves the experiment level. It contributes to the development of course design and graduation thesis and improves the basic operating skills and practical ability of each student as a scientific and technical worker significantly by collecting, switching and analyzing signals in experiment process.
The power of XK-ESX electrical sensor trainer is supplied by AC 220V which is converted and output stable positive and negative DC 12V, positive and negative 5V, positive 24V and is transformed and output AC 8V and 16V. This laboratory apparatus is equipped with one photoelectric switch module, one approach switch module, one Hall switch module and one magnetic switch module which takes teaching effect in experiment of photoelectric type approach switch principle, experiment of inductance approach switch principle, experiment of capacitive approach switch principle and experiment of Hall type approach switch principle respectively. It is also equipped with a set of positioning trolley device which is used for teaching and researching the usage of position switch and comprehensively positioning in many sensor experiments. The experiment panel is equipped with two analog voltage meters (0-30V) to measure the panel signal output and external voltage signal.
1). Power supply: AC220V,50HZ
2). Overall dimension: 1500mm(length)×1000mm (width)×2000mm (height)
1). Experiment of Hall type approach switch principle
2). Experiment of capacitive approach switch principle
3). Experiment of inductance approach switchprinciple
4). Experiment of photoelectric type approach switch principle
5). Experiment of weighing sensor principle
6). Experiment of temperature sensor principle
7). Experiment of transistor temperature sensor principle
8). Experiment of ultrasonic sensor principle
9). Experiment of positioning trolley principle
