Automatic Instrument Control Training Trainer/XK-SXJD-S1A /for School Lab Instrumentation Training
(Instrumentation trainer/School lab Trainer/Training Equipment)

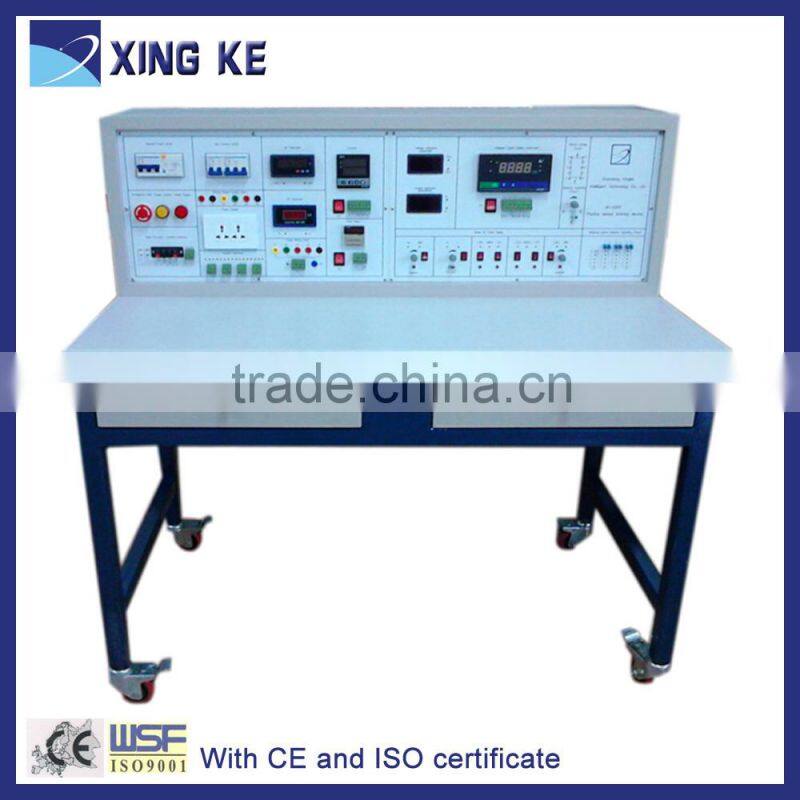

This training system provide a real training industrial scene for instrument and sensor, constitutes with training unit and training bench two parts. Training bench provide various industrial meter, working power and other practical circuit, etc. Training unit in this system installs with sensor real object device, assorting with training bench to complete temperature, pressure, flow, switch quantity, displacement and other various sensor and related instrument training.
(1) Size: 1200 x 700 x 1225mm, weight 50KG
(2) Product power supply: three phase four wires type AC380V voltage, frequency 50/60Hz, power < 1000VA
(3)Experiment power source:
1) 1.25~30V adjustable DC voltmeter
2) 4~20mA adjustable DC current source
3) ±5V voltage source
4) ±12V voltage source
(4) Digital display instrument:
1) Intelligent digital display meter: can input DC voltage signal, DC current signal and various indexing number thermal coupling, thermal resistance, etc, and with 24V feed output.
2) JSS48A-1Z type time relay 1 pcs
3) DM-72 type multiple function time counter rotated meter 1 pcs
4) DC current display instrument 1 pcs, input range 0-200mA, three bit half display.
5) DC voltage display instrument 1 pcs, input range 0-20V, four bit half display
6) Four bit half DC voltmeter 1 pcs, measuring range DC 0~20V
7) Three bit half display DC amperemeter head 1 pcs, measuring range 0~20mA
(5) Detecting training unit:

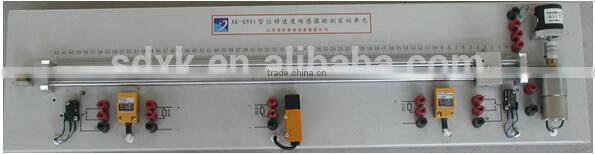

1) XK-SN01 type switch speed sensor detect training unit
Structure form; metallic base + slide block sliding rail + switch scale ruler
Size: L x W x H = 700 x 150 x 50 (mm)
Trail travel distance: 620m
Travel set time: ≤10S
Sensor and mechatronics system configuration as following:
Limit switch 2pcs
Hall switch 1pcs
Approach switch 1pcs
Photoelectrical switch 1pcs
ZG gear motor 1pcs: 12V
Encoder, single phase output, 600 code, 1pcs
Coupling joint

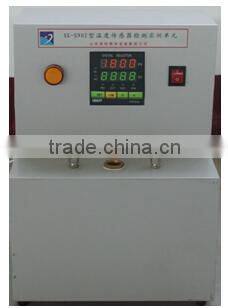

2) XK-SN02 type temperature sensor detection training unit
Structure form: remote control heat liner, built in heat board, temperature control module, temperature control switch, front panel install digital display temperature meter, power switch and indicator light.
Size: L x W x H=300 x 300 x 400 (mm)
Temperature: room temperature -90 degree
Sensor and instrument configuration as following:

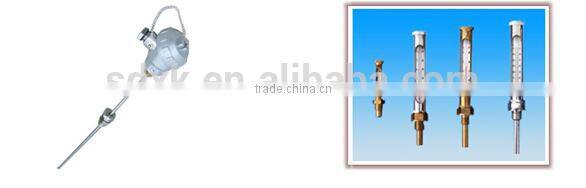

-Graduated Cu50 sheathed thermoresistor temperature sensor
-K index number WRN type sheathed thermocouple temperature sensor (circuit already access with temperature control instrument inside)
-Metallic sheath glass temperature meter
-Digital display temperature meter
-90 degree temperature control switch
Industrial use metallic sheath temperature meter Sheathed thermoresistor, thermocoupling

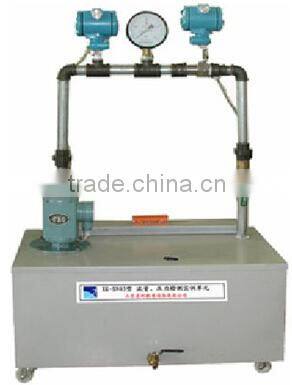

3) XK-SN03 type flow, pressure detection training unit
Structure form: device constitutes with storage tank, circulation loop, water pump, pipe valve, flow sensor, pressure sensor, spring tube type pressure meter, water tank filter type inlet and drain valve, reserved sensor terminals.
Size: L x W x H=500 x 300 x 500 mm
Sensor and instrument configuration as following:
- Two wires type diffused silicon type pressure sensor
-Two wires turbine flow sensor
-Bourdon type pressure meter

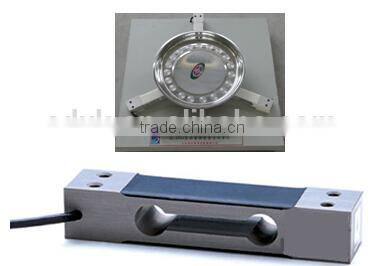

4) XK-SN04 type weight sensor detection training unit
Structure: device constitutes with base, stainless steel tray, weighting transducer group, wiring terminal and farmar outside.
Size: L x W x H=400×400×50(mm)
Weight range: 0-30kg
Configuration as following:
-Stainless steel tray 1pcs
-Weight sensor 3pcs
-Terminal block 1pcs
-Weight 2pcs
(1) K4 jumper line: 10pcs; K2 jumper line 30pcs
(2) Experiment manual: 1 book
1) Commonly use industrial use thermal resistance, thermal coupling sensor choice and application
2) Pressure sensor choice and application training
3) Digital display temperature instrument choice and application training
4) Limit switch, Hall switch, approach switch, optoelectric sensor choice and application
5) Weight sensor choice and serial, parallel application
6) Incremential encoder choice and application in switch detection
7) Bourdon tube pressure meter choice and application
8) Turbine flow sensor choice and application
9) Time counting rotated meter application and training
10) Temperature transformer application and training
11) Temperature switch choice and application
12) Time relay application training
13) Intelligent digital display instrument choice and application
14) Hall switch, approach switch application training
15) Limit switch application
16) Optoelectric switch application
17) Incremental encoder switch detection training, speed detection training
18) Decoder installation training
19) Intelligent digital display meter and digital display temperature control meter wiring, setting, application.
20) Glass tube temperature meter knowledge and application
21) Thermal resistance knowledge, choice, wiring and application
22) Thermal coupling knowledge, choice wiring and application
23) Temperature control switch choice and application
24) Intelligent digital display meter wiring, setting, application
25) Pressure sensor knowledge, choice, wiring, setting, application
26) Flow sensor knowledge, choice, wiring, application
27) Bourdon type pressure meter knowledge, choice, wiring and application
28) Intelligent digital display meter and digital display temperature control meter wiring, setting, application
29) Weight sensor knowledge, choice, wiring and application.
