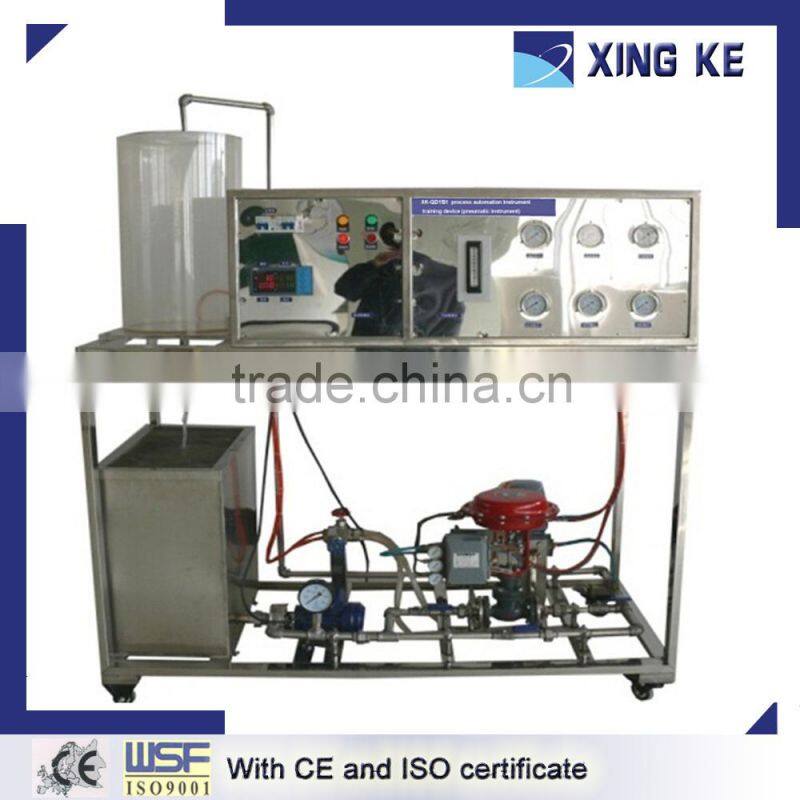

Process Automation Instrument Training Device(Pneumatic Instrument)(XK-QQYB1)for Teaching Aid
(Process control training equipment/School lab device/Teaching aid equipment)
This training device adopts industrial and ship process control system of pneumatic components and security explosion-proof, industrial shockproof instruments, adopt standard pneumatic control signal (20-100 KPa) simulation range change use pneumatic classic PID control system to realize the liquid level, pressure, and flow rate three type parameter closed loop and continuous process control.
The working principle cognition of pneumatic pressure transmitter, pneumatic difference pressure transmitter working principle and practice, pneumatic ribbon indicator working principle of cognition, pneumatic control regulation instrument working principle of cognition, pneumatic valve locator working principle cognition,pneumatic-valve working principle of cognition, air compressor and pressure reducing valve working principle of cognition, orifice flowmeter working principle of cognition, and differential pressure regulator determination, single level set values for the closed-loop control, single closed-loop pressure setting value control, single closed loop flow setting value control, and differential pressure regulator fixed value control . Have a safety protection function.
Size: 1500 mm x 1500 mm x 600 mm;
The power supply: single phase AC220V, power < 1000 VA.
Main components:

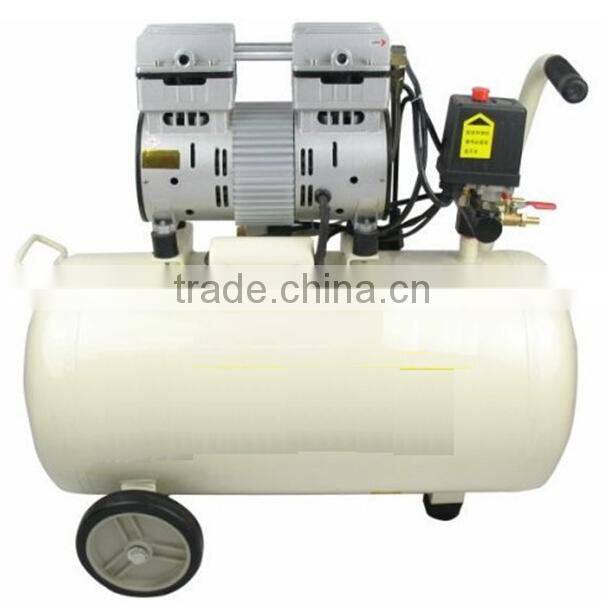

(1) controlled object: the stainless steel frame, organic glass water tank, magnetic pump, water storage tank, orifice board flowmeter, pneumatic difference pressure transmitter), pneumatic ribbon bar indicator, pneumatic control regulation meter, the pneumatic-valve (supporting pneumatic valve locator), gas power converter, air compressor, piping and valves etc.
(2) Control system: the junction boxes, switch power (24 VDC), leakage protect, breaker, control switch, ac voltmeter, data collector, digital meter, control key
(3) Annex: commonly used tools, the product specification.
1) The composition of the system and cognitive
2) Understanding and operation of the inverter
3) The pneumatic pressure transmitter working principle of cognitive
4) The pneumatic differential pressure transmitter works with the migration practice
5) The pneumatic ribbon indicator works cognitive
6) The pneumatic control regulator works cognitive
7) The pneumatic valve positioner works cognitive
8) The pneumatic control valve works cognitive
9) Air compressors and pressure reducing valve works cognitive
10) Orifice flow meter operating principle of cognitive
11) Control valve differential pressure determination before and after
12) Single closed-loop liquid level setpoint control
13) Single closed-loop pressure setpoint control
14) Single closed-loop flow setpoint control
15) Before and after the control valve differential pressure setpoint control
16) Two-loop level setpoint control
