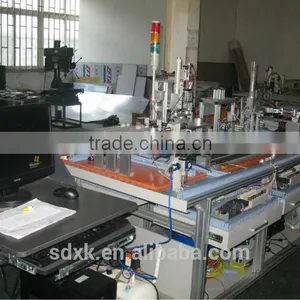

XK-ME2 Automatic Production Line Training & Assessment Equipment
ISO,CE and OEM factory
automatic training equipment
vocational training equipment
educational training equipment
1. Product Introduction:
XK-ME2 consists of aluminum alloy guide rail type training platform, feeding mechanism, process unit, assembly unit, carrying mechanism and sorting unit. Each unit can be as one independently system, also can be one related mechachonics technology training system. They can be combination, installation and debugging freely to realize the target for simulating production function.
XK-ME2 includes each unit working station, automatic production line, pneumatic system, inverter, PLC high speed pulse and counter, servo motor, analog, networking technology, HC interface, configuration technology etc.
material delivery and sorting mechanism, etc. Mechanisms are closely connected, students are freely to assemble and debugging
2. Technical Parameter:
1)Working Source: Three phase five wire system AC 380 V±10%, 50 Hz;
2)Equipment overall size: 2100mm×1000mm×1500mm;
3)Computer desk overall size: 600mm×530mm×1000mm;
4)Whole set consumption apparent power: ≤2 KVA
5)Frame material: aluminium steel structure
3. Main Configuration:
3.1 Experiment table: aluminum steel structure, with roller, as the installation carrier of automatic production line mechanical and electrical equipment, each equipment can be free and flexible installation
3.2 Feeding unit: Mainly composed by workpiece warehouse, workpiece lock tight device, workpiece push out device. This unit equipped with linear cylinder, photoelectric sensor, positioning device etc.
Basic function: Delivery the workpiece in warehouse to platform, for the carrying unit manipulator to grab.
3.3 Assembly unit: mainly includes feeding mechanism, rotation feeding unit, manipulator assembly unit, materials platform.
Basic function: finish the process that embeding the black & white cylinder to the workpiece that already processed.
3.4 Process unit:
Mainly include sliding platform, simulation punching etc.
Basic function: delivery workpiece to below of punching mechanism, finish one time of punching process action, then delivery back to material platform, waiting for take out by manipulator.
3.5 Carrying unit: mainly consists of servo motor and drive, four freedom degree manipulator, linear motion unit, proportional conveyer mechanism, stands, synchronizing wheel, synchronizing belt.
Basic function: through the accurate positioning, grab workpiece, and delivery it to next appointed position.
3.6 Sorting unit: mainly includes conveyer mechanism, three-phase motor power unit, sorting pneumatic components, sensor detection unit, feedback and positioning mechanism, etc. Sorting unit basic function is sorting for the workpiece that finish last unit processed, make different colors of artifacts come from the different material trough.
3.7 PLC and converter: brand user can choose as following: SIEMENS, Mitsubishi, AB, etc.
3.8 Touching screen: TPC7062KS, 7 inch color touching screen
3.9 Silence pump: 1 set
3.10 Tool::1 set
3.11 Experiment manual: 1
4. Training Items
4.1 Automatic detection technology using training
1) Understanding and application of magnetic switch
2) Understanding and applications of the photoelectric switch
3) Understanding and applications of the optical fiber photoelectric proximity switch
4) Understanding and applications of the inductive proximity switch
5) Understanding and application of photoelectric encoder
4.2 Pneumatic technology application training
1) Single rod cylinder installation and debugging
2) Double rod cylinder installation and debugging
3) Rotating cylinder installation and debugging
4) Single control electromagnetic directional valve installation and debugging
5) Double control solenoid directional valve installation and debugging
6) Magnetic switch installation and debugging
7) Filtering deceleration valve installation and debugging
4.3 PLC programming training
1) PLC hardware and software using
2) PLC instruction training
3) PLC control of feeding unit
4) PLC control of processing unit
5) PLC control of assembly unit
6) PLC control of carrying unit
7) PLC control of sorting unit
8) PLC control of automatic production line
4.4 PLC network establishing training
1)PLC network introduction
2)PLC network communication instruction
3)PLC networking training
4.5 Converter application training
1) BOP operation panel control frequency converter operation
2) Inverter inching operation
3) Frequency converter running based on external potentiometer control
4) Frequency converter running based on external voltage control
5) Converter analog output test
6) Converter switch value output test
7) Frequency multi-stage speed control
8) PLC control frequency converter running
4.6 Motor drive and position control training
1) Start control of the three-phase asynchronous motor
2) Three-phase asynchronous motor forward and reversal control
3) Three-phase asynchronous motor frequency control
4) Understanding of the servo motor
5) Servo motor speed control
6) Servo motor position control
4.7 Mechanical system installation and debugging
1) Feeding unit installation and debugging
2) Processing unit installation and debugging
3) Installation and debugging of assembly unit
4) Carrying unit installation and debugging
5) Sorting unit installation and debugging
4.8 System maintenance and fault detection training
1) Feeding unit system maintenance and fault detection
2) Processing unit system maintenance and fault detection
3) Assembly unit system maintenance and fault detection
4) Carrying unit system maintenance and fault detection
5) Sorting unit system maintenance and fault detection
4.9 Touch screen configuration programming training
1) Touch screen acknowledge training
2) Touch screen picture making training
3) Touch screen window switching training
4) Touch screen and PLC communication application training
Company Profile
Shandong Xingke Intelligent Technology Co., Ltd.
Company Profile
XingKe Company is a shareholding and high-tech enterprise specialized in research and development, manufacture and sales of teaching apparatuses. Our company's comprehensive strength is leading China vocational education teaching equipment industry. We are the number one supplier of intelligent teaching equipment in China. We are in the international leading position in metallurgy professional virtual-simulation training products fields. Also we are the navigator of practical training & teaching apparatus in China.
Our company was established in 1999. We have more than 300 employees, more than 85% of them are professional technicians. We have more than 30 middle and senior administrators, and more than 80 middle and senior R&D engineers. Our company's registered capital is 12 million Yuan, and fixed assets is 50 million Yuan. Our average annual domestic sales is 160 million Yuan, and average annual exporting sales is more than 4 million Dollars.
Our product covers many fields of Chinese educational equipment industry (including electrotechnics, electronic technique, power electronics, motor control, electric automatization, electric power automation, pneumatic & hydraulic, mechatronics, process control, sensor and testing, intelligent building, numerically controlled lathe, automobile maintenance, air-conditioner refrigeration, virtual-simulation of production line, virtual-simulation training for special equipment (in engineering field), etc.). We own 28 series and more than 280 kinds of production. We own dozens of patented product, and we mass exporting most of the production to more than 20 countries and regions all over the world.
Our company area covers more than 1,200 square meters for research&development office. We also have a powerful R&D (research and development) management team. We have built technology center, research laboratory, industrial park, nationwide marketing-network and customer service center.
Our industry park is located in Mingshui Development zone, Jinan City. It covers an area of 17,766 square meters. The industry park is divided into several function zones: comprehensive management center, training center, product gallery, welding workshop, metal plate workshop, spray coating workshop, machining workshop, electronics assembly workshop, product adjusting workshop, etc.
We have won many honors. We are the technology center, software engineering and technology center, engineering research center of the province, we are the excellent innovating team in Jinan City, Chinese vocational teaching aid equipment development center, national informatization CEAC vocational-skills training R&D center and others. By our own achievements and power, Xingke has got the approval of relevant national department, and our products are supported and put emphasis on by National Development and Reform Commission, Ministry of Education, MOST(Ministry of Science and Technology) and Ministry of Labour and MII(Ministry of Information Industry). Our company is also the member of Chinese Teaching Equipment Import and Export Corporation.
"The responsibility overweighs the benefit, science and technology propels the education" is the core ideology of Xingke Company, and top-ranking products and top-ranking service are our foundation.
We expect cooperation, communication, win&win and being friends with you.
