PLC trainer ,Pneumatic Training, Mechanical and Electrical Integration Training Equipment XK-JD4
- 10 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Mechatronics Training Assessment Equipment XK-JD3B Mechanical and Electrical Integration Training Equipment
- Mechatronics Training System For Technical Schools XK-JD3A Mechanical and Electrical Integration Training Device
- Teaching aid equipment, XK-CF1A material sorting training model
- Mechatronics Lab Didactic Equipment, Material Sorting Training Model, Production Line Trainer
- Digital DC servo motor closed-loop control training device XK-MMT1A
- Bending Testing Machine Teaching Equipment
Product Details
Place of Origin: | Shandong, China | Brand Name: | XING KE | Model Number: | XK-JD4 |
Packaging Details
plywood package
Product Description
XK-JD4 Mechanical and Electrical Integration Lab equipments mechanical
ISO,CE and OEM factory
Mechanical and Electrical Equipment
Pneumatic Training
PLC trainer
Mechatronics lab
1. System overview

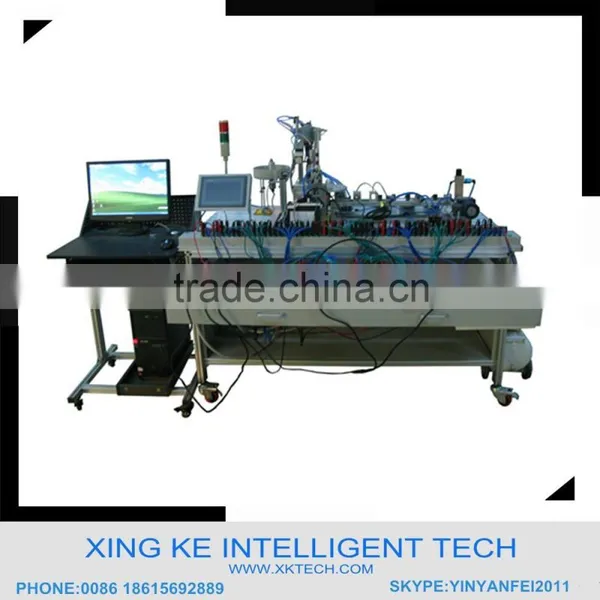

XK-JD4 mechanical and electrical integration training device consists four units that are installed on the aluminum alloy guide rail type training platform, such as feeding unit, transport unit, processing and assembling unit and sorting unit. Control module consists of five modules as the power supply module unit, button module unit, PLC module units module, frequency converter unit, touch screen module unit. Among these five units, each working unit can form a independent system, and meanwhile it is also a training system of mechatronics and relative techniques. The whole structure adopt open type and dismounting type, the training device is used for assembling of mechanical part, according to the mechanical part which is now available ,can assemble production training equipment, and also can add mechanical part to assemble other product training device, make the whole device can be flexibly assembled to mechanical and electrical integration device that will have simulation of product function according to teaching and learning or competition requirement. The module adopt standard structure and draw type module place frame, strong interchangeability ;According to principle of production function and integrated learning function to determine the module content, make the teaching and learning or competition can conveniently select the required module.
Material feeding unit consists of feeding turntable, drive motor(DC24V). material bracket, discharging port sensor. According to requirement, the basic function of feeding unit is to send out the workpiece that is placed in the bin and waiting for processing to the material platform, so that the transport unit manipulator can grab the workpiece and send them to other working unit
Transport unitis composed of a pneumatic mechanical arm, pneumatic mechanical arm has four freedom degrees actions, includes cantilever stretching out and drawing back, arm up and down, tilt cylinder rotary and paw releasing and firmly grasp. Its function is to transport the workpiece to processing and assembling unit from material feeding unit.
Processing and assembling station unit has 2 functions: piece work manufacturing and assembling, work manufacturing is mainly to simulate workpiece’s drilling process, the drill is driven by DC motor, the drill’s up and down movement is driven by step motor. The workpiece movement is driven by servo motor. After finish manufacturing, the servo motor will send the workpiece to assembly unit. The workpiece assembly is to configure the chipware into the workpiece’s inner hole by two cylinder of the assembly unit mutual effect, after assembly, it will get a suite, then the servo motor will send the assembled workpiece to sorting station
Sorting unitconsists of belt conveyor. Detection sensor, sorting cylinder. According to different end product suite relationship, the station rationally distribute the end product to each bins. Users can use 3 sensors that are provided by the equipment to carry out sorting training of up to 9 kinds suit.
2. Main technical parameters
2.1 AC power supply: three-phase AC 380V±10% 50 Hz
2.2 training table dimension: long× wide ×high=1490mm×880mm×840mm
2.3 device consumption: 1kV·A
2.4 button indicator module: Provide many kinds and different function buttons and indicators (DC24V), emergency buttons, change-over switches, buzzers. All the port adopt secure socket to connect, internally installed switching power supply (1 group of 24V/6A, 1 group of 12V/2A), provide power supply to external equipment for working.
2.5 Siemens S7-200 cpu226 module: The module provide CPU226 AC/DC/RLY and digital value extended module EM222 with relay output,CPU226 integrated 24 input/16 output, totally is 40 digital value I/O point, can connect 7 extended module, largest extended to 248 path digital value I/O point or 35 path analog value I/O point, EM222 relay output module integrate 8 output point.
2.6 Siemens S7-200 CPU224 module: The module provide CPU224 DC/DC/DC, integrated 14 input/10 output, totally is 24 digital value I/O point, can connect 7 extended module, largest extended to 168 path digital value I/O point or 35 path analog value I/O point
2.7 Frequency converter module: The module provide Siemens MM420,0.75KW, AC380 frequency converter, 5K potentiometer is used for analog control training of the frequency converter.
3. Product accessories
3.1 Material
Metal workpiece: 3pcs
White plastic workpiece: 3pcs
Black plastic workpiece: 3pcs
Metal core piece: 3pcs
White plastic core piece: 3pcs
Black plastic core piece: 3pcs
3.2 Jumper line: 240pcs
3.3 PLC programming cable: 1pce
3.4 Touch screen programming cable: 1pce
3.5 the communication cable between PLC and touch screen: 1pce
3.6 Experiment manual: 1pce
3.7 Mute air pump: 1set
4. Training project
4.1 PLC program training
Feeding mechanism control training
Pneumatic manipulator transmit mechanism control training
Processing and assembling mechanism control training
End-product material sorting mechanism control training
Mechatronics comprehensive control training
4.2 Frequency converter basic training
Operation panel controls frequency converter running training
Frequency converter inching operation training
Based on the external potentiometer to control frequency converter operation training
Based on the external voltage to control frequency converter operation training
Frequency converter analog output test training
Frequency converter digital output test training
Frequency converter multi-stage speed control training
PLC is to control frequency converter operation training
4.3 touch screen technical training
Touch screen understanding training
Touch screen picture making training
Touch screen window switching training
Application training of touch screen and PLC communication
4.4 pneumatic technical training
Single out rod cylinder installation and debugging training
Double rod cylinder installation and debugging training
Rotation cylinder installation and debugging training
Single-control electromagnetic directional valve installation and debugging training
Double-control electromagnetic directional valve installation and debugging training
Magnetic switch installation and debugging training
Filtering deceleration valve installation and debugging training
4.5 sensor detection technical training
Photoelectric sensor understanding and debugging training
Proximity sensor understanding and debugging training
Hall sensor understanding and debugging training
Optical fiber sensor understanding and debugging training
4.6 Disassembling and regulating training of mechanical structure
Feeding mechanism installation and debugging training
Belt conveying mechanism installation and debugging training
Pneumatic manipulator mechanism installation and debugging training
Processing and assembling mechanism installation and debugging training
End-product material sorting mechanism installation and debugging training
Mechatronics comprehensive system installation and debugging training
4.7 system maintenance and fault detection training
Feeding mechanism maintenance and fault detection training
Belt conveying mechanism maintenance and fault detection training
Pneumatic manipulator mechanism maintenance and fault detection training
Processing and assembling mechanism maintenance and fault detection training
End-product material sorting mechanism maintenance and fault detection training
Mechatronics comprehensive system maintenance and fault detection training
