Mechatronics Training System For Technical Schools XK-JD3A Mechanical and Electrical Integration Training Device
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Teaching aid equipment, XK-CF1A material sorting training model
- Mechatronics Lab Didactic Equipment, Material Sorting Training Model, Production Line Trainer
- Digital DC servo motor closed-loop control training device XK-MMT1A
- Bending Testing Machine Teaching Equipment
- DC Servo Motor Teaching Model
- DC Servo Motor Training Apparatus
Product Details
Place of Origin: | Shandong, China | Brand Name: | XING KE | Model Number: | XK-JD3A |
Packaging Details
Dimensions: (Height) 1800mm*(Length) 1500mm*(Width) 630mm
Product Description

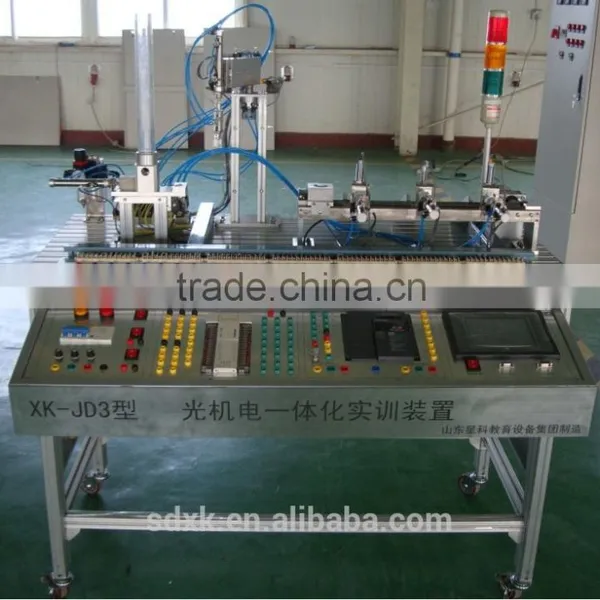

XK-JD3A Mechanical and Electrical Integration Training Set
1. Product Overview:
XK-JD3A Mechanical and Electrical Integration Training Set consists of aluminium profile training bench,feeding unit,carrying manipulator unit,belt conveyor unit,detecting unit,sorting unit,active function alarming light,power supply module,PLC,frequency convertor,touching screen,silence air pump,accessories etc.
XK-JD3A contains PLC technology, inverter technology, pneumatic technology, belt transmission technology, sensor detection technology, communication technology, etc. XK-JD3A training includes mechanical and electrical equipment installation, PLC application technology, electrical control technology, automatic control technology, mechanical and electrical integration technology, professional knowledge module single training project teaching, but also involves mechanical and electrical equipment, pneumatic systems, automatic control system comprehensive skills training.
Feeding unit:
This unit function is deliver the materials from stock bin to the position of lifting, there is one optoelectronic switch at lifting position to detecting material is delivered in place or not.
Carrying manipulator unit:
It will finish four of freedom degree action, includes cantilever stretch out and back,arm up and down,tilt cylinder rotation and paw release & tight. This unit used for delivering materials from feeding unit to belt conveyor unit.
Belt conveyor unit:
This unit consists of three phase gear motor (380V) 1set; flat belt 1pce.
Detecting unit:
This unit consists of kinds of detecting sensors, it will detect and distinguish three kinds of Materials
Sorting unit:
This unit consists of air cylinder and material trough, it will sort three kinds of materials to 3 material troughs.
2. Main Parameters:
2.1 Size: 1200 mm x 720 mm x 750 mm;
2.2 The power supply: the three-phase AC380V, power < 500 VA.
2.3 PLC module: User can choose the PLC brand & model: Siemens,Mitsubishi,Schneider,Omron,AB or other brands
2.4 Inverter module: User can choose the brand & model: Siemens,Mitsubishi,Schneider,Omron,AB or other brands
2.5 Touch screen module: TCP7062KX, 7 inch color touching screen
3 Accessories
3.1 Gas source processor:
Working power source: AC 220V±10% 50Hz,motor output: 0.55kW,
Equipped with motor compressor,capacity: 15L,Rated output air pressure: 1Mpa,
Noise grade: 50dB
3.2 Jumper wires: 50pcs
3.3 PLC programming cable: 1pce
3.4 Touching screen programming cable: 1pce
3.5 PLC and touching screen communication cable: 1pce
3.6 Experiment English book: 1pce
3.7 Material block: 6pcs
4. Training Projects
4.1 PLC programming training
1)Boolean instruction training
2)Timer instruction training
3)Counter instruction training
4)Transmit instruction training
5)Data shift instruction training
6)Arithmetic operation instruction training
7)Logic instruction training
8)Stepper instruction training
9) Feeding mechanism control training
10) Pneumatic manipulator deliver mechanism control training
11) The finished material sorting mechanism control training
12) Mechatronics integration control training
4.2 Inverter basic training
1) BOP operation panel control frequency converter running training
2) Inverter inching operation training
3) Based on external potentiometer control frequency converter running training
4) Based on external voltage control frequency converter running training
5) Converter analog output test training
6) Inverter switch output test training
7) Frequency converter multi-stage speed control training
8) PLC control frequency converter operation training
4.3 Touch screen technology training
1) Touch screen identification training
2) Touch screen picture making training
3) Touch screen window switch training
4) Touch screen and PLC communication application training
4.4 Pneumatic technology training
1) Single rod cylinder installation training
2) Double bar cylinder installation training
3) Rotating cylinder installation training
4) Single control electromagnetic directional valve installation and debugging
5) Double control solenoid directional valve installation and debugging
6) Magnetic switch installation training
7) Filtering deceleration valve installation and debugging training
4.5 Sensor detection technology training
1) Photoelectric sensor debugging training
2) Proximity sensor debugging training
3) Hall sensor debugging training
4) Electromagnetic sensor debugging training
4.6 Mechanical structure dismantling and regulation training
1) Feed driving gear coaxial installation and training
2) Belt conveyor mechanism installation and debugging of the training
3) Pneumatic manipulator mechanism installation and debugging of the training
4) Finished material sorting mechanism installation and debugging training
5) Mechatronics integrated system installation and debugging training
4.7 Training for system maintenance and fault detection
1) Feeding transmission mechanism maintenance and fault detection
2) Belt Conveying mechanism maintenance and fault detection
3) Pneumatic manipulator mechanism maintenance and fault detection
4) Belt finished product sorting mechanism maintenance and fault detection
5) Mechatronics integrated system maintenance and fault detection
