1. Product overview

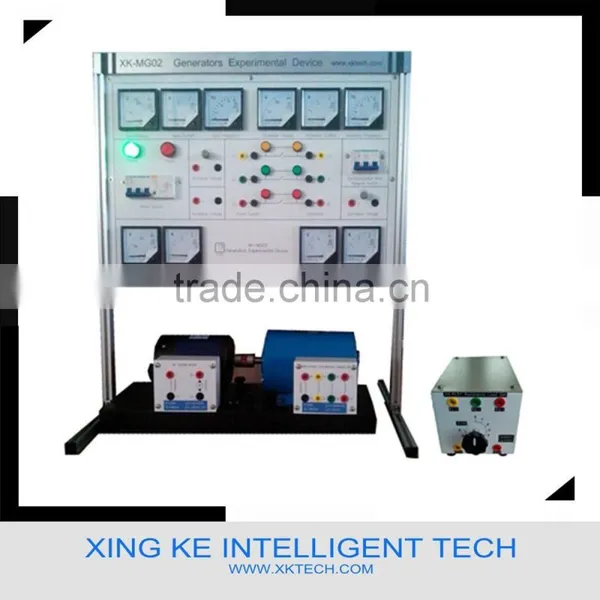

XKMG02 type DC motor AC generator practical training bench is a type of electricity generating system practical training platform, widely use in colleges and vocational school for DC motor speed regulated and AC generator gird connection experiment, equips with three phase resistance load module. With signal source, no need external access motor control power source, beautiful appearance, easy to installation and use.
Practical training device with leakage protection, short circuit and other protection, to guarantee experiment electricity safety.
2. Experimental bench technical parameter
2.1 Size: 632mm*400mm*740mm (L*W*H)
2.2 Power supply: three phase four wires AC380V±10%,50HZ,≤300W
2.3 Three phase power supply main switch with leakage protection,
2.4 With accident sudden stop button, power supply indicator.
3. Signal source technical indicator
3.1 DC0~220V adjustable DC power source
3.2 AC three phase 380V
3.3 DC0~12V adjustable DC power supply
4. Experimental bench accessories
4.1 Experimental wires: 20 PCS
4.2 Generator group 1 set
4.3 Load resistance box 1 pcs
5. Experiment list
5.1 Separated DC motor speed adjustable circuit
5.2 Three phase synchronous motor running characteristics
5.3 Three phase synchronous motor with load experiment
5.4 Three phase generator gird running
