Electrician and Electronic and Motor Traction Training Device for XK-DT2

Electrician and Electronic and Motor Traction Training Device for XK-DT2 thumbnail-1
Electrician and Electronic and Motor Traction Training Device for XK-DT2 photo-1
US$ 10 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XING KE
Model Number:
XK-DT2
Contact Supplier Request Quote Chat Now
Shandong Xingke Intelligent Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name XING KE
Model Number XK-DT2

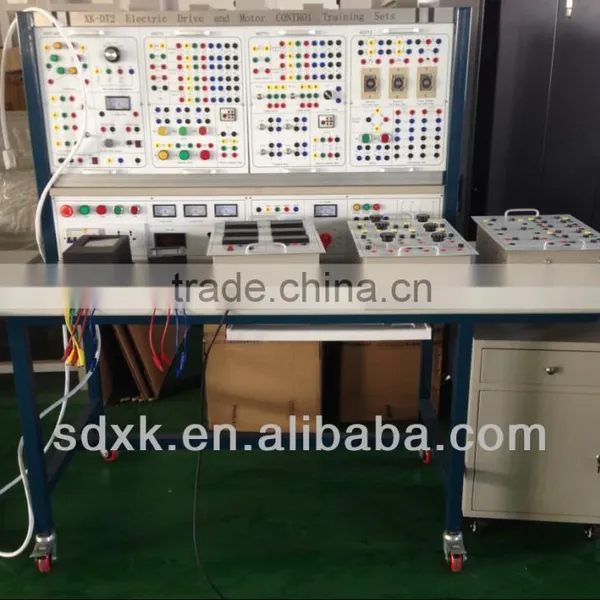

1. Product overview

XKDT2 electric traction and motor control training bench equips with motor control circuit need various component, experiment

device can operate DC motor, transmission, single three phase asynchronous motor, synchronous motor, relay contact control,

electric traction (electrical control) training, good comprehensiveness; can operate manufacturing machine electrical fault analyze training; equips with various relay, contactor, indicator light, button, fuse, etc, can operate motor electrical control training.

Adopts with module structure, easy to change hanging box, expand and update. Experiment desk with wheels can freely move, table is made of fireproof, waterproof, high density board.

2. Product main technical indicator

2.1 Size: 1600 mm x 730 mm x 1600 mm

2.2 Power supply: the three-phase AC380V, power < 1500 VA

2.3 Three phase power main switch with leakage protection

2.4 With accident sudden stop button, power indicator, power supply indicator

3. Signal source technical indicator

3.1 Voltage source DC 24V, capacity≥2A

3.2 Voltage source AC 24V, capacity≥2A
3.3 Voltage source DC 220V, capacity≥2A

3.4 Adjustable DC voltage source signal 0~220V, capacity 2A

3.5 Adjustable DC current source signal 4~20mA

3.6 Adjustable AC voltage signal source 0~380V

4. Experiment accessories

4.1 Experiment guide wire 20pcs

4.2 Compound excited DC generator 1pcs

4.3 DC shunt excited motor 1pcs

4.4 Three phase squirrel type asynchronous motor 1pcs

4.5 Three phase winding type asynchronous motor 1pcs

4.6 Three phase synchronous motor 1pcs

4.7 Three phase double speed asynchronous motor 1pcs

4.8 Single phase capacitor run motor 1pcs

4.9 Dynamometer and motor guide rail 1pcs

5. Experiment list

5.1 DC motor experiment

1) DC motor knowledge experiment

2) DC generator

3) DC shunt excited motor

5.2 Transmission experiment

1) Single phase transmission no load, load and short circuit characteristics

2) Three phase transmission no load, load and short circuit characteristics

3) Single phase transmission parallel connect running

4) Three phase transmission parallel connect running

5.3 Asynchronous motor experiment

1) Three phase asynchronous motor running characteristics

2) Three phase asynchronous motor parallel connect running

3) Three phase asynchronous parameter determination

4) Three phase asynchronous motor

5.4 Relay contact control, electric traction (electrical control) experiment

1) Three phase asynchronous motor inching and self lock control circuit

2) Three phase asynchronous motor positive and negative turn control circuit

3) Three phase asynchronous motor Y-Δ reduced voltage starting control circuit

4) Three phase asynchronous motor energy consumption breaking control

5) Three phase asynchronous motor reverse braking control

6) Two bench three phase asynchronous motor start sequence control

7) Double speed asynchronous motor control circuit

8) Working bench automatic loop round circulate control circuit

9) Three phase motor two places control circuit

10) C620 machine tool electrical control circuit

11) Electric hoist electrical control circuit experiment

12) Single phase capacity inching asynchronous motor control

5.5 Motor characteristic experiment

1) DC separately excited motor under different state mechanical characteristics

2) Three phase asynchronous motor under different state mechanical characteristics

3) Three phase squirrel cage asynchronous motor working characteristics

4) DC separately excited motor working characteristics

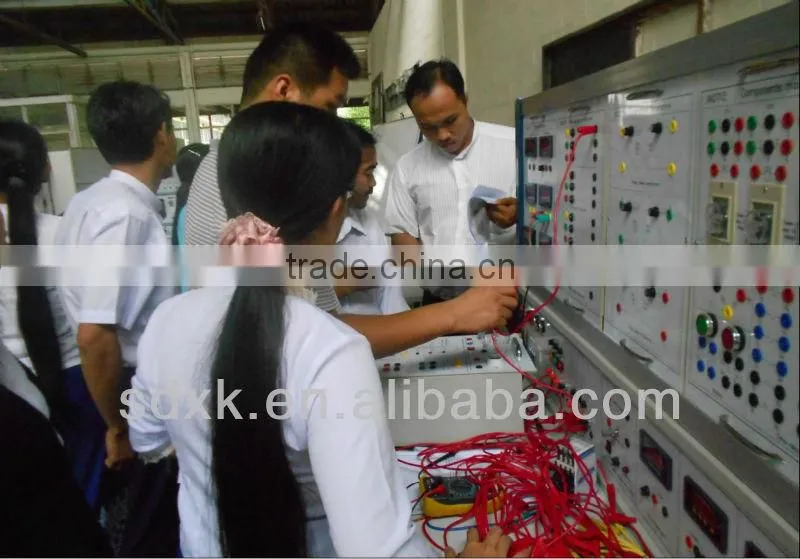

Electrician and Electronic and Motor Traction Training Device for XK-DT2



Electrician and Electronic and Motor Traction Training Device for XK-DT2Electrician and Electronic and Motor Traction Training Device for XK-DT2
