1. Product overview:

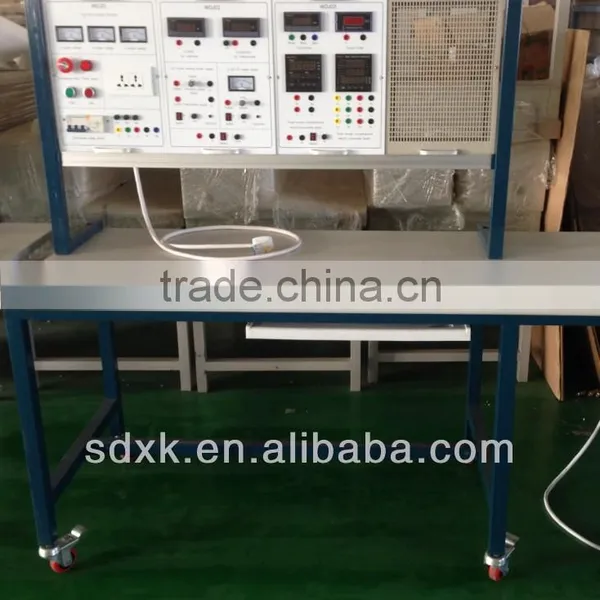

XKDJZJW2 type motor assembly maintenance examine training device can dismantle, rewind, maintenance, assembly, except these, it also can insulation resistance measurement to motor and transmission, winding group DC resistance measurement, winding group power frequency pressure-tight test and other test. This training bench equipped with single phase, three phase comprehensive electrical parameter test

instrument, student can master various instrument wiring and debug, and skill training for motor dismantle, rewinding, assembly and

maintenance.

It adopts with module structure, convenience to change hanging box, easy for expand and update. Experiment bench with wheels

and moveable, desk table is made of fireproof, waterproof, wear-resistant high density board.

2. Experiment bench technical parameters:

2.1 Product size: 1600mm*700mm*1500mm

2.2 Power supply: the three phase AC380V, power<1500VA

2.3 Three phase power supply main switch with leakage protection,

2.4 With accident sudden stop button, power supply indicator, power indicator

3. Signal source technical parameter

3.1 Three phase pressure regulating output: 0~430VAC adjustable output, capacity 1.5KVA (customized as user requires)

3.2 DC voltage regulation module output: DC0~30V 2A

3.3 DC motor control module: armature 0~220V adjustable, excitation 220V fixed output

3.4 Withstand voltage experiment power supply: AC0-2000V 1.5KVA (can customize as user requires)

4. Experiment bench accessories

4.1 Experiment guide wire 20pcs

4.2 Three phase universal motor winding module 1 set

4.3 Hand electronic counting winding machine 1 pcs

4.4 Single phase squirrel cage asynchronous motor 1pcs

4.5 Three phase squirrel cage asynchronous motor 1 set

4.6 Separate excited DC motor 1pcs

4.7 Single phase transmission 1pcs

4.8 Intelligent single phase three phase comprehensive electricity parameter test instrument each 1pcs

4.9 Experiment manual 1 book

5. Experiment list

5.1 Data recording and calculating of transformer before dismantling

5.2 Dismantling of transformer

5.3 Winding of transformer

5.4 Assembling of transformer

5.5 Insulating resistance measurement

5.6 AC withstand voltage test of transformer

5.7 DC resistance measurement

5.8 Transformer same-polarity distinguishing

5.9 Transformer no-load voltage ratio testing

5.10 Transformer no-load running

5.11 Transformer short-current

5.12 Data recording and calculating of single-phase capacitor operation motor before dismantling

5.13 Dismantling of single-phase asynchronous motor

5.14 Winding of single-phase motor

5.15 Assembling of single-phase transformer

5.16 Insulation resistance testing

5.17 AC withstand voltage of single-phase asynchronous motor

5.18 DC resistance testing

5.19 Single-phase asynchronous motor with no load

5.20 Short current of single-phase asynchronous motor

5.21 Repairing and testing of 1.1kW three-phase squirrel cage asynchronous motor

5.22 Data recording and calculating of three-phase squirrel cage asynchronous motor before dismantling

5.23 Dismantling of three-phase squirrel cage asynchronous motor

5.24 Winding of three-phase squirrel cage asynchronous motor

5.25 Assembling of three-phase squirrel cage asynchronous motor

5.26 Insulation resistance testing

5.27 AC withstand voltage of three-phase squirrel cage asynchronous motor

5.28 DC resistance testing

5.29 Winding head-end and tail-end distinguishing of three-phase squirrel cage asynchronous motor

5.30 Three-phase squirrel cage asynchronous motor with no load

5.31 Short current of three-phase squirrel cage asynchronous motor

5.32 Over speed experiment of three-phase squirrel cage asynchronous motor

5.33 Separated excitation DC motor repairing and testing

5.34 Data recording and rewinding of separated excitation DC motor before dismantling

5.35 Calculating and confirming of data

5.36 Winding dismantling of separated excitation DC motor

5.37 Coil coiling of separated excitation DC motor

5.38 Inserting line and assembling of separated excitation DC motor

5.39 Insulation resistance of separated excitation DC motor

5.40 Position confirming of electric brush centre line of separated excitation DC motor

5.41 DC resistance measurement in cold state of separated excitation DC motor

5.42 AC withstand voltage test of separated excitation DC motor

5.43 No load test of separated excitation DC motor

5.44 Over speed test of separated excitation DC motor

5.45 Tachometer applying

5.46 Torque meter applying

5.47 Magnetic powder braker applying

5.48 Intelligent single-phase integrated electric parameter measurement instrument applying

5.49 Intelligent three-phase integrated electric parameter measurement instrument applying
