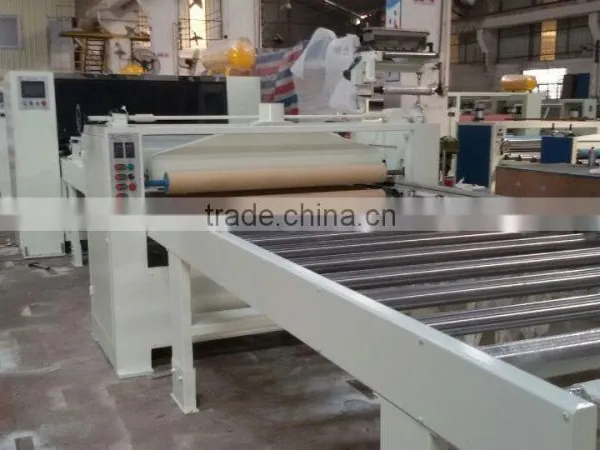

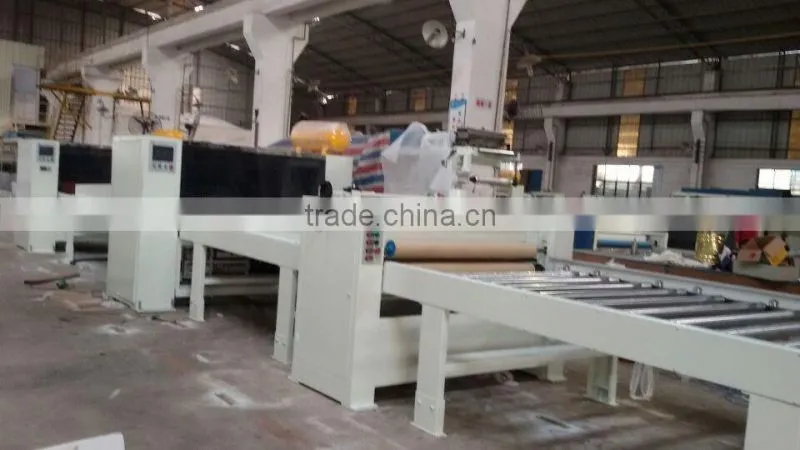

PUR Flat Laminating Production Line Machines

PUR Flat Laminating Production Line Machines

(Three-roller glue spreader, complete cover for prevent dust)
1. Working table with conveyor roller.
2.Dust cleaning is for remove the dust and small article on the plywood board before do the gluing.
3.Panel preheating oven that for heating the panel before gluing, cause as the gluing using PUR hot melt, it
can prolonging the working time of gluing adhesive.
4.Single side glue spreading,, the dosing roller are oil heating, which precise heating element which create a
stable and equality temperature, combine with melting tank that machine are more capability.
5.Semi-auto cover film placing are action manually, which suitable for different side of panel and
Cover film, mainly waste of material. Easy and flexibility.
6.Tow groups roller presser that for giving the pressure to the three layer material, pressure can be
adjust, with expanding shaft and powder bake for do the film lamination.
7. Working talbe for out feed conveyor roll.

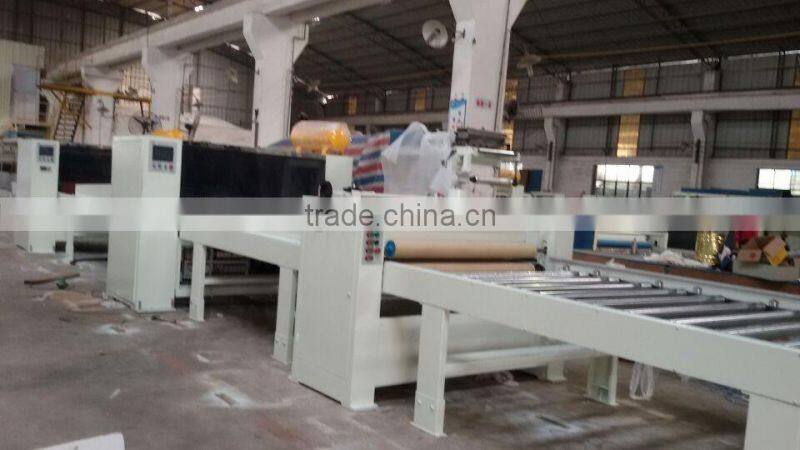

HY-PUR-1400 PUR Single side High gloosy laminatino line: : : :
;
Side view
PUR LAMINATING WOO DWO RKING MACHINE
1 2 3 5 7 4 6
1.Panel in feeder with conveyor:
Conveyor roller:φ90×1200, chromeplate;
Feeding roller: φ90×1200;
Transmission supply by brushing machine;
2.Brushing machine :
Transmission power:1.5KW;
Brushing power:1.1KW;
Brushing roller:φ190×1350;
Pressing roller:φ120×1350;
3.IR heating oven with conveyor :
Heating power:27KW;
Conveying roller:φ90×1200;
Transmission power supply by brushing
machine;

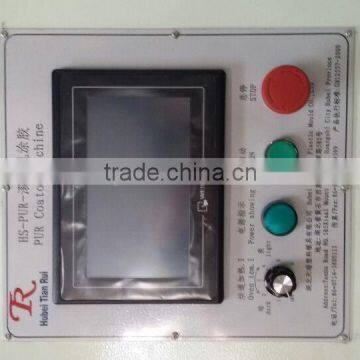

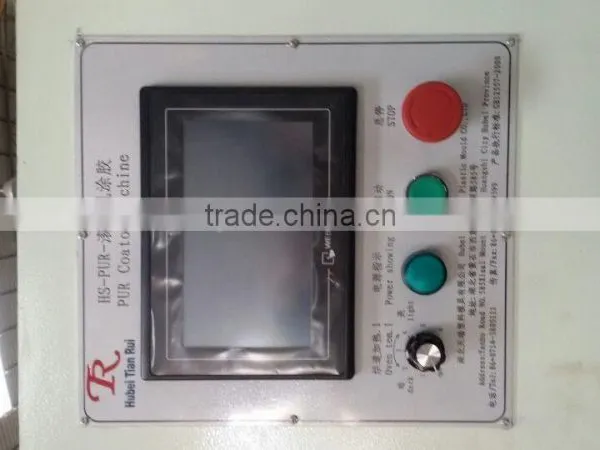

4.PUR Glue spreader :
Transmission power:3×1.5KW+2x0.75KW;
Upper roller lifting power:0.37KWl;
Heating power:2×9KW(Oil heating);
Coating roller:φ240×1400,silicon rubber;
Dosing roller: φ216×1400,Surface ceramics;
Down roller:φ240×1400,chromeplate surface;
5.Cover film placing unite :
Conveyor roller:φ90×1200
Transmission power supply by roller laminator
6 6 6 6 Lipping roller press machine :
Transmission power: 4×1.5kw
Hydrualic power:1.5kw
Upper roller lifting power: 0.37kw
Heating power:2×9kw(Oil heating)
Laminating roller:φ320×1400,Silicon rubber;
Laminating roller:φ320×1400,chromeplate
PVC expand roller:φ100×1350,chromeplate;
Expanding shaft roller:(2pcs)
Magnetic powder brake: 50N.M(2 pcs)
With crane:0.9kw
7.Out feeding conveyor :
Conveyor roller:φ90×1200mm,chromeplate
Transmission power supply by laminater;
Working date:
Size of panel:1350mm×2440mm
Thickness of panel:5-40mm
Working speed:5-25m/min
Transmission power:19.34KW
Heating power:75 KW
Size of machine:15.4(L)×2.5(W)×2.9(H)
Inverter speed control for the hope line
Technical data:
PUR WOO DWO RKING MACHINE
Brushing machine Heating Oven PUR glue spreader
Cover film unite Lipping Roller pressor Roll expending shaft
HESSAN WOO DWO RKING MACHINE
Cover film placing unite for thick film
PUR WOO DWO RKING MACHINE

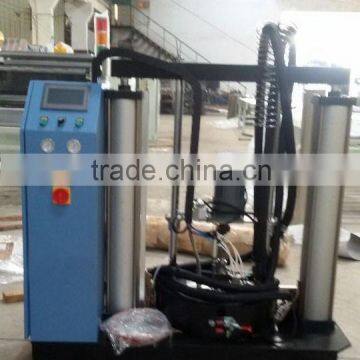

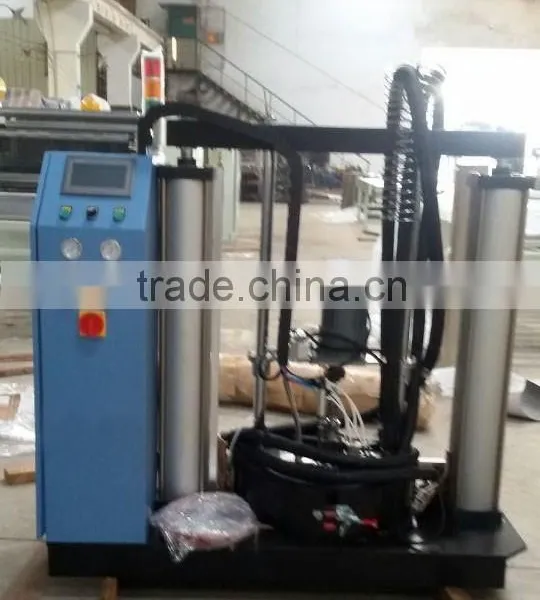

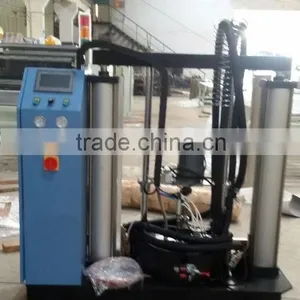

PUR Hot melt tank:
Working ability: 30kg/hour
Application pine: 2 pcs
Size: 1660x650x2240mm
Weight: 305kg
Main power: 14.6kw
Working voltage: 380V 50/60Hz
Air compressure: <8.0kg/cm 2
Motor rorating: 0.5-60/min
HESSAN WOO DWO RKING MACHINE
HESSAN WOO DWO RKING MACHINE

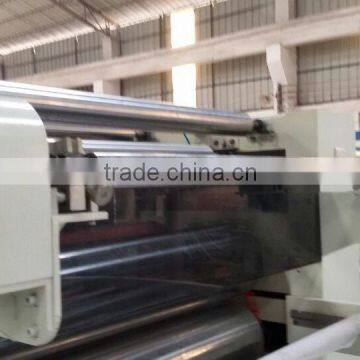

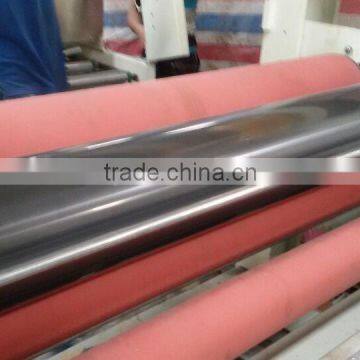

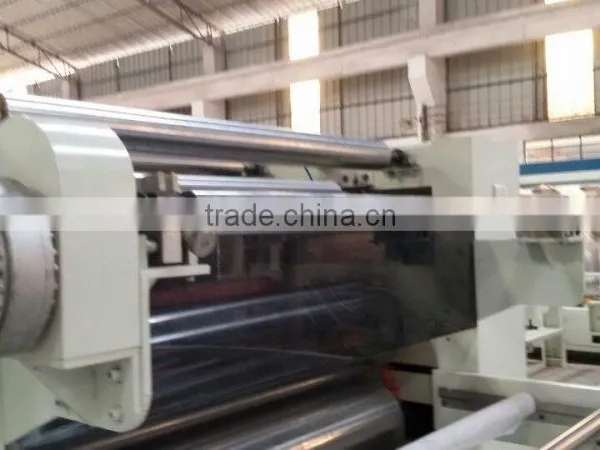

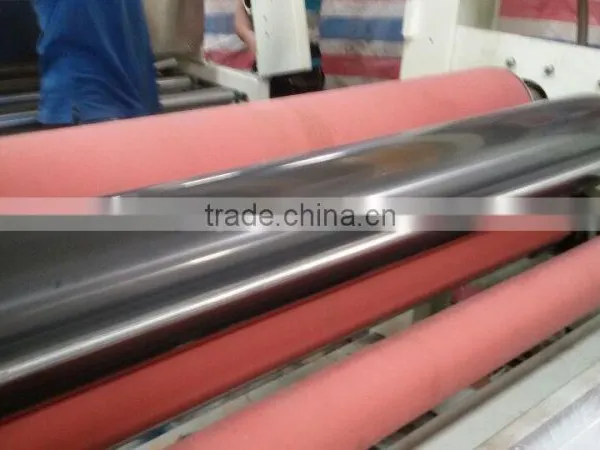

The Three-roller glue spreader
The finished surface of glue like a mirror glossy, and which can control
the glue 15-20g per spare meter. It's very prefect for thin pvc lamination.
