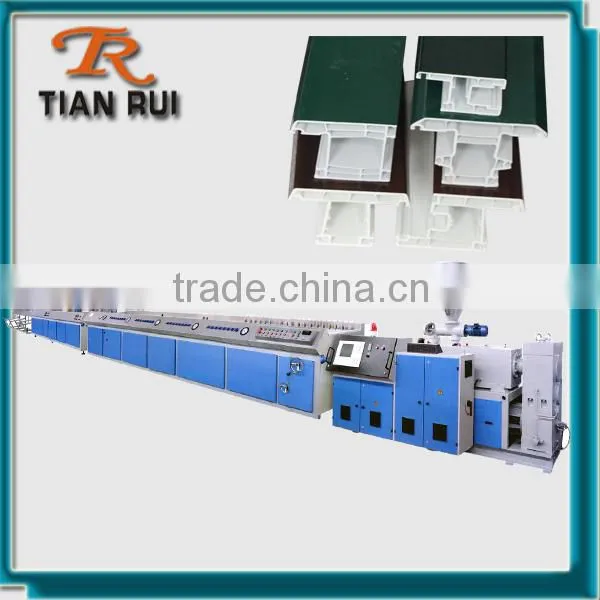

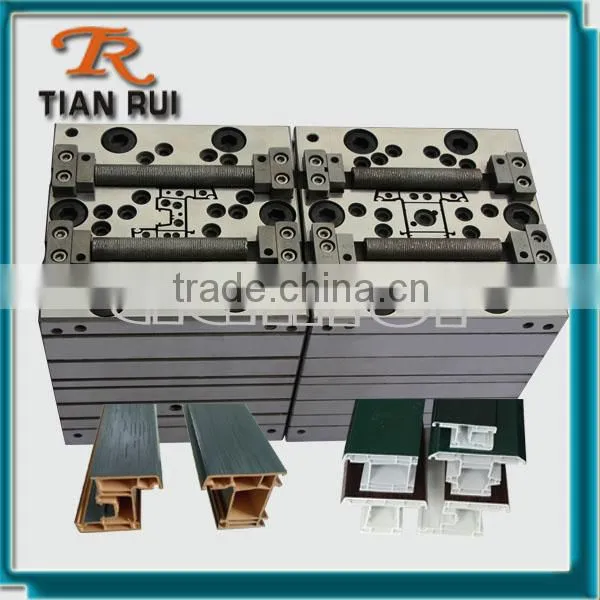

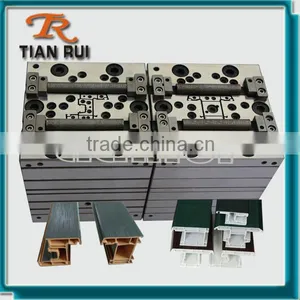

SJZ65/132-YF240 PVC profile Extrusion Line
¨ Raw material
PVC profiles
|
Extruder |
Raw material |
Output capacity |
Remarks |
SJZ65/132 |
PVC |
120-180kg/h |
New raw material |
The output capacity varies from the materials and the operation conditions
l Extrusion line speed: 0.5 – 4.6m/min (The line speed varies from the operation conditions)
l The center line height: 1050mm
l Operation direction: from right to left
l TianRui remains the right to improve the technology of the machines, if there is any modification in the future, Customer will not be informed..
List of line

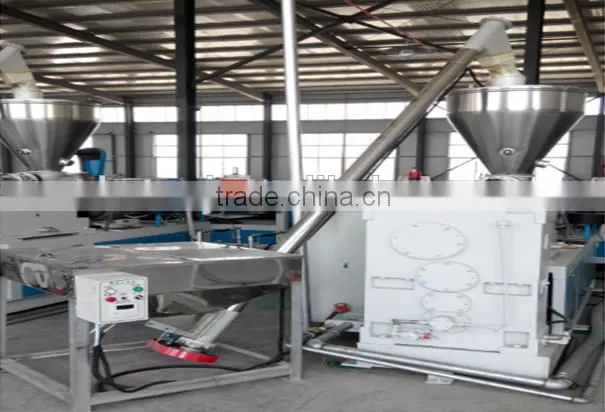

1.Spiral loader with hopper
Ø Hopper dimensions: 0.75M 3
Ø Loadertubesize: diameter 109mm
Ø Loader motor power: 1.5KW

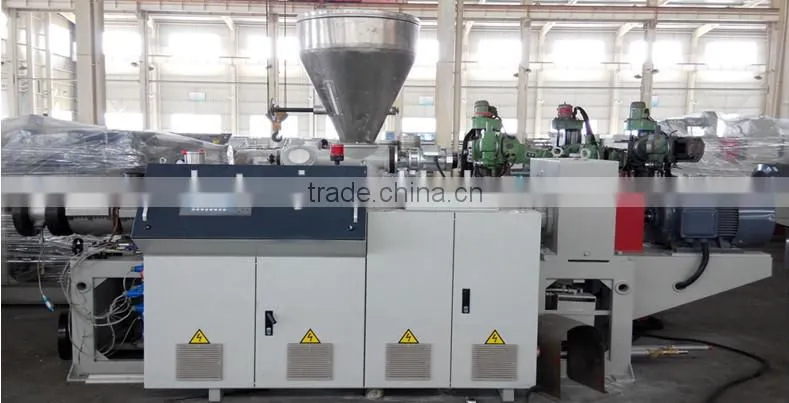

2. Conical twin-screw extruder 65/132
a) Screw & Barrel
- Ø Chinese famous brand from 1978
- Ø Screw diameter: 65mm, 132 mm
Ø Screw is specially designed for PVC with conical meshing and counter-rotating, speed 1 – 34.7rpm
Ø Screw material: 38CrMoAlA, with nitriding process of high temperature. The nitriding layer is 0,5-0,7mm, rigidity: HV740-940
Ø Temperature adjustment inside the screws: oil cooling circulation device
- Ø Barrel material: 38CrMoAlA, with nitriding process of high temperature. Thenitridinglayeris: 0,6-0,7mm, rigidity: above: HV 940
- Ø Heating zones: cast aluminum heating rings + stainless steel cover + cooling fan
- Ø 4 heating zones with total power: 21KW, temperature: 50 – 300℃
- Ø Cooling fan power: 0.55KW x 3 sets
- Ø Screw & Barrel with bimetallic processing
a) Feeding dosing device
Ø Stainless steel feeding hopper with force mixing
Ø 3-phase asynchronous motor of 0.55KW
Ø Feeding speed regulation by ABB brand or AB (Allen-Bradley) brand frequency convertor
b) Vacuum exhaust device
Ø Vacuum pump: 1 set
Ø Vacuum pump: 3-phase asynchronous motor with 1.5KW
Ø Vacuum degree: 0 – 0.075Mpa
c) Reducer
Ø High torque reducer
Ø Water cooling
Ø Gears with harden surfece
Ø Vertical reducer: motor connects directly with reducer by junction box
Ø Distributor: single axes torque transfer into double axes torque by super conical gears
d) The main motor
Ø Main motor: AC motor of 37KW, 380V, 50Hz
Ø Speed regulation: by ABB or AB (Allen–Bradley) brand frequency convertor
Ø Extruder dimensions: 4200 × 1500 × 2100mm
Ø The center line height: 1050mm
Ø Extruder weight: 4000kg
e) Oil temperature adjustment device
Ø Heating power: 6KW
Ø Oil heating temperature: 50-200 ℃
Ø AC asynchronous motor of 0.75KW
Ø Gear pump connects directly with motor. pumping output: 10L/min, working pressure≤0.2Mpa
Ø Heat exchanger medium: water
a) Controlling device
Ø SIEMENS PLC sensor monitor control
Ø Frequency converter: ABB or AB (Allen-Bradley) brand
Ø Contactor: SIEMENS
Ø Alarming system for emergency stop
Ø 5 heating zones prepared in advance for molds
b) Alarming system
Ø Alarming signal for current over loading
Ø Alarming signal and auto stop for screw dislocation
Ø Alarming signal for lack of oil

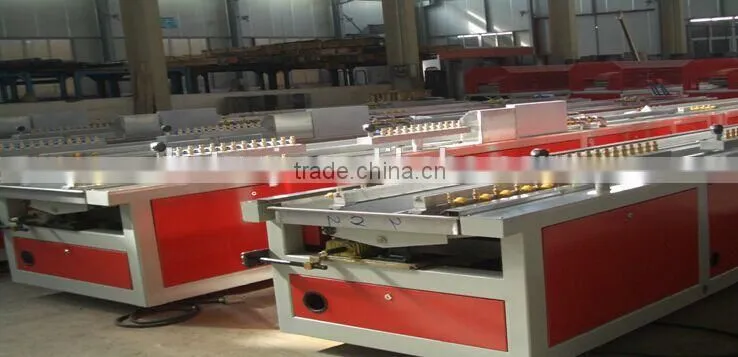

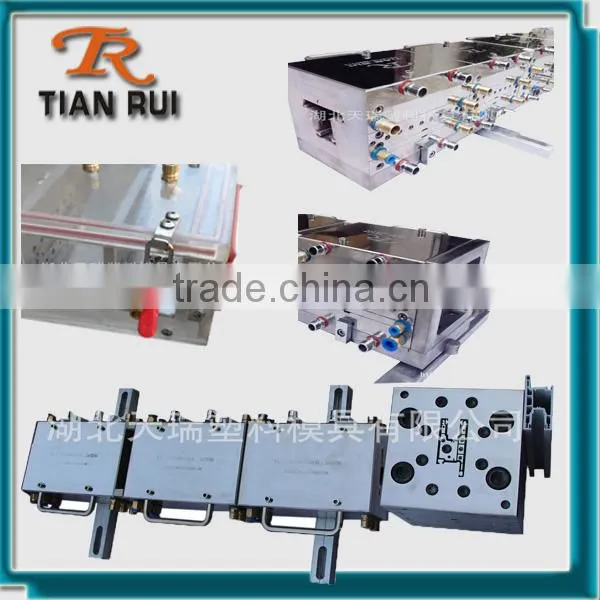

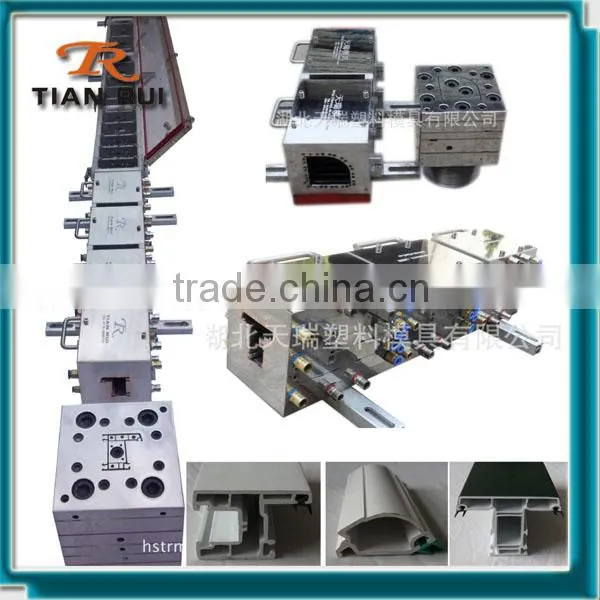

3. Vacuum calibration table
Ø Water tank made of stainless steel
Ø Table length: 6000mm
Ø Table width: 1100mm
Ø Distance between rails on the table: 320mm
Ø Vacuum pump: 5.5KW x 4 sets with silencer
Ø Vacuum degree: 0 – 0.09Mpa
Ø Water pump: 4KW x 1 set, 1.5KW x 1 set
Ø Vacuum air nozzles: 32 sets (yellow color)
Ø Water nozzles: 32 sets (blue color)
Ø Stainless steel water tank, rails made of cast aluminum with oxidation processing
Ø Electrical cabinet and panel are protected by waterproof film
Ø Blower for product drying: 0.75KW
Ø Calibration table connects with haul-off unit by lead screw, reduction motor is 0.75KW, moving is controlled by computer
Ø Calibration table up-down moving by 2 sets of lead screw with reduction motor
Ø Moving device for left-right: manuel adjust
