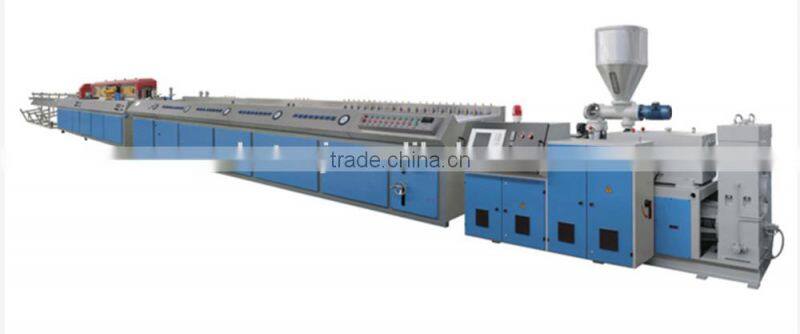

51 double screws WPC extrusion machines

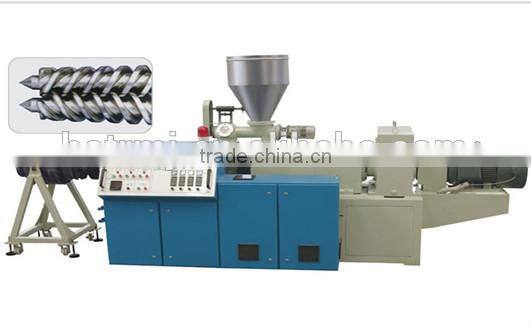

SJSZ 51 / 105 conical twin-screw extruder
1. Barrel: Screw Type 51 / 105 , screw material: 38CrMoAl, quantity: two (one set of spare screws added)
2. Gearbox distribution box is hardened with nitriding treatment. It
is made through high-precision grinding teeth. (Jiangyin Gearbox Factory)
3. Motor type: 380V-18.5kw inverter motor (Siemens motors)
4. Heating system: cast aluminum heater, Cooling: Cooling Fan
5.The barrel screw is equipped with vacuum systems. Yuhuan vacuum pumps.
6.Electric control: low-voltage electrical Schneider, Omron
temperature controller, inverter Taiwan TECO inverter control
7.Equipped with a master spring feeder, stainless steel bin,
stainless steel feeding tube.
Spiral loading machine
1. Stainless steel bin
2. Feeding Motor 2.2kw * 6 grade, stainless steel feeding tube 102mm, blade 2mm, 304 stainless steel 98 * 45, screw : 32 * 3mm seamless stainless steel tube.
3. Independent control of electrical appliances, automatic feeding, output: 2 t / h

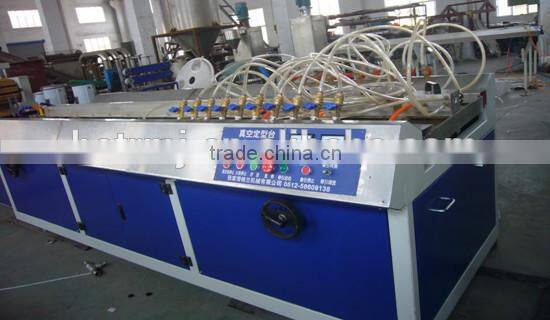

Vacuum calibration cooling unit
1.The vacuum calibrating table is in stainless steel material, 3 meters long.
2.Pump power: two sets of 4KW vacuum pumps, two sets of 4KW spray cooling water pumps
Crawler tractor
1. Traction motor power: 3kw,inverter motor
2. Crawler tractor: traction frame effective length is 1.5 meters
3. Speed regulation: Shenzhen Watson, speed; 0 ~ 10 m / min

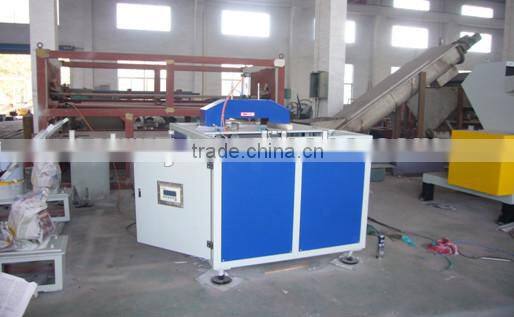

Automatic Cutting Machine
1.Cutting Motor Power: 380-1.5KW
2.Cutting machine works: pneumatic devices, cutting blade is used in alloy sand circular saw blades.
3. Effective cutting width: 300mm

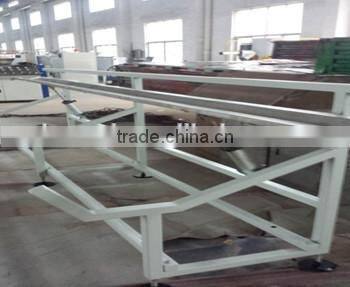

Stacker
1.Stacking frame is 4 meters long
2.Discharging vane is in stainless steel.
3. Work: pneumatic automatic control.
Value-added services of Hubei TianRui Mould:
Comprehensive cost control service;
Mould designing service;
Emergency manufacturing delivery service:;
Machine debugging Service;
Customer production training service;
The extrusion line can be custom made according to our clients' specified requirements !
If you need any further information, please be free to contact me, we will be very happy to receive your kind message.
Toby Cao
Hubei TianRui Plastic Mould Co.,Ltd
Website: http://hstrmj.en.china.cn
Tel: 86-0714-3089139
Mobile: 86-18772354222
MSN: 505917239 at
QQ: 505917239
Skype: tr1369999
Whatsapp: + 86 187 7235 4222
Our pvc extrusion line is cost effective and you can't miss it.
