Rugged WPC Square Timber Extrusion Mould
- Shanghai Dalian Qingdao or negotied
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
PP Wood Plastic Profile Extrusion Tooling For Garden Chair
-
TianRui Composite Decking Mould Board Game
-
TianRui Wood Plastic Composite Flooring Path Mould
-
Wood Plastic Composite Balcony Baluster Mold
-
WPC Panel Mould For Swimming Pool Outdoor Floorings Tiles
-
Wood Plastic Composite Mould For Arbor Slats Balcony Railings
Product Details
| Place of Origin | Hubei, China | Brand Name | TianRui | |
| Model Number | TRP037 | Shaping Mode | Extrusion Mould | |
| Product Material | Steel | Product | Household Product |
Product Description
Rugged WPC Square timber Extrusion Mould
specifation
| Product name | Rugged WPC Square timber Extrusion Mould |
| Size | Various types |
| Mould material | 3Cr17, 3Cr17MoNiV,or as per your request |
| Mould cavity | 1 or multi-cavity |
| Mould compnet | Die head, aluminum heating bands, calibrators and water tank |
| Feature | Selectable co-extrusion of different raw materials: PVC, PP, PE, ABS Selectable technology: low-foaming, high-foaming & substance co-extrusion Stable discharging, high efficiency, superior quality |
| Test service | Mould will be tested to get the satisfied sample before delivery |
| Service | Provide complete set of production process and technology transfer service |
| Lead time | 35-40 days |
| Package | Wooden case for exporting, each mould will be cleaned before packaging |
1.Advanced mirror polished surface treatment technology.
2.High quality 3Cr17 stainless steel material for wood plastic extrusion mould.
3.Configuration:one die head + four heating plates+three-segment calibrator +two-meter stainless water tank or as you require.
Our Advantages Of WPC Extrusion Mould
1.The mold structure differs according to the amount of the wood flour in the wood-plastic formulations to achieve the predefined technical specifications effectively;
2.The realization of the internal cooling of the die ensures the balance of the internal and external cooling. The least resistance design of styling segment, effectively reduces the forming resistance of styling segment , ensures the size of final products, reduces the abrasion of the mould and extends the using life of the mould.
3The adjustable pre-cooling of the die design guarantees the cooling of the products efficiently in the condition of high speed extrusion and makes it easy to adjust.
4. The technology of single-chamber, dual-chamber and multi-cavity is used to achieve efficient production.
5.The main components of the mould are dealt with special technology treatment and it doubles the service life of the mould.
6.Removable positioning device;
7.Assembling and disassembling are very convenient;

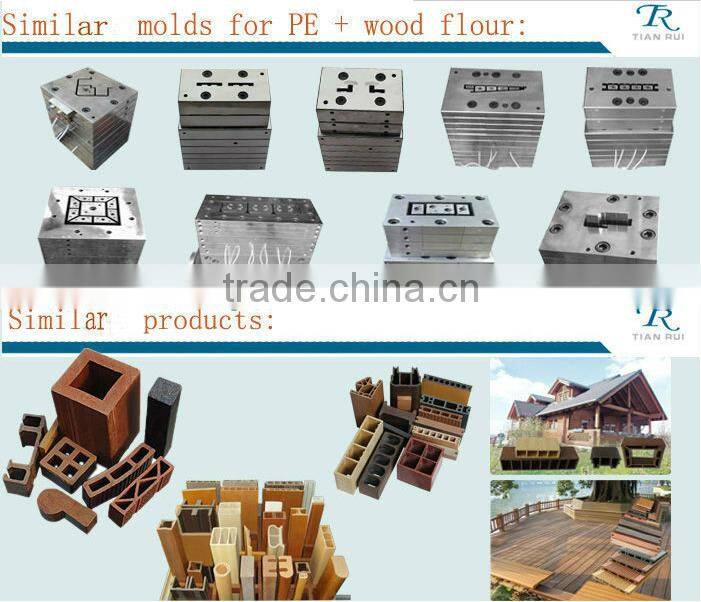

WPC mould Series:
PE + wood powder: PE wood plastic floor mould; PE wood plastic column mould; PE wood plastic square mould;
PE wood plastic fence mould; PE wood plastic rail mould: PE wood plastic fully coated co-extrusion mould; PE board room series mould, ect.
PVC + wood powder: PVC WPC great wall panel mould: PVC WPC door panel mould; PVC WPC wall panel mould, ect.
Application of samples
We always can manufacture the mould as your requirement,you can offer us your own CAD drawings,or we can design the drawings for you.
Value-added services
Comprehensive cost control service;
Mould designing service;
Emergency manufacturing delivery service:;
Mold debugging Service;
Customer production training service;
High Quality After-Sale Service
- Provide technical support
- One year free quality warranty
- Lifetime paid maintenance
Hubei TianRui Plastic Mould Co., Ltd is one of the earliest manufacturers and developers that specialize in plastic profile extrusion mould. The company has gathered a team of the earliest mould manufacturing elites who are professional in mould designing, manufacturing and testing and rich in experience.
1.we are the one of biggest WPC extrusion mould designers and manufacturer in Hubei.
2. our moulds account for the majority China market. Full range of specifications: floor, wall, ceiling, guardrail, door and window series etc.
3. Rich experience: over 20- years of experience in the mold industry with trustworthy skills, offering comprehensive services.
4. High-quality,high speed,high precision molds and reasonable prices.
5. The wood-plastic molds feature fine wood texture and environmental protection .
6.Different PVC,PE,PPR,ABS,Pc and other plastic pipe mould, wpc wood plastic composite mould.
7.We can provide a whole set to technical support including extruder election,formulas process and extrusion mould.
If you need any further information, please be free to contact me, we will be very happy to receive your kind message.
