Low Noise Fireplace Fan With Ball Bearing NMB for Fireplace Exhausting

Name: Low Noise Fireplace Fan With Ball Bearing NMB for Fireplace Exhausting
Brand: Anneng
Availability: InStock

FOB Price

US$ 19 - 22 / Piece

100 Pieces(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Power Source	Electric	Type	Ventilation Fan
Installation	Other, free standing	Material	Stainless Steel
Certification	CE, Other, CE, RoHS, CCC	Power (W)	30
Voltage (V)	220	Brand Name	Anneng
Model Number	BL152-15-2B	Place of Origin	Shanghai, China

Product Description

"We promise the products you will get are as true as you can see !"

Type: BL152-15-2B

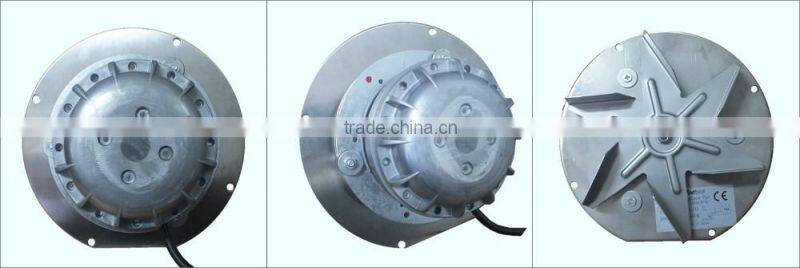

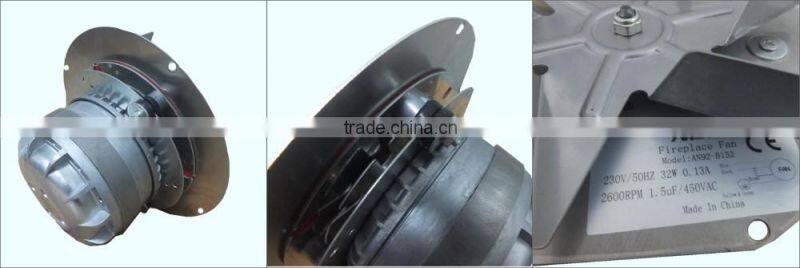

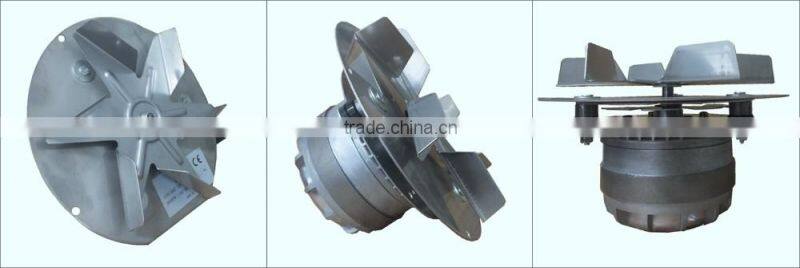

Product Pictures

( PS: ANNENG Reserved, Pirates Must Investigate. )

Product Datasheet

Specification
Model Type: BL152-15-2B
Phase	Single Phase
Rated Voltage	220 V
Frequency	50 Hz
Current	0.2 A
Speed	2500 RPM
Power	30 W
Diameter		152mm
Surface of Rotor		Spray Finishing
Material of Impeller		Stainless Steel
Direction of Rotation		CCS, seen on rotor
Type of Protection		IP44
Insulation Class		F
Mounting Position		Any
Operation Mode		S1
Motor Bearing		NMB Ball Bearing
Max. Permissible Ambient Motor Temp.		80°C
Min. Permissible Ambient Motor Temp.		-30°C

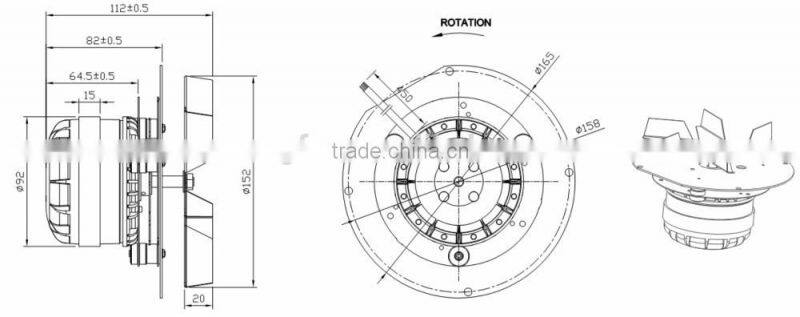

Drawing

Factory Display

Production Line

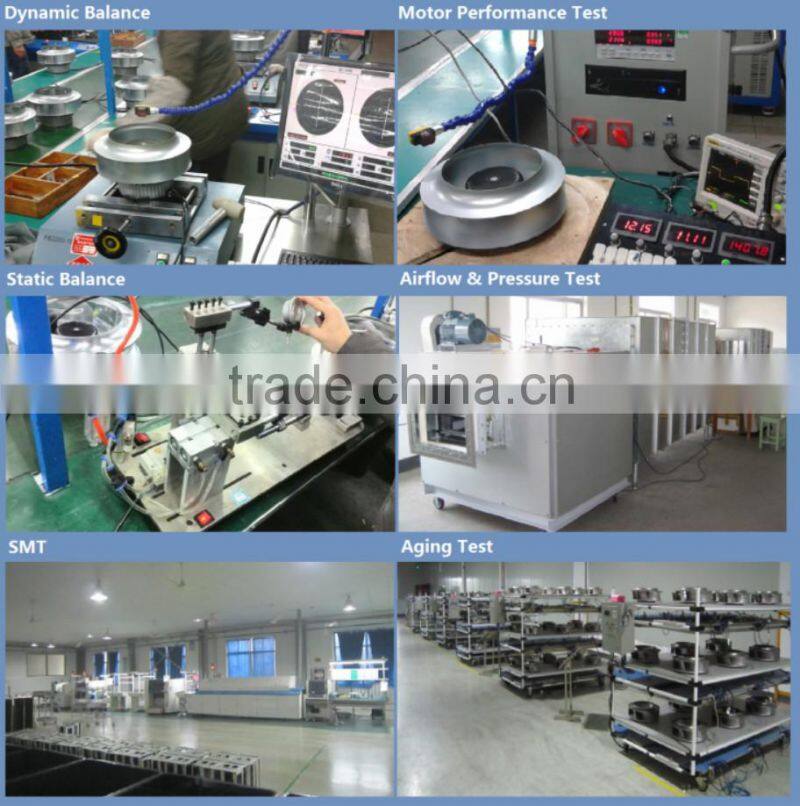

Product Process Inspection

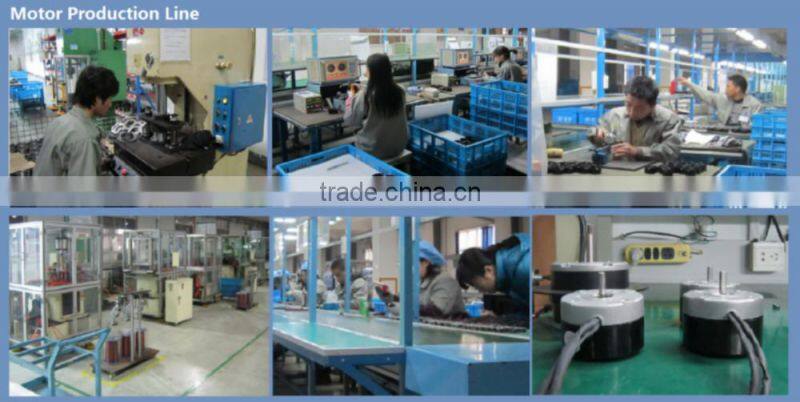

Motor Independent Production

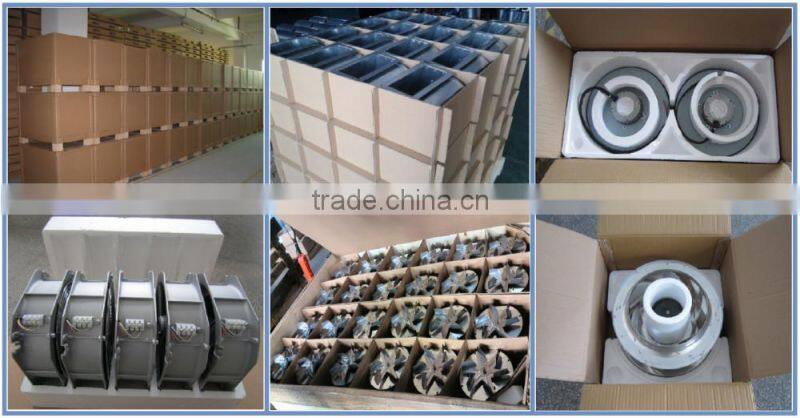

Packaging

1. for Sample, packing individually by foam carton;

2. for Mass, pallet package 120x100x120CM.

Certifications

Our Guarantees

Quality Guarantee

We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance.

Price Guarantee

The products are sold by our own factory directly. So the reason for low price is simple: no middlemen.

Delivery Time Guarantee

We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay.

Service Guarantee

We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
