Plastic High Efficiency 127m3/h 22W Mini Air Blower

Name: Plastic High Efficiency 127m3/h 22W Mini Air Blower
Brand: Anneng
Availability: InStock

FOB Price

US$ 12 - 15 / Piece

500 Pieces(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	DC	Blade Material	Other, Galvanized steel
Mounting	Free Standing	Place of Origin	Shanghai, China
Brand Name	Anneng	Model Number	R1G097-H043-01F
Power	22 W	Voltage	12V/24V
Air Volume	125 m3/h	Speed	2500 rpm
Certification	CCC, CE, ROHS	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

"We promise the products you will get are as true as you can see !"

Type: R1G097-H043-01F

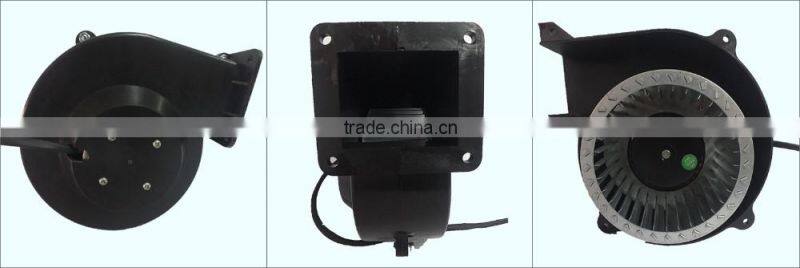

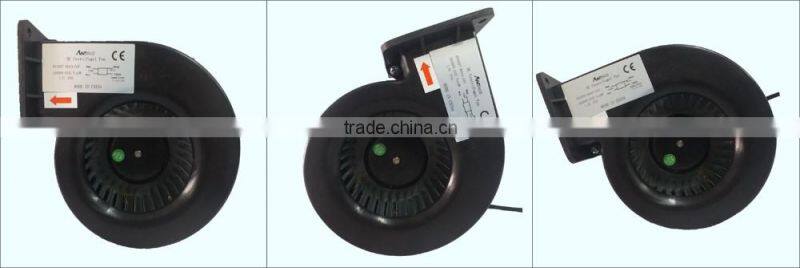

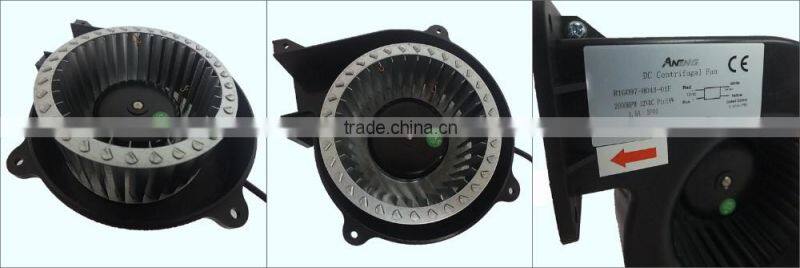

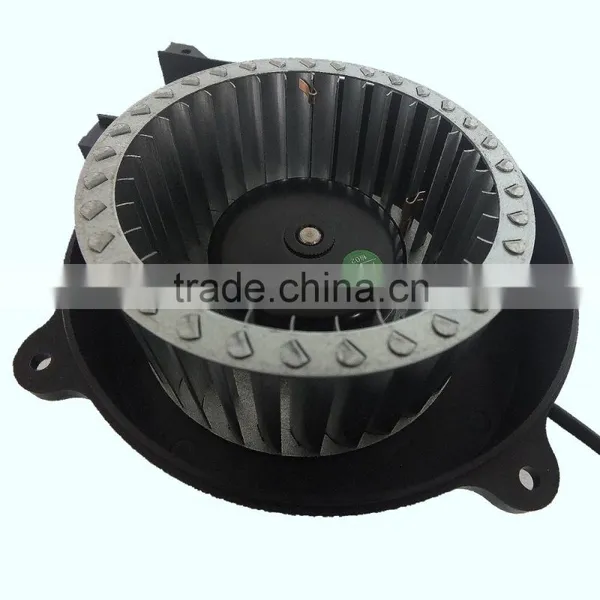

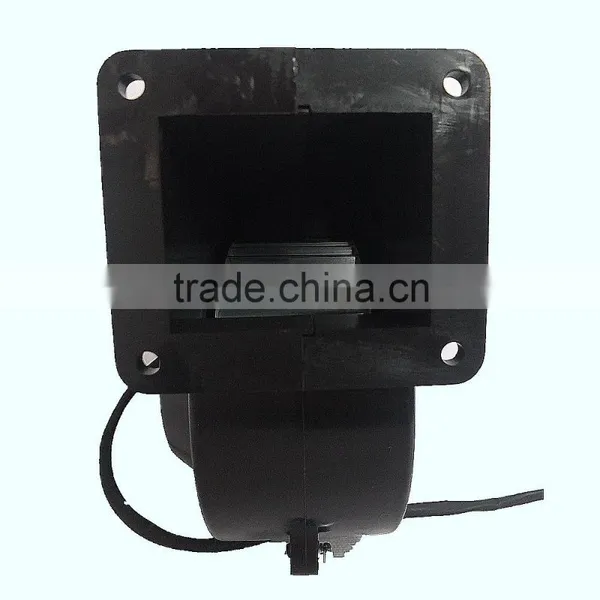

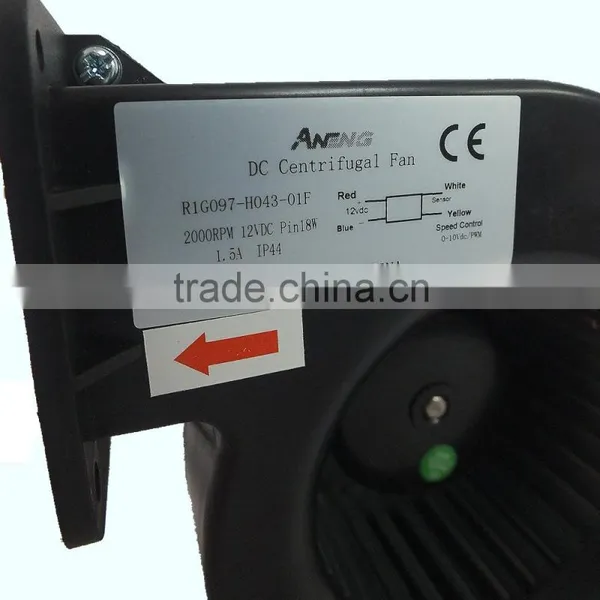

Product Pictures

(PS: ANNENG Reserved, Pirates Must Investigate.)

Product Datasheet

Specification
Model Type: R1G097-H043-01F / Motor Type: 53mm
Rated Voltage	Frequency	Rated Current	Input Power	Speed	Air Flow	Air Flow	Static Pressure
(VDC)	(Hz)	(A)	(W)	(RPM)	(CFM)	(m3/h)	(Pa)
12 / 24	/	1.84 / 0.92	22	2500	75	127	278
Details Description
Current Leakage		<=0.25mA
Operation Mode		continuous operation S1
Direction of Rotation		clockwise, seen on rotor
Mounting Position		at will
Insulation Class		"B" or "F"
Cable Length		450mm
Bearing		ball bearing (NMB)
Net weight		0.72kg
Surface of Rotor		electrophoresis
Number of Blades		/
Type of Protection		IP44 or IP55
Speed control		0-5v / PWM signal
Approval		CE
Operate Life		>=40,000hours
*Motor Protection Function
1. Soft Start (8 seconds)
2. Polarity Protection
3. Undervoltage Protection
4. Overvoltage Protection
5. Current Limit Protection
6. Over Current Protection
7. Blocking Protection
8. 3 Self Starting Function
9. Stepless Speed regulation Function
10. FG Speed Signal Output (open drain)

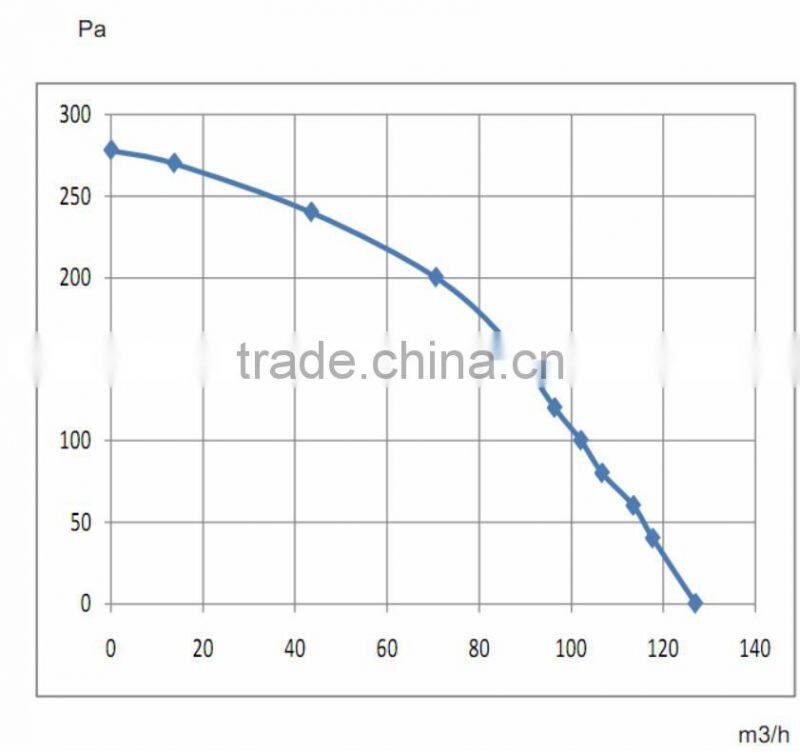

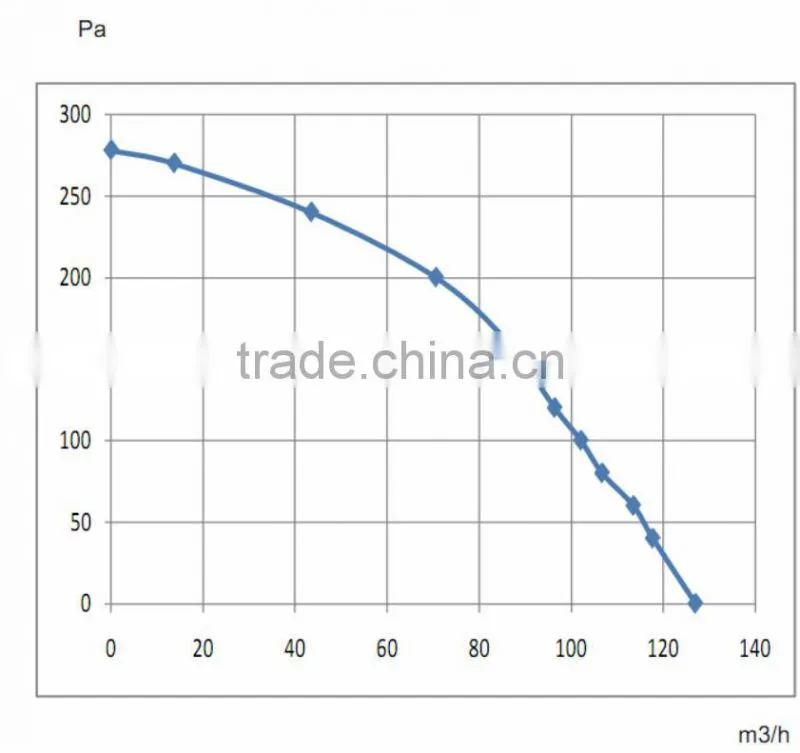

Characteristic Curves

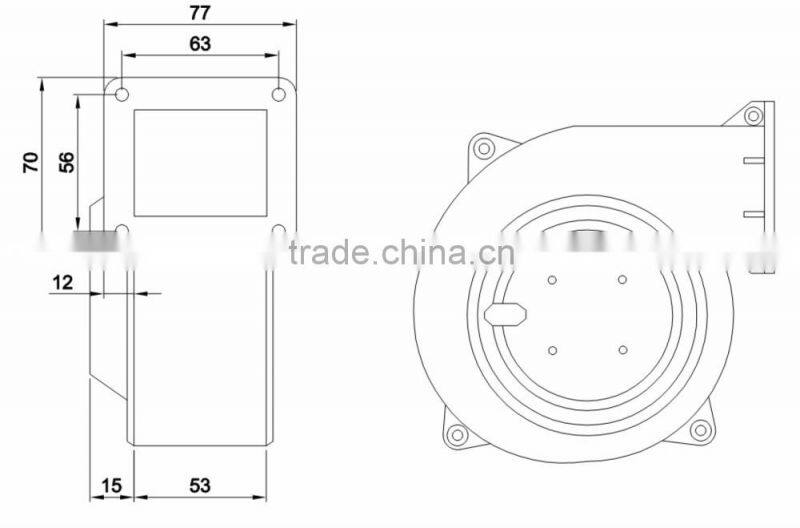

Drawing

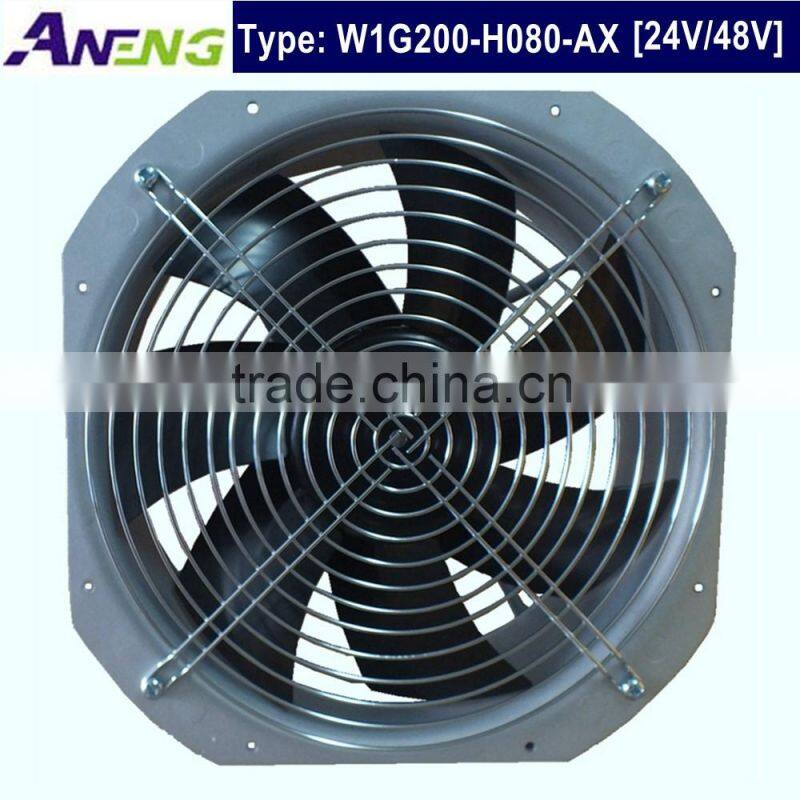

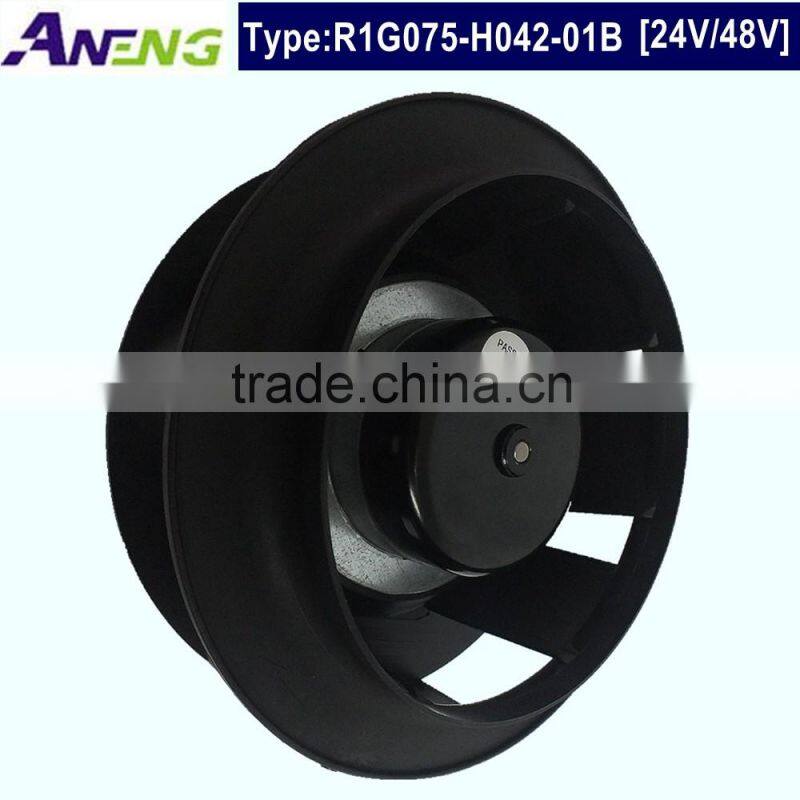

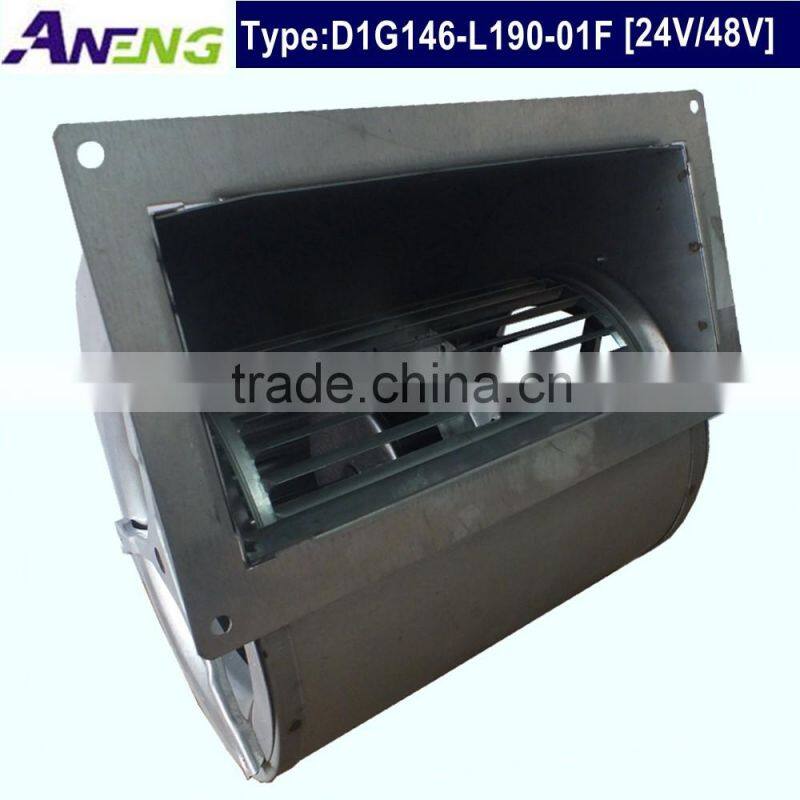

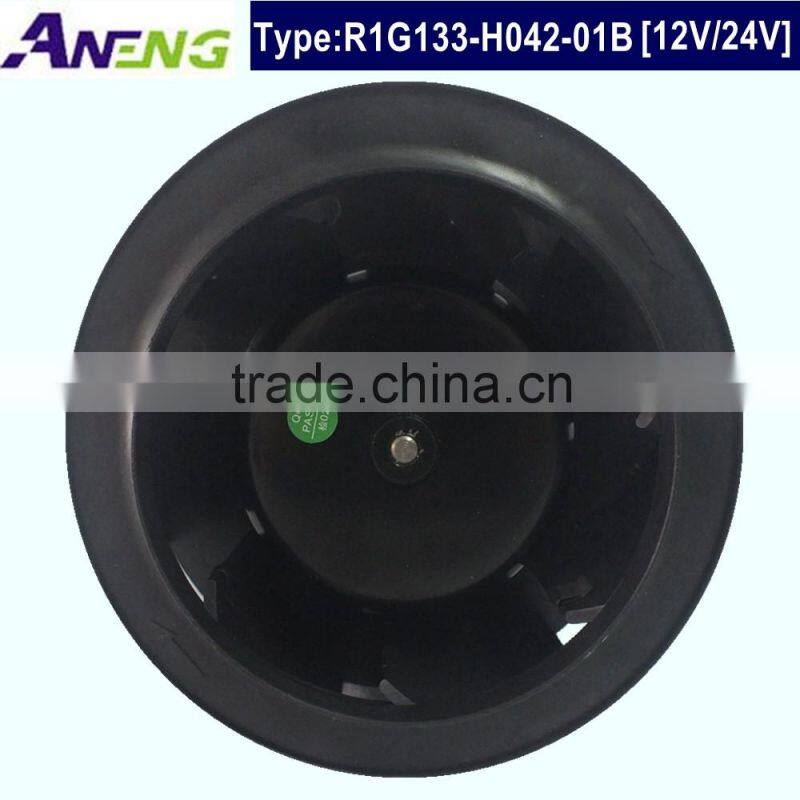

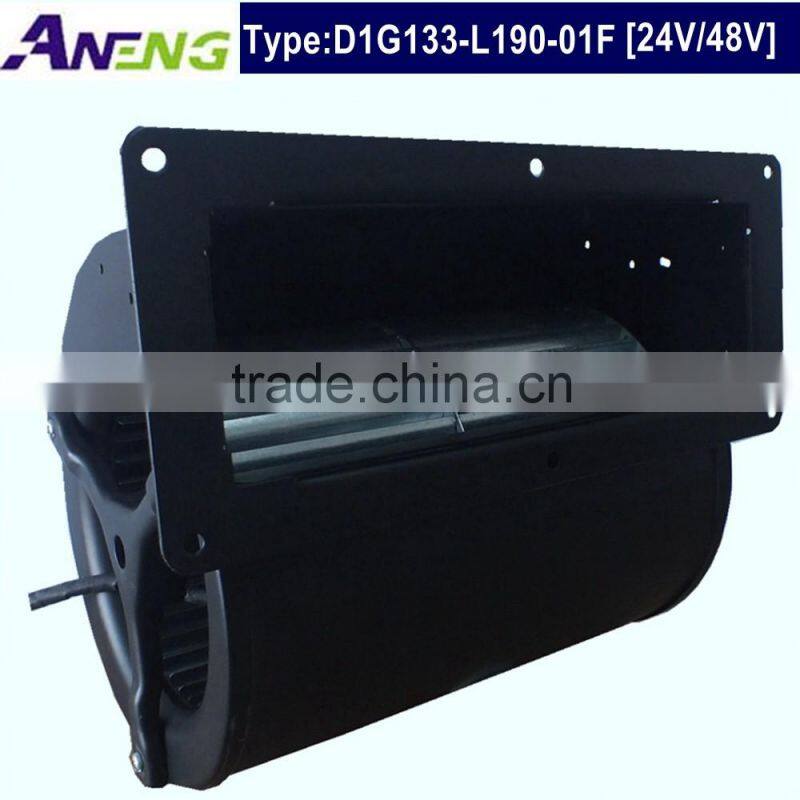

Other Related Products

Factory Display

Production Line

Product Process Inspection

Motor Independent Production

Packaging

1. for Sample, packing individually by foam carton;

2. for Mass, pallet package 120x100x120CM.

Certifications

Our Guarantees

Quality Guarantee

We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance.

Price Guarantee

The products are sold by our own factory directly. So the reason for low price is simple: no middlemen.

Delivery Time Guarantee

We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay.

Service Guarantee

We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.

Our Friends, Let's creat a beautiful future!
