48V High Flow 608m3/h Precision Air Conditioing Fan With 0-10V/PWM Control

Name: 48V High Flow 608m3/h Precision Air Conditioing Fan With 0-10V/PWM Control
Brand: Anneng
Availability: InStock

FOB Price

US$ 19 - 25 / Piece

100 Pieces(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Power Source	Electric	Type	Air Cooling Fan
Installation	Other, Free	Material	Plastic
Certification	CE, Other, CE, RoHS	Power (W)	34
Voltage (V)	48	Brand Name	Anneng
Model Number	R1G175-H042-01B	Place of Origin	Shanghai, China

Product Description

"We promise the products you will get are as true as you can see !"

Type: R1G175-H042-01B

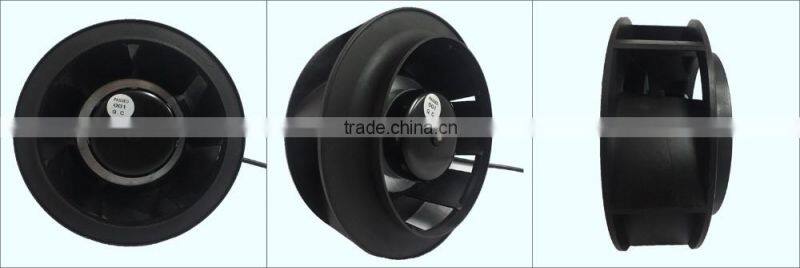

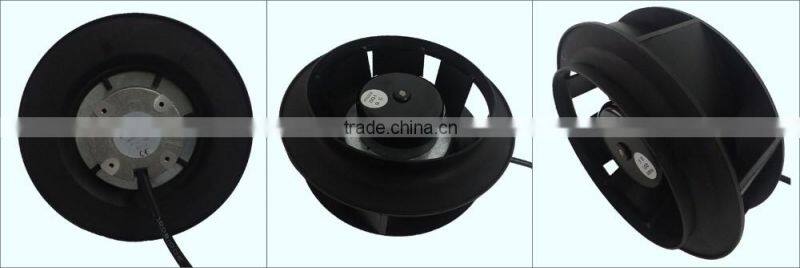

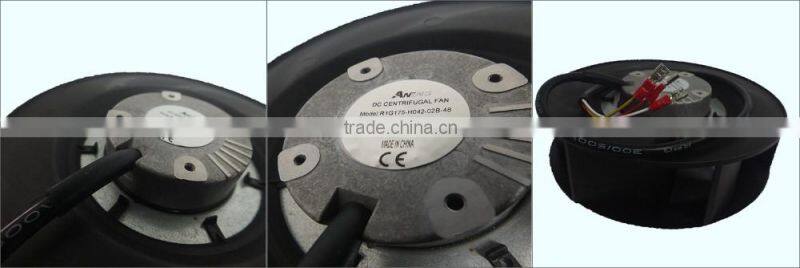

Product Pictures

(PS: ANNENG Reserved, Pirates Must Investigate.)

Product Datasheet

Specification

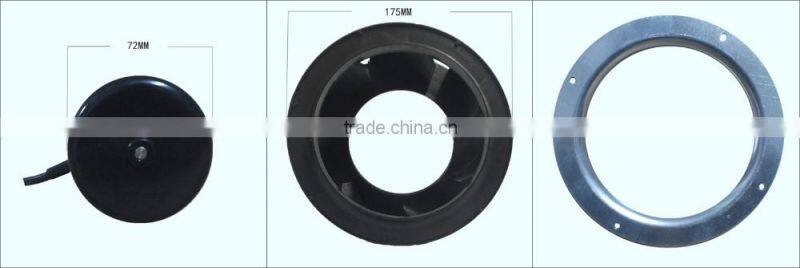

Model Type: R1G175-H042-01B / Motor Type: 72mm
Rated Voltage	Frequency	Rated Current	Input Power	Speed	Air Flow	Air Flow	Static Pressure
(VDC)	(Hz)	(A)	(W)	(RPM)	(CFM)	(m3/h)	(Pa)
24 / 48	/	1.45/0.7	34	3100	358	608	450
Details Description
Current Leakage		<=0.25mA
Operation Mode		continuous operation S1
Direction of Rotation		clockwise, seen on rotor
Mounting Position		at will
Insulation Class		"B" or "F"
Cable Length		450mm
Bearing		ball bearing (NMB)
Net weight		1.0kg
Surface of Rotor		electrophoresis
Number of Blades		"7"
Type of Protection		IP44 or IP55
Speed control		0-10v / PWM signal
Approval		CE
Operate Life		>=40,000hours
Noise		<65dB(a) 1 meter away
*Motor Protection Function
1. Soft Start (8 seconds)
2. Polarity Protection
3. Undervoltage Protection
4. Overvoltage Protection
5. Current Limit Protection
6. Over Current Protection
7. Blocking Protection
8. 3 Self Starting Function
9. Stepless Speed regulation Function
10. FG Speed Signal Output (open drain)
Characteristic Curves

Drawing

Other Related Products

Factory Display

Production Line

Product Process Inspection

Motor Independent Production

Packaging

1. for Sample, packing individually by foam carton;

2. for Mass, pallet package 120x100x120CM.
