"We promise the products you will get are as true as you can see !"

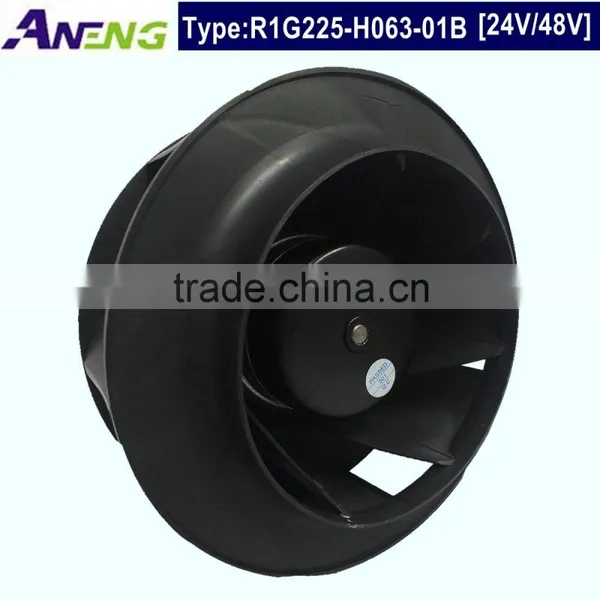

Type: R1G225-H063-01B
(PS: ANNENG Reserved, Pirates Must Investigate.)
| Specification | |||||||

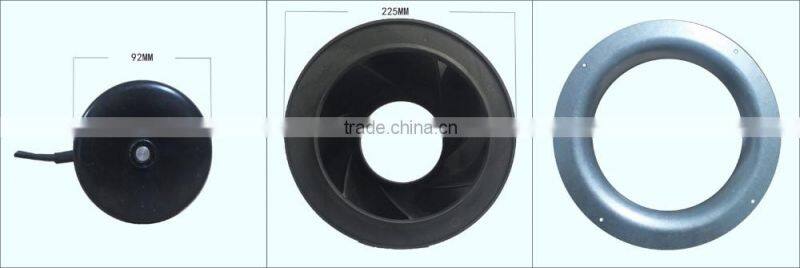

| Model Type: R1G225-H063-01B / Motor Type: 92mm | |||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure |
| (VDC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) |
| 24 / 48 | / | 4.24 / 2.12 | 103 | 2606 | 662 | 1125 | 480 |
| Details Description | |||||||
| Current Leakage | <=0.25mA | ||||||
| Operation Mode | continuous operation S1 | ||||||
| Direction of Rotation | clockwise, seen on rotor | ||||||
| Mounting Position | at will | ||||||
| Insulation Class | "B" or "F" | ||||||
| Cable Length | 450mm | ||||||
| Bearing | ball bearing (NMB) | ||||||
| Net weight | 2.2kg | ||||||
| Surface of Rotor | electrophoresis | ||||||
| Number of Blades | "7" | ||||||
| Type of Protection | IP44 or IP55 | ||||||
| Speed control | 0-10v / PWM signal | ||||||
| Approval | CE | ||||||
| Operate Life | >=40,000hours | ||||||
| *Motor Protection Function | |||||||
| 1. Soft Start (8 seconds) | |||||||
| 2. Polarity Protection | |||||||
| 3. Undervoltage Protection | |||||||
| 4. Overvoltage Protection | |||||||
| 5. Current Limit Protection | |||||||
| 6. Over Current Protection | |||||||
| 7. Blocking Protection | |||||||
| 8. 3 Self Starting Function | |||||||
| 9. Stepless Speed regulation Function | |||||||
| 10. FG Speed Signal Output (open drain) | |||||||
| Characteristic Curves | |||||||
|
| |||||||

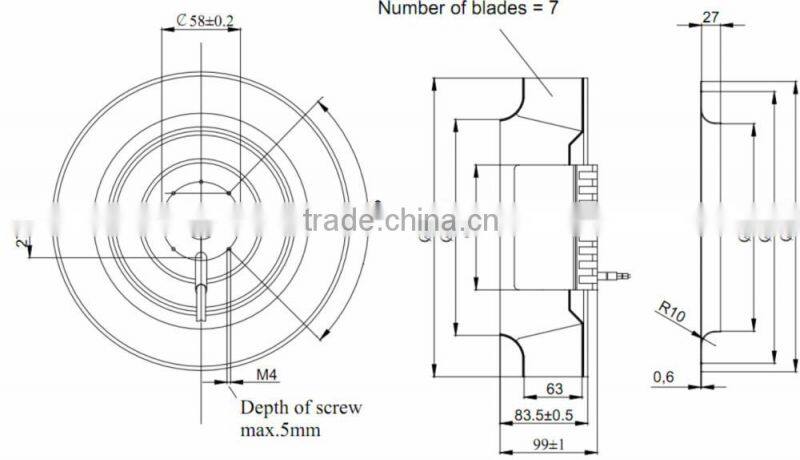

| Drawing | |||||||
| |||||||
Other Related Products
|
|
|
|
|
Factory Display
| Product Process Inspection |
|
| Motor Independent Production |
|
|
1. for Sample, packing individually by foam carton; 2. for Mass, pallet package 120x100x120CM. |
|
|
|
