 SMB32 SIM BANK with free SIM Server Softwar, pabx

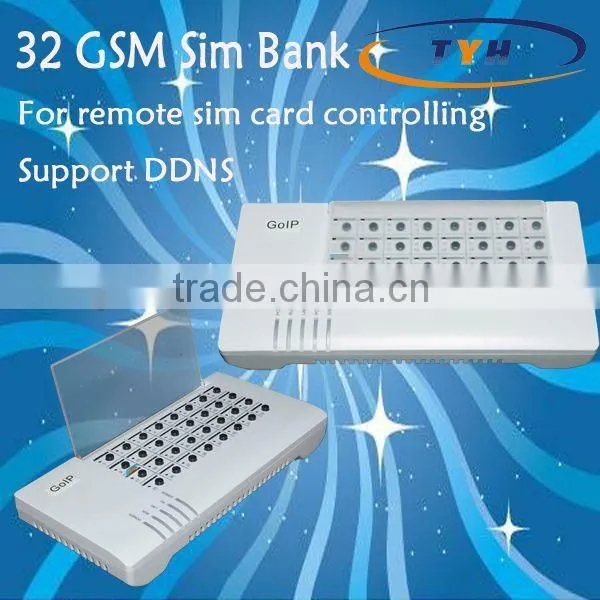

SMB32 SIM BANK with free SIM Server Software

Product introduction:

 Sim bank/gsm bank/sim server termination has 32 ports for sim cards. It was designed for remote and centralized management of sim cards. It was used together with Goip gateway, through it we could make more sim card works at the same time. Through sim bank we could divided the sim card into several groups, so it will be very convenient for us to management the sim cards which is working at the same time .



F.A.Q:

What is SIM?

• IC securely stores the service-subscriber key (IMSI)
• Encrypted communications for protection
• SIM cards are inserted in mobile devices

What is the Remote SIM ?

• Remote SIM separates SIM cards and mobile devices
• SIM cards are now inserted in SIM Bank
• SIM Emulators replaces SIM cards to communicate with mobile devices

Advantages of Remote SIM?

• Remote and Centralized Management of SIM cards
• Dynamic allocation of SIM cards
• No need to replace / recharge SIM cards on-site
• Hot swap of SIM Cards with no service interruptions
• Example: GoIP with Remote SIM support will no longer require on-site SIM Card replacement or recharge.   Management of a group of GoIPs can be achieved remotely, efficiently, and cost-effectively.

key features: Storage array for 32 SIM cards Hot swap Standalone operation to support up to 32 independent SIM connections Free SIM Server for management of SIM Banks and SIM cards (> 10K SIM connections) DDNS Group mode Territory definition Scheduler for SIM re-allocation

Basic function: Support both On-board SIM slots and built-in Remote SIM Emulator "PARK" to SIM Bank RS32 "PARK" to SIM Server SIM card reallocation  without power interruption 4-Channel GoIP (GoIP4) available 8-Channel GoIP (GoIP8) available Designed to work with our new goip gateway Installed in the existing SIM card slots so that SIM cards are installed in SIM Bank RS32 4-Port SIM Card Emulator available in Q4, 2011

Enhanced function: Free Server to manage SIM Banks and Remote SIM devices Management of over 10K SIM cards Re-allocation of SIM cards among Remote SIM devices SIM territory concept Programmable schedules for SIM card re-allocation Seamless re-allocation without call interruptions





Attention:work should depend on platform:softswitch and server,before buying,

pls make sure that you have platform.

Operating picture:





 A:System architecture(Independent SIM Bank):

As shown in the above figure, several GoIP devices (up to 32 ways) can be connected to the SMB32 through Internet. The SIM cards installed with the devices are all integrated to the SMB32 to be controlled and scheduled by the latter. (SIM Bank mode: server mode)



B:System architecture(through SIM Bank):

More than 10,000 SIM cards can be collectively scheduled and managed via the SIM Server. The planned tasks are allocated by the SIM Server (SIM Bank mode: client mode)



C:Exchange logic(through SIM Bank):
