SIM Card Remote Control Manager,SIM array box, SIM BANK

Specifications

1.32 SIM slots; VoIP SIP
2.Free SIM Server for management;
3.Independent SIM operation;
4.DDNS for private IP

SIM Card Remote Control Manager,SIM array box, SIM BANK



Product Name:  32 sim cards remote contorl manager



Model Name: SMB32









Product introduction:





Remote SIM Bank SMB32 is a device that holds 32 SIM cards that can be accessible remotely. So there will be a virtual SIM card placed on your GSM gateway at anytime you want. With SIM bank you can use all your SIM cards in one location (usually your core network) and manage easily.
The main idea is to separate GSM gateways with GSM modules and SIM cards: all SIM cards are in one place while GSM gateways are distributed and can be located even in different cities. SIM cards no longer need to be installed in GSM Gateway anymore.











Specification:







   Save on travel expense and time







   Save the cost of ‘one site’ technicians;







   Save the down time between maintenance







   Control and manager the system via office IP

















Product Features



key features: Storage array for 32 SIM cards Hot swap Standalone operation to support up to 32 independent SIM connections Free SIM Server for management of SIM Banks and SIM cards (> 10K SIM connections) DDNS Group mode Territory definition Scheduler for SIM re-allocation



Basic function: Support both On-board SIM slots and built-in Remote SIM Emulator "PARK" to SIM Bank RS32 "PARK" to SIM Server SIM card reallocation  without power interruption 4-Channel GoIP (GoIP4) available 8-Channel GoIP (GoIP8) available Designed to work with our new goip gateway Installed in the existing SIM card slots so that SIM cards are installed in SIM Bank RS32 4-Port SIM Card Emulator available in Q4, 2011



Enhanced function: Free Server to manage SIM Banks and Remote SIM devices Management of over 10K SIM cards Re-allocation of SIM cards among Remote SIM devices SIM territory concept Programmable schedules for SIM card re-allocation Seamless re-allocation without call interruptions

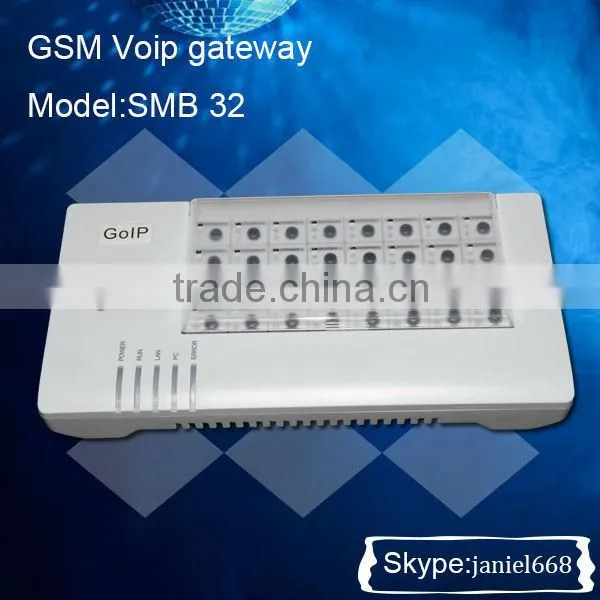

Product Pictures







FAQ:







Q1. What is SIM?
IC securely stores the service-subscriber key (IMSI)
Encrypted communications for protection
SIM cards are inserted in mobile devices



 Q2.What is the Remote SIM?
Remote SIM separates SIM cards and mobile devices
SIM cards are now inserted in SIM Bank
SIM Emulators replaces SIM cards to communicate with mobile devices



 Q.3 What’s the Advantages of Remote SIM?
Remote and Centralized Management of SIM cards
Dynamic allocation of SIM cards
No need to replace / recharge SIM cards on-site
Hot swap of SIM Cards with no service interruptions
Example: GoIP with Remote SIM support will no longer require on-site SIM Card replacement or recharge. Management of a group of GoIPs can be achieved remotely, efficiently, and cost-effectively









Application

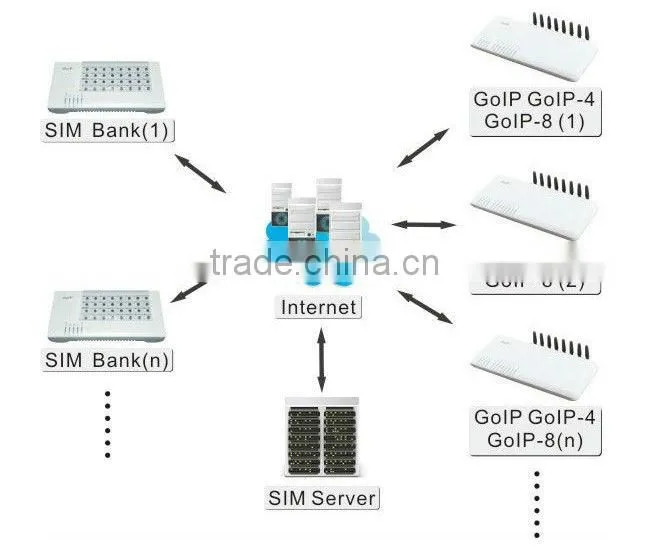

 A:System architecture(Independent SIM Bank):



As shown in the above figure, several GoIP devices (up to 32 ways) be connected to the SMB32 through Internet. The SIM cards installed with the devices are all integrated to the SMB32 to be controlled and scheduled by the latter. (SIM Bank mode: server mode)







B.System architecture(through SIM Bank)



More than 10,000 SIM cards be collectively scheduled and managed via the SIM Server. The planned tasks are allocated by the SIM Server (SIM Bank mode: client mode)







C:Exchange logic(through SIM Bank)





If you have any doubts or problems, pls contact me!
