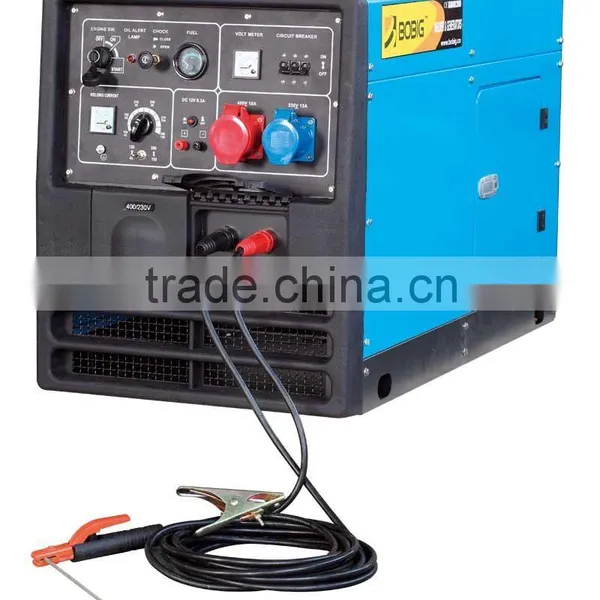

Welding Machine
US$ 2,500 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOBIG
Model Number:
BD300WE
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
BOBIG
Model Number
BD300WE
Output Type
AC Single Phase
Speed
3000/3600RPM
Frequency
50/60HZ
Rated Power
9KW
Rated Voltage
400 / 230V, 380 / 220, 220 / 120
Rated Current
300AH
Specifications
welding machineA. KAIMA, KOBOTA engine
B. 9kw, 300AH, 5mm
C. AIR COOLED
welding machine
| Model | BDW300SE |
| Rated Current (A) | 280 |
| Rated Voltage (V) | 21-31 |
| Welding Current Range (A) | 45-300 |
| Applicable Electrode (φ) | 1.2-5.0 |
| Phase | Single/Three Phase |
| Frequency (Hz) | 50/60 |
| Rated Output (kw) | 9.0/10.0 |
| Rated Voltage (V) | 110,120,220,230,240 / 380,400,415 |
| Power Factor | 1.0/0.8 |
| Model | BD290FE |
| Max. Output(HP) | 19 |
| Displacement(cc) | 954 |
| Type | Two cylinder ,4-stroke,air-cooled,direct injection, |
| Compression ratio | 19:01 |
| Starting System | Electric |
| Lubrication System | Pressure splashed |
| Cooling System | Air cooled |
| Fuel Tank (L) | 25L diesel |
| Oil Capacity (L) | 3.15 |
| Noise Level(at 7m) | 78 |
| Dimension(LXWXH)mm | 1200x680x760 |
| G.W (kg) | 240 |
