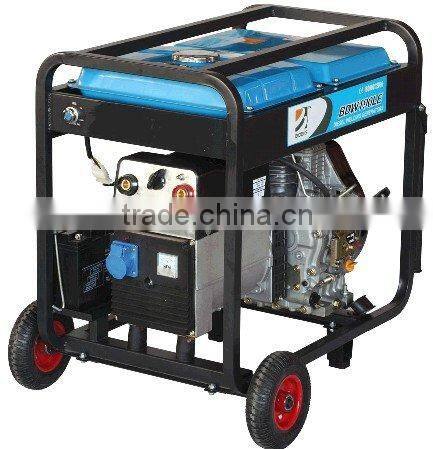

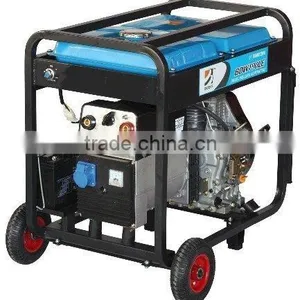

Welding Equipment

Name: Welding Equipment
Brand: BOBIG
SKU: 109131483
Availability: InStock

US$ 400 - 500 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

BOBIG

Model Number:

BD190LWE

Fujian Bobig Electric Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name BOBIG

Model Number BD190LWE

Specifications

welding equipment
190A,Copper winding,New italy technology alternator(copy Italian famous brand SINCRO)

welding equipment

190A Copper winding,New italy technology alternator(copy Italian famous brand SINCRO,controlled by reactor,exllcent welding application

Rated frequency (Hz)	50 60
Rated power(kW)	5.0 5.5
Rated voltage (V)	230 240/120
Rated current (A)	21.7 23/45.8
No.of phase	Single
Power factor (cosφ)	1
Weldling voltage at zero load (DC)(V)	60-70
Rated weldling current DC(A)	180
weldling voltage(DC)(V)	25-30
Weldling load continous ratio	60%
Weldlig current adjustment range(A)	50-190
Electrode φ(mm)	1.6-4.0
Rated speed (r/min)	3000 3600
Excitation mode	Self-excitation and constant voltage (AVR)
Recifying mode	IGBT+three-phase rectifying bridge (PWM)
Insulation grade	F
Pole number	2
Engine Model	BD186
Engine type	Single-cyinder,four-stroke,OHV,air-cooled
Cylinder NO,-bore×stroke(mm)	1-88×64
Displacement	389
Rated power[kW(Hp)/(r/min)]	10.0/300011/3600
Compression ratio	8.5:1
Rated rotation speed	3000 3600
lgnition system	T.C.I
Cooling system	Air cooled
Lubrication system	Splash
Starting system	X:Recoil starter E:Electric starter
Fuel type	Automotive unleaded gasoline
Lube oil Brand	CDgrade or SAE10W-30,15W-40
Capacity of cooling Water(L)	Without
Lube capacity (L)	1.1
Starting motor capacity (V-kW)	12V 0.4kW
