CUT160 Air Plasma Arc Cutting Machine Manual Cutter Inverter Cut Machine

CUT160 Air Plasma Arc Cutting Machine Manual Cutter Inverter Cut Machine thumbnail-1
CUT160 Air Plasma Arc Cutting Machine Manual Cutter Inverter Cut Machine photo-1
US$ 800 - 930 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Honghui
Contact Supplier Request Quote Chat Now
Zhangzhou Honghui Electrical Equipment Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Fujian, China
Brand Name Honghui
Model Number CUT 160
Voltage AC380V±15%
Rated Power 100w
Dimension(L*W*H) 780*350*625
Weight 50kg
Certification CCC CE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas



Product Description

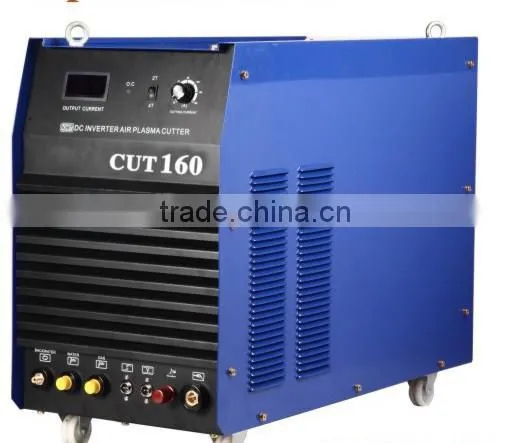

Features of CUT 160 air plasma cutting machine



1. Able to cut carbon steel, stainless steel, galvanized steel, copper and aluminum ect.

2.Output current is stable due to feed-back circuit controlled by our adcanced IGBT technology.

3. Double valve controlled for gas, easy arc starting option.

4. High or low voltage fluctuations, overheating and low air pressure are controlled by built-in protections

5. Cutting thickness from 1mm to 55mm




Parameters of CUT 160 air plasma cutting machine
Input Volatge (V) AC380V±15%
Frequency     (Hz) 50/60Hz
Rated Input Current(A) 41.2
No-load voltage  (V) 330
Output Current Range (A) 30-160
Rated Output Voltage (V)  144
Duty Cycle (%)  60
Diamension(mm) 780*350*625
No-load Loss(W) 80
Efficiency (%) 85
Arcing way 0.4-0.5
Cutting thickness(mm) 1-55
Power Factor 0.93
 Insulation Grade F
Housing Protection Grade IP21S
Net weight ( Kg) 50

Below are the accessories of CUT 160, the standard is

Torch A141(6m)      Earth clamp 3m, 16mm², 300A       Gas regulator
