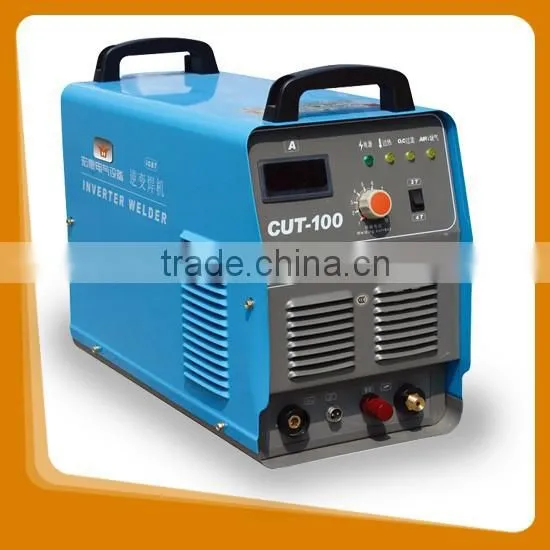

Features of CUT 100 air plasma cutting machine
1. Plasma ARC cutting function
2. Easy to cut thicker metals in a fast and economical way.
3. Suitable for cutting stainless steel, mild steel, aluminum and other metals
4. Easy to operate, smooth cutting performance
5. Cutting thickness from 1mm to 25mm
| Input Volatge (V) | AC380V±15% |
| Frequency (Hz) | 50/60Hz |
| Rated Input Current(A) | 23.1 |
| No-load voltage (V) | 310 |
| Output Current Range (A) | 20-100A |
| Rated Output Voltage (V) | 120 |
| Duty Cycle (%) | 60 |
| Diamension(mm) | 600*262*480 |
| No-load Loss(W) | 80 |
| Efficiency (%) | 85 |
| Arcing way | Non-contact arcing |
| Recommended air pressure(Mpa) | 0.3-0.4 |
| Cutting thickness(mm) | 1-40 |
| Power Factor | 0.93 |
| Insulation Grade | F |
| Housing Protection Grade | IP21S |
| Net weight ( Kg) | 30 |
By gaining the certificate requirements of the ISO 9001:2000, our company has well developed a full range of products which have been certified with the CE,CCC certifcates by the authority organization. The Products consist of ten series, which over 100 models in total:
Inverter MMA Welder Series
Inverter TIG DC Welder Series
Inverter MMA/TIG Welder Series
Inverter TIG AC/DC Welder Series
Inverter MIG Full Function Welder Series
Plasma Cutting Series
Inverter MIG/MAG Welder Series
Inverter IGBT TUBE MIG/MAG Welder Series
