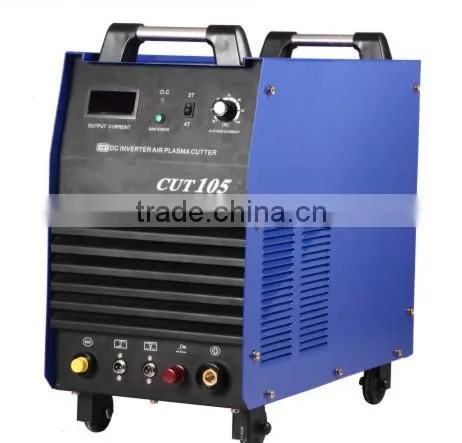

CUT105 Air Plasma Arc Cutting Machine Machine Cutter Inverter Cut Machine

CUT105 Air Plasma Arc Cutting Machine Machine Cutter Inverter Cut Machine thumbnail-1
CUT105 Air Plasma Arc Cutting Machine Machine Cutter Inverter Cut Machine photo-1
US$ 700 - 860 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Honghui
Contact Supplier Request Quote Chat Now
Zhangzhou Honghui Electrical Equipment Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Fujian, China
Brand Name Honghui
Model Number CUT 105
Voltage AC380V±15%
Rated Power 80w
Dimension(L*W*H) 600*290*535
Weight 36kg
Certification CCC CE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas



Product Description

Features of CUT 105 air plasma cutting machine



1. Dedicated to CNC cutting machine

2. IGBT inverter stable cutting quality.

3. High duty cycle allows cutting over

4. Longer durations

5. Cutting thickness from 1mm to 32mm




Parameters of CUT 105 plasma cutting machine
Input Volatge (V) AC380V±15%
Frequency     (Hz) 50/60Hz
Rated Input capacity(KVA) 15
No-load voltage  (V) 310
Output Current Range (A) 30-105A
Rated Output Voltage (V)  122
Duty Cycle (%)  80
Diamension(mm) 600*290*535
No-load Loss(W) 80
Efficiency (%) 85
Arcing way Non-contact arcing
Recommended air pressure(Mpa) 0.4-0.5
Cutting thickness(mm) 1-30
Power Factor 0.93
 Insulation Grade F
Housing Protection Grade IP21S
Net weight ( Kg) 36

Below are the accessories of CUT 105, the standard is

Torch P80(5m)      Earth clamp 3m, 16mm², 300A       Gas regulator
 CUT105 air plasma arc cutting machine machine cutter inverter cut machine







Our Services



  • 12 months warranty
  • Any after sale questions will be replied in 24 hours
  • Free installing and operating train



Company Information

By gaining the certificate requirements of the ISO 9001:2000, our company has well developed a full range of products which have been certified with the CE,CCC certifcates by the authority organization.  The Products consist of ten series, which over 100 models in total:



Inverter MMA Welder Series



Inverter TIG DC Welder Series



Inverter MMA/TIG Welder Series



Inverter TIG AC/DC Welder Series



Inverter MIG Full Function Welder Series



Plasma Cutting Series



Inverter MIG/MAG Welder Series



Inverter IGBT TUBE MIG/MAG Welder Series

 CUT105 air plasma arc cutting machine machine cutter inverter cut machine
